ASSEMBL Y

2 - KIT CONTENT

Kit overview

NOTICE: check the items part numbers this kit, please refer the Parts Catalogue. NOTE: the following table shows the items numbered in the installation instruction.

Item Description Quantity

2 JSS valve mounting bracket 1 3 EHPS steering valve 1 4 JSS cut - f valve 1 5 ° elbow 2 6 ° elbow 1 7 ° elbow 1 8 Straight connector 1 9 Straight connector 2 Shuttle tee 1 11 ° elbow 1 W asher 9x21x2.5 3 Bolt M8x20 3 Swivel run union tee 3 Hose (to steering cylinder) 1054 ( 41.5 ) 1 Hose (to steering cylinder) 1 128 ( 44.4 ) 1 Swivel branch tee 1 W asher 13.5x28x4 6 Nut M12 3 Bolt M12x50 3 Right - hand steering cylinder head tube 36.2 ( 1.4 ) 1 Block clamp 1 Hose clamp 1 Right - hand rod hose 435 ( 17.1 ) 1 Right - hand base hose 545 ( 21.4 ) 1 JSS load sense hose 922 ( 36.3 ) 1 Hose (to tank) 894 ( 35.2 ) 1 JSS pressure hose 880 ( 34.6 ) 1 Steering load sense hose 900 ( 35.4 ) 1 Cable tie JSS sensor mounting bracket 1 W asher 9x16x1.6 7 Bolt M8x10 4 Steering angle sensor 1 Nut M10 3 Steering pump isolator 1 Rubber bushing 4 Steel bushing 4 Lock washer M10x22 4 Bolt M10x30 4 O- ring 1 W asher 1 1x21x2.5 6 Bolt M10x105 6 ° elbow 1 Hose (cut - f valve tank) 965 ( ) 1 ° elbow 1 Joystick steering tube 203.1 (8 ) 1 Plug 2 W asher 10.6x25x6 2

Milsco armrest Grammer armrest bracket JSS frame harness Caution decal Bolt M8x20 Screw Fuse 5 A 1 1 1 1 3 4 1

3 - GENERAL INFORMA TION ###_1_###

Basic instructions

PLEASE READ THE COMPLETE INSTRUCTIONS BEFORE ARTING ASSEMBL

References right - hand and left - hand are determined standing the rear the machine and facing the direction travel.

NOTE: When referring the instructions for callout references, the numeric (example: (1) ) refers item (1) in the kit contents bill materials. The letter (example: (A) ) refers the component the unit, not a component in the kit contents bill materials. NOTICE: not tighten the hardware until instructed in the assembly instructions.

NOTICE: Be sure use the hardware specified when using tapped holes trying install a metric bolt in inch thread inch bolt in a metric thread will damage the threads.

NOTE: Install flat washers over all slotted holes unless truss - head carriage bolts are used. Install a lock washer all bolts unless a jam nut self - locking nut is specified.

NOTE: Install special hardened washers where specified.

4 - PRE-ASSEMBL Y

PREP ARING FOR ASSEMBL Y

Preparation - Pre - assemble

W ARNING

Crushing hazard! Engage the safety lock link before service transport. Failure comply could result death serious injury .

154A

Preparing

Lower the bucket / attachment the ground, install the transport / service link into the lock position and switch f the engine. Refer the chapter "Safety precautions" contained in the Operator's Manual.

Attach a "DO NOT OPERA TE" maintenance tag. This tag can applied the cab door .

RCPH10WHL063BAL 1

SP0043 2

Removal

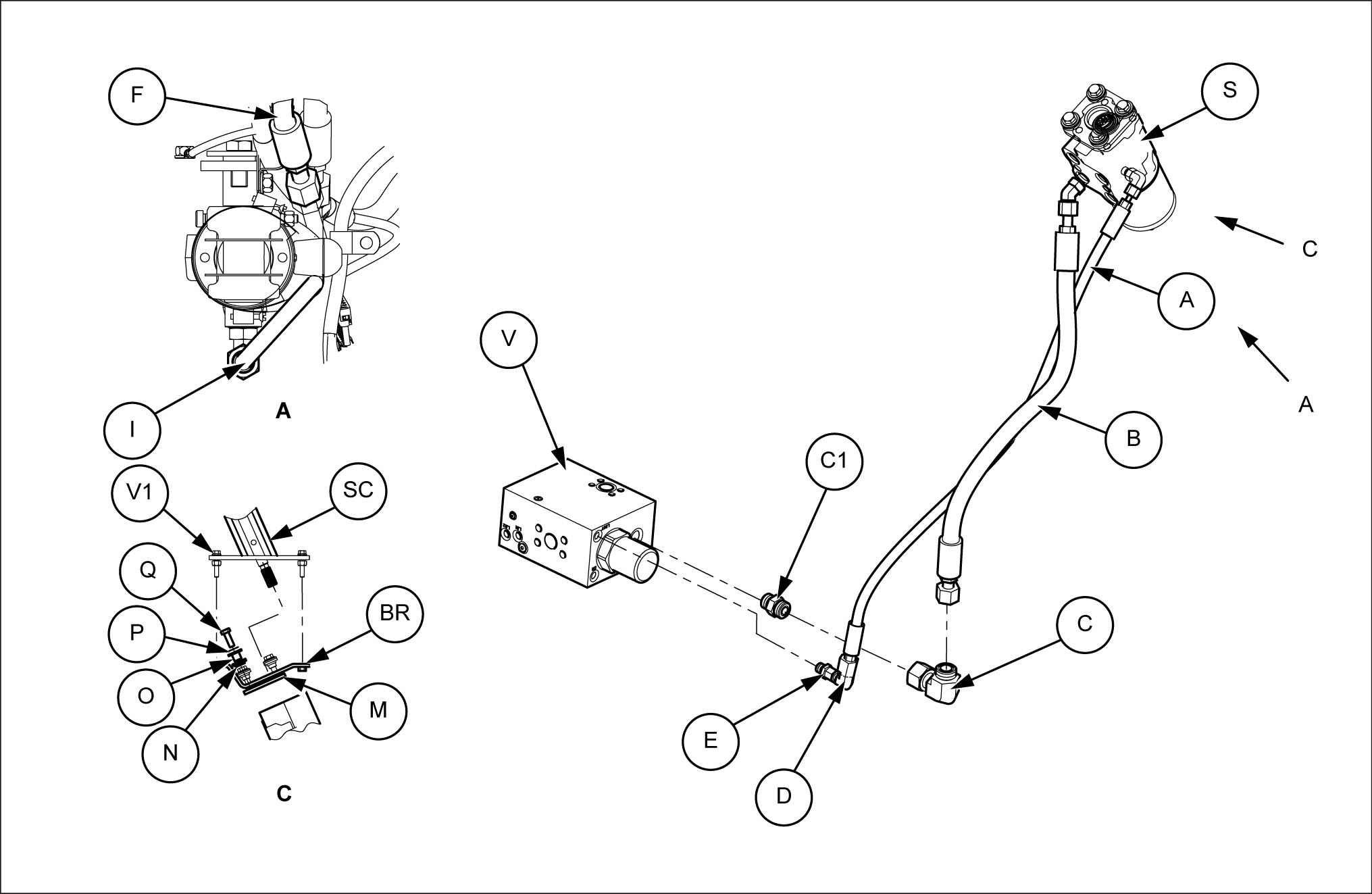

NOTE: MARK and LABEL all the various parts (electric connections, hydraulic connections, etc.) before disassembly operations in order facilitate all the reassembly . NOTE: for removal operations, refer figures 3 and 4.

Remove all dirt and grease under cab (orbitrol and priority valve area).

From load sensing line disconnect and remove the flex hose (A) from orbitrol valve (S) , the ° elbow (D) , and the straight connector (E) installed port LSST the priority valve (V) .

Disconnect the hose (B) and the ° elbow (C) from the connector (C1) installed the port the priority valve (V) . Discard the hose (A) , the connector (E) , the ° elbows (D) and (C) .

LEIL17WHL0410FB 3

Locate the right - hand steering cylinder area and remove the hose clamp (H) , the block (G) , and O- ring (R) .

Disconnect and remove the hose (L) , the union tee (T1) and then the head tube (I) from the right - hand steering cylinder (RH) .

Disconnect and remove the hose (F) , the union tee (T2) from the right - hand cylinder tube (Z) .

Discard the hoses (L) and (F) , the tees (T1) and (T2) , the tube (I) , the hose clamp (H) , the block (G) , and the O- ring (R) .

Under the cab compartment, loosen and remove the four fixing nuts and disengage the orbitrol valve (S) from the steering shaft (SC) .

Remove the four bolts (Q) , the lock washers (P) , the steel mounting bushings (O) , and the rubber bushings (N) unfix the bracket (BR) from the orbitrol valve (S) . 10. Remove the steering isolator (M) .

Discard the four bolts (Q) , the lock washers (P) , the steel bushings (O) , the rubber bushings (N) , the steering isolator (M) .
