Install the hose (15) the ° elbow (5

Next Article
Install the JSS pressure hose (28) the ° elbow

Install the JSS pressure hose (28) the ° elbow

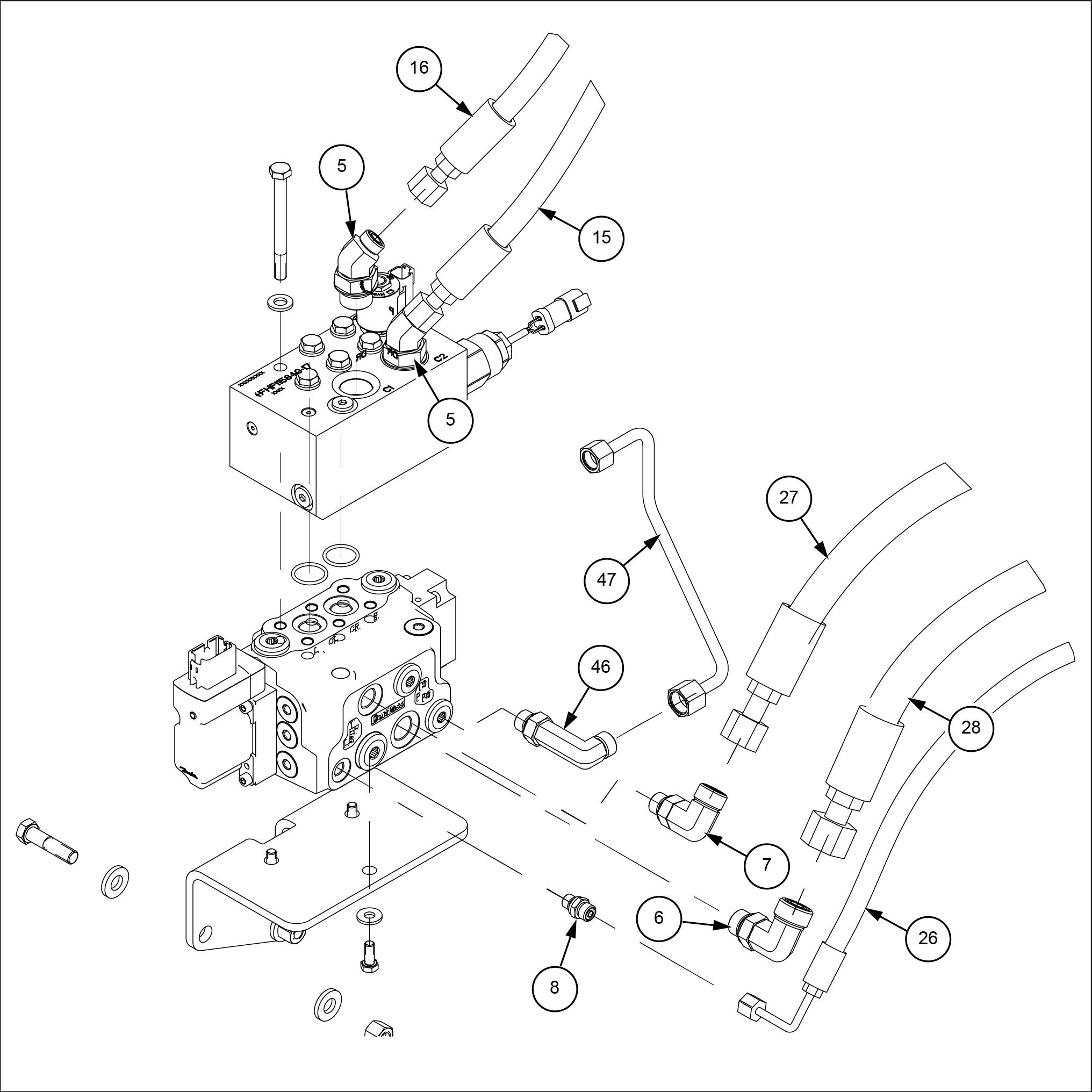

10. Install the JSS load sense hose (26) the straight connector (8) . 1 Install the JSS pressure hose (28) the ° elbow (6) . 12. Install the hose (27) the ° elbow (7) . 13. Install the joystick steering tube (47) the ° long elbow (46) . 14. Install the hose (15) the ° elbow (5) . 15. Install the hose (16) the ° elbow (5) .

LEIL20WHL1422GB 4
