Install the joystick steering tube (47) the ° long elbow (46) .
from CNH Joystick Steering with Standard Hydraulic Steering 921G W230D Wheel Loader Instructions Manual

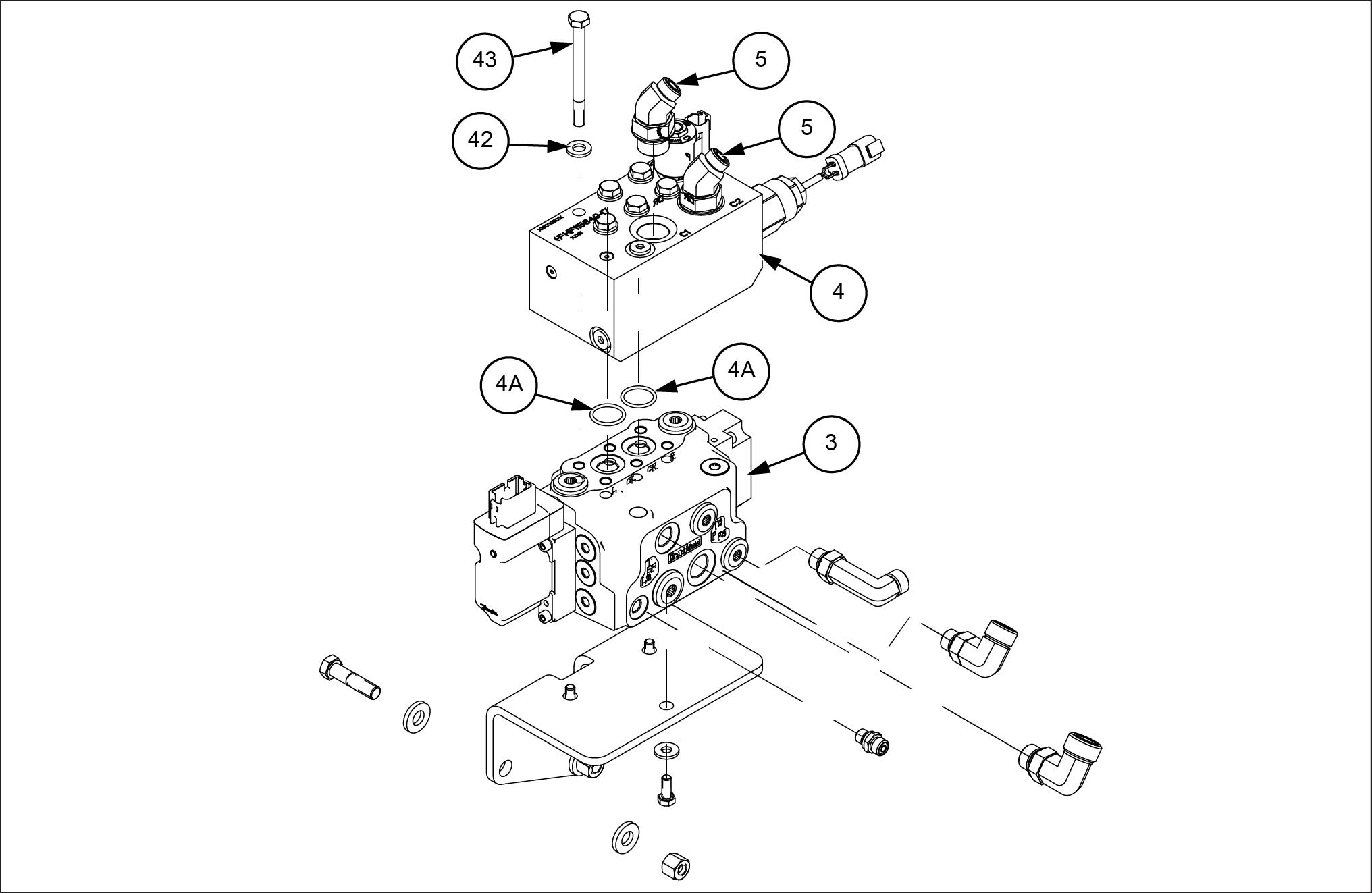

Install the o- rings (4A) supplied with the JSS cut - f valve (4) the and the ports the steering EHPS valve (3) . Install the JSS cut - f valve (4) the steering EHPS valve (3) . Secure with the six bolts M10x105 (43) and the six washers 1 1x21x2.5 (42) . Install the ° elbows (5) the and the ports the JSS cut - f valve (4) .
LEIL20WHL1421FB 3
