01 DOUBLE BATTERY

131

01 p1 2/2019

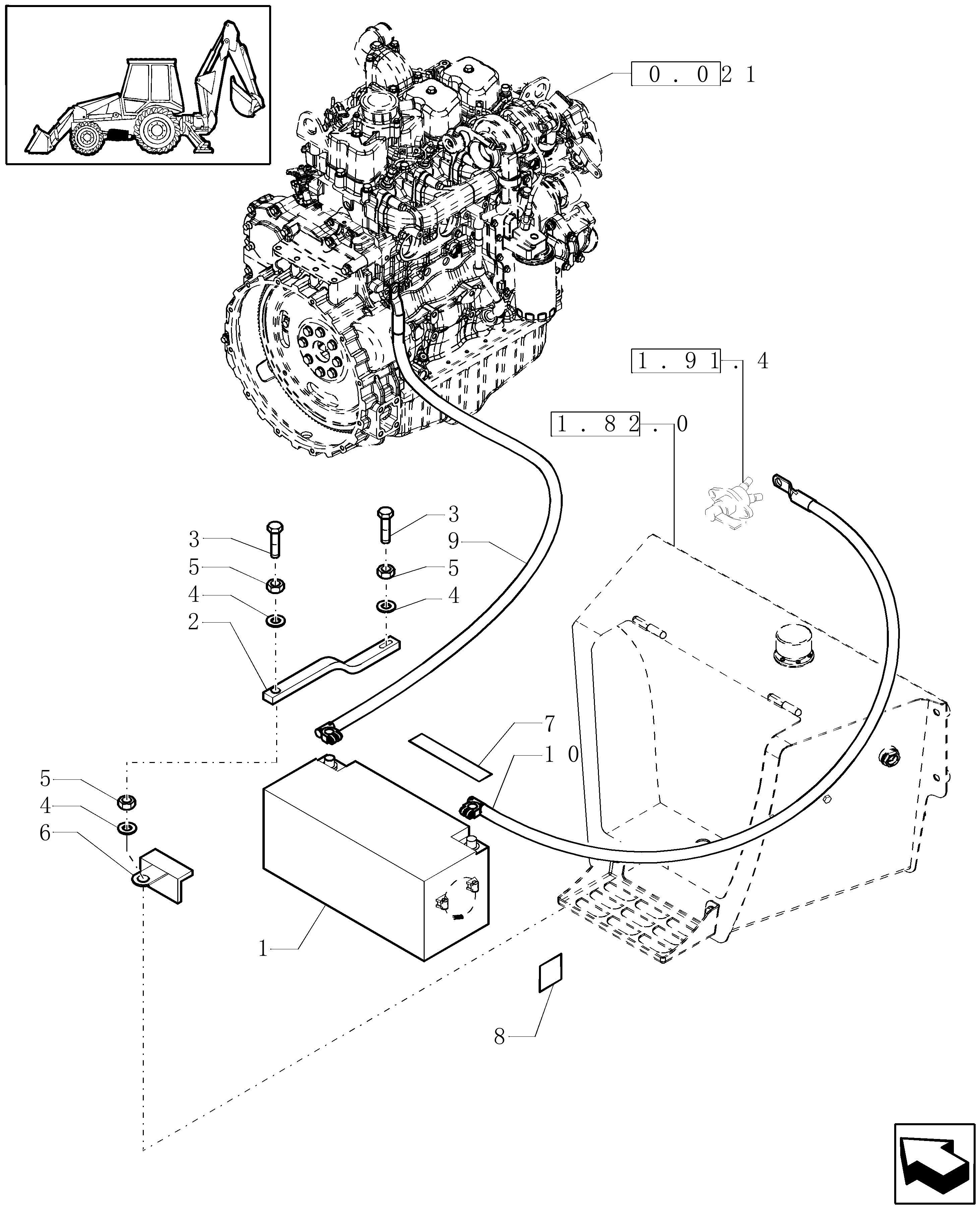

SINGLE BATTERY

SINGLE BATTERY

REF FN PART NUMBER

1 1 85826206 1 1 F910DSW 1 BNH49MFW 1 1 9673604DS 1 9673604WDS 2 87416929

87415781

3 412005 4 47048963 5 47049041 6 47048788 7 47049590 8 87404127 9 87567413 10 87311611

(1) 12V 95AH 900A

131

01 p1 2/2019

YR/SN QTY DESCRIPTION

1 WET BATTERY 12V, 95AH, 900CCA EU; Group 434 1 WET BATTERY NA; Group 434 1 WET BATTERY 12V, 95AH, 900CCA NA; Group 49 1 DRY BATTERY Canada; Group 49 1 WET BATTERY Canada; Group 49 1 BRACKET Use With Group 434 Batteries 85826206 or

F910DSW 1 BRACKET Straight (Not Shown); Use With Group 49

Batteries BNH49MFW or CBNH49MFW 2 BOLT Hex, M10 x 1.5 x 220mm, Cl 8.8 M10x220 2 WASHER 11mm ID x 20mm OD x 2mm Thk, Carbon Steel 2 NUT Hex, M10 x 1.5, Cl 8 M10 2 ANGLE 1 DECAL 1 DECAL 1 CABLE Positive Cable; 1440 mm (56-29/32 in), Red Cable 1 GROUND CABLE 2240 m (88 in), Black Cable

B95TC-NA BACKHOE LOADER

321

01 p1 2/2019

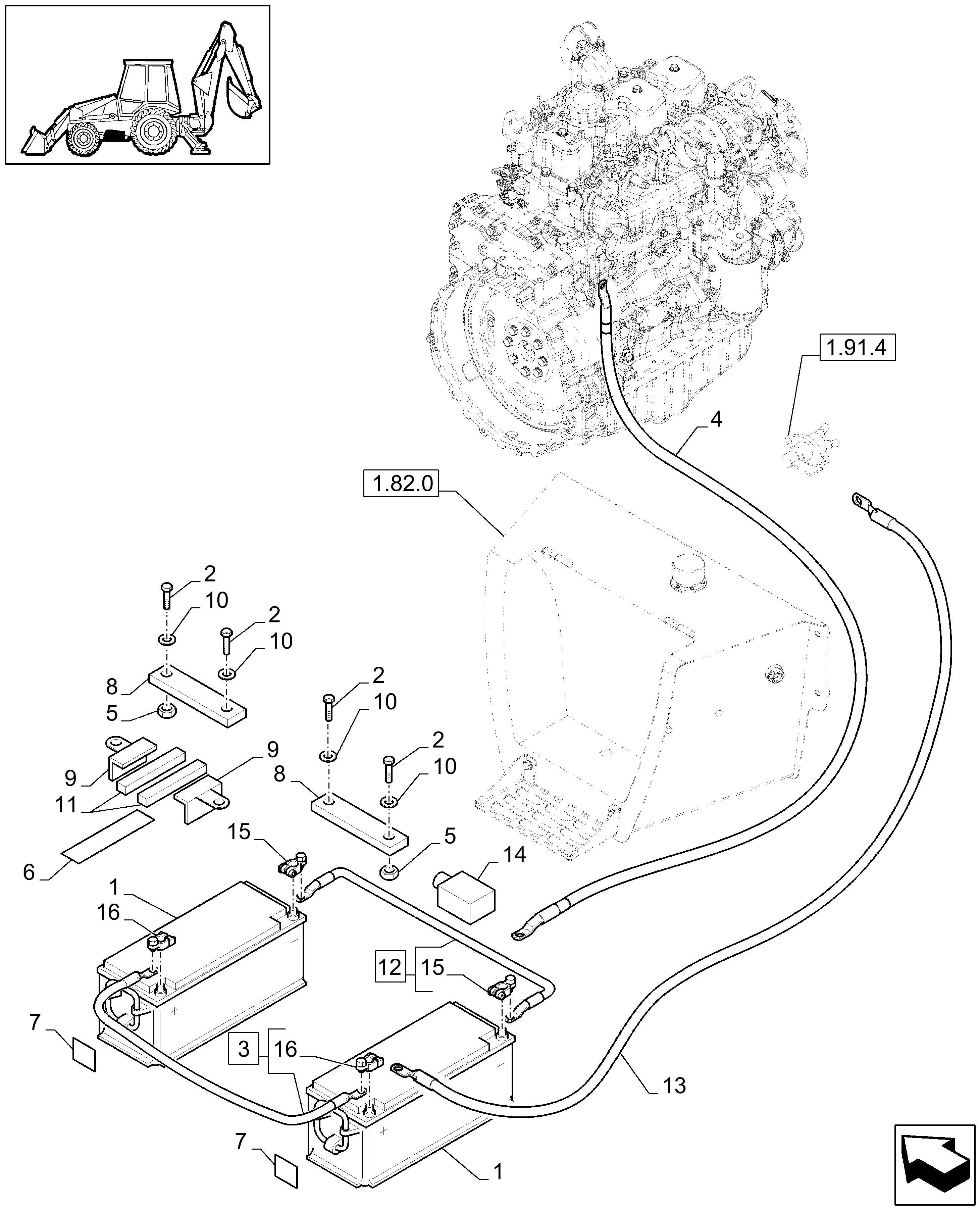

DOUBLE BATTERY

DOUBLE BATTERY

REF FN PART NUMBER

1 1 85826208 1 1 F960DSW 1 1 CF960WDS 2 412005 3 85827072 4 87568472 5 47049041 6 47049590 7 87404127 8 87415781 9 47048788 10 47048963 11 2 87303506 11 3 87529531 12 85827416 13 87427925 14 85826906 15 87617382 16 47588886

(1) 12V 60AH 600A (2) Up to S/N 031056941 (3) From S/N 031056942

321

01 p1 2/2019

YR/SN QTY DESCRIPTION

2 WET BATTERY BCI 31, 12V, 60AH EU 2 WET BATTERY 12V, 60AH, 600CCA NA 2 WET BATTERY Canada 4 BOLT Hex, M10 x 1.5 x 220mm, Cl 8.8 1 POS BATTERY CABLE 600mm L Incl 16 (Qty 2) 1 CABLE 1440mm L 4 NUT Hex, M10 x 1.5, Cl 8 AR DECAL 2 DECAL 2 BRACKET 4 ANGLE 4 WASHER 11mm ID x 20mm OD x 2mm Thk, Carbon Steel 4 RETAINING PLATE 4 RETAINING PLATE 100mm L x 25mm W x 15mm Thk 1 NEG BATTERY CABLE 600mm L Incl 15 (Qty 2) 1 CABLE 1760mm L 2 GUARD 2 TERMINAL Negative M10 Incl in 12 2 TERMINAL Positive M10 Incl in 3

B95TC-NA BACKHOE LOADER

995

01 p1 2/2019

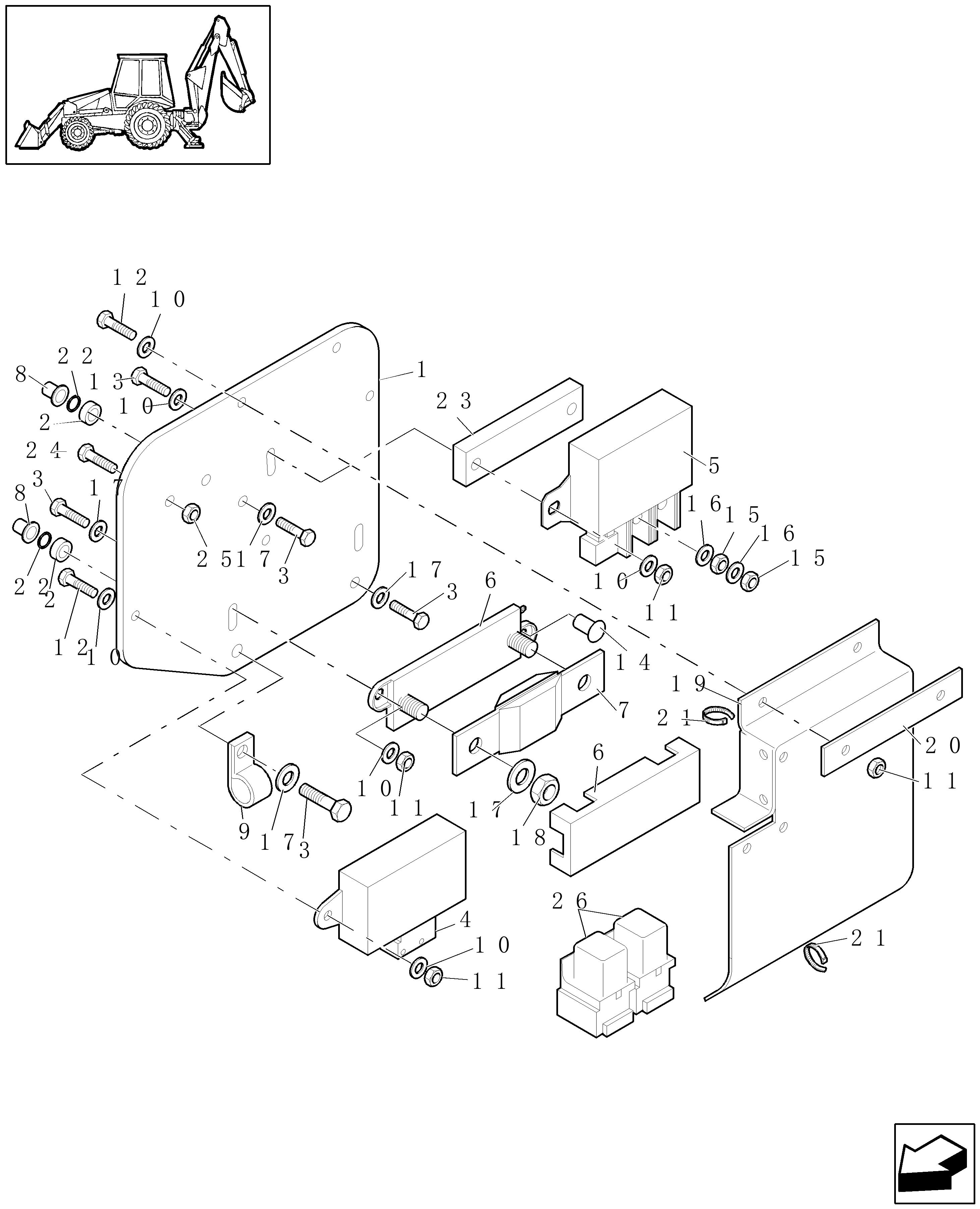

COLD START

COLD START

REF FN PART NUMBER

1 87397601 2 85825169 3 47049164 4 47132002 5 86619908 6 87302554 7 87410602 8 85801492 9 47049195 10 47048961 11 47054518 12 47049157 13 47120207 14 85821538 15 47049029 16 322357

17 47048992 18 47049030 19 87411092 20 87411090 21 47048702 22 85821539 23 87414237 24 87301687 25 231-24409 26 87436836

995

01 p1 2/2019

YR/SN QTY DESCRIPTION

1 BRACKET, SUPPORTING 2mm Thk 3 SPACER 9.8mm ID x 16mm OD x 11mm L 3 BOLT THD TO HD M8x40 CL8.8 ZND 1 HEATER 1 RELAY 12V, 150A 1 ELEC CONNECTOR 6 Fuses 1 FUSE 300A, Blade 300 AMP 3 THREADED INSERT 1 COLLAR M8 15 WASHER 8 NUT M6 5 BOLT M6x20 2 BOLT M6x35 1 BOLT Rd Hd, M6 x 16mm M6x16 4 NUT M6 2 BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm

Thk 5 LOCK WASHER 8mm ID 8mm Spring Lock 2 NUT M8 1 COVER 1 BAR 5 CABLE TIE M4.8 x 292 3 O-RING 1 PLATE 25mm W x 102mm L x 10mm Thk 2 SCREW HWH, #10 - 32 x 1/2" 2 NUT #10-32 2 RELAY 12V, 40 Amp

B95TC-NA BACKHOE LOADER

995

02 p1 2/2019

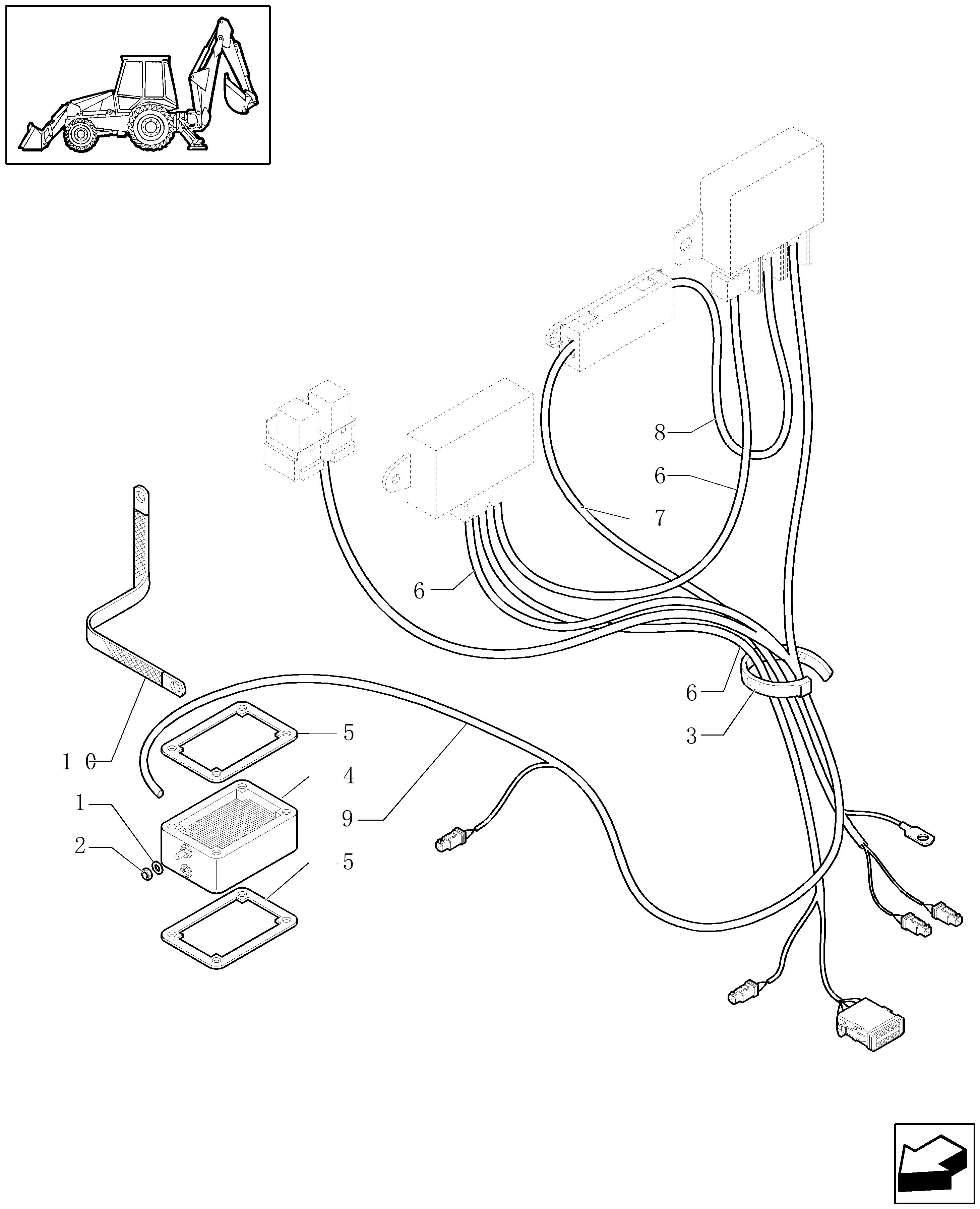

COLD START

COLD START

REF FN PART NUMBER

1 47048961 2 47049029 3 47048702 4 82017872 5 86014151 6 87380322 7 87410264 8 87410265 9 87410266 10 87413162

995

02 p1 2/2019

YR/SN QTY DESCRIPTION

15 WASHER 4 NUT M6 5 CABLE TIE M4.8 x 292 1 HEATER Grid 1 GASKET 93mm L x 98mm L 1 HARNESS 1 WIRE HARNESS 1 BAR 1 WIRE HARNESS 1 GROUND STRAP

B95TC-NA BACKHOE LOADER

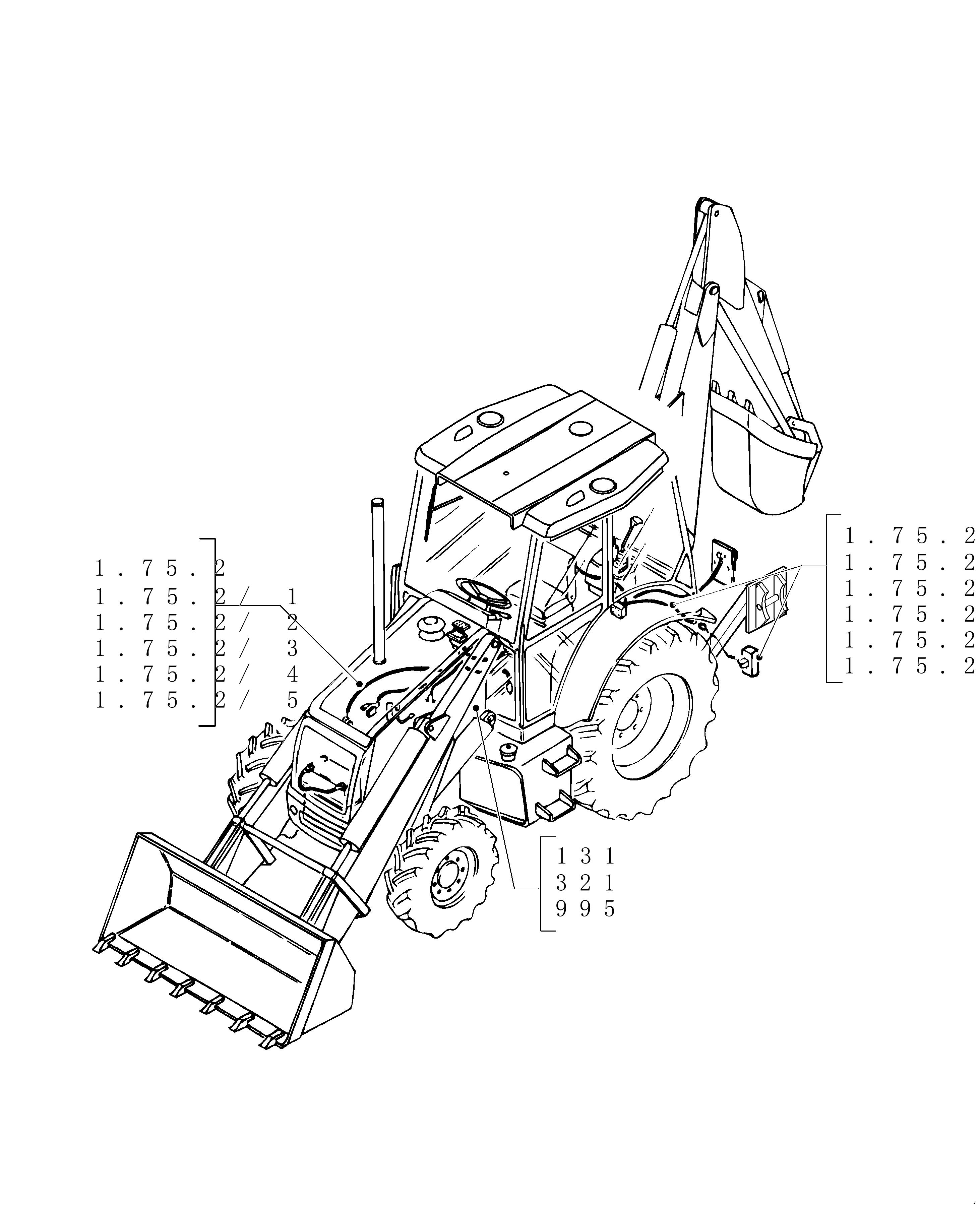

SEC. 06 00 p1 2/2019

ELECTRICAL

ELECTRICAL

REF FN PART NUMBER

SEC. 06 00 p1 2/2019

YR/SN QTY DESCRIPTION
