01 TRANSPORT LOCK CONTROL (ROPS

1.82.6 16 p1 2/2019

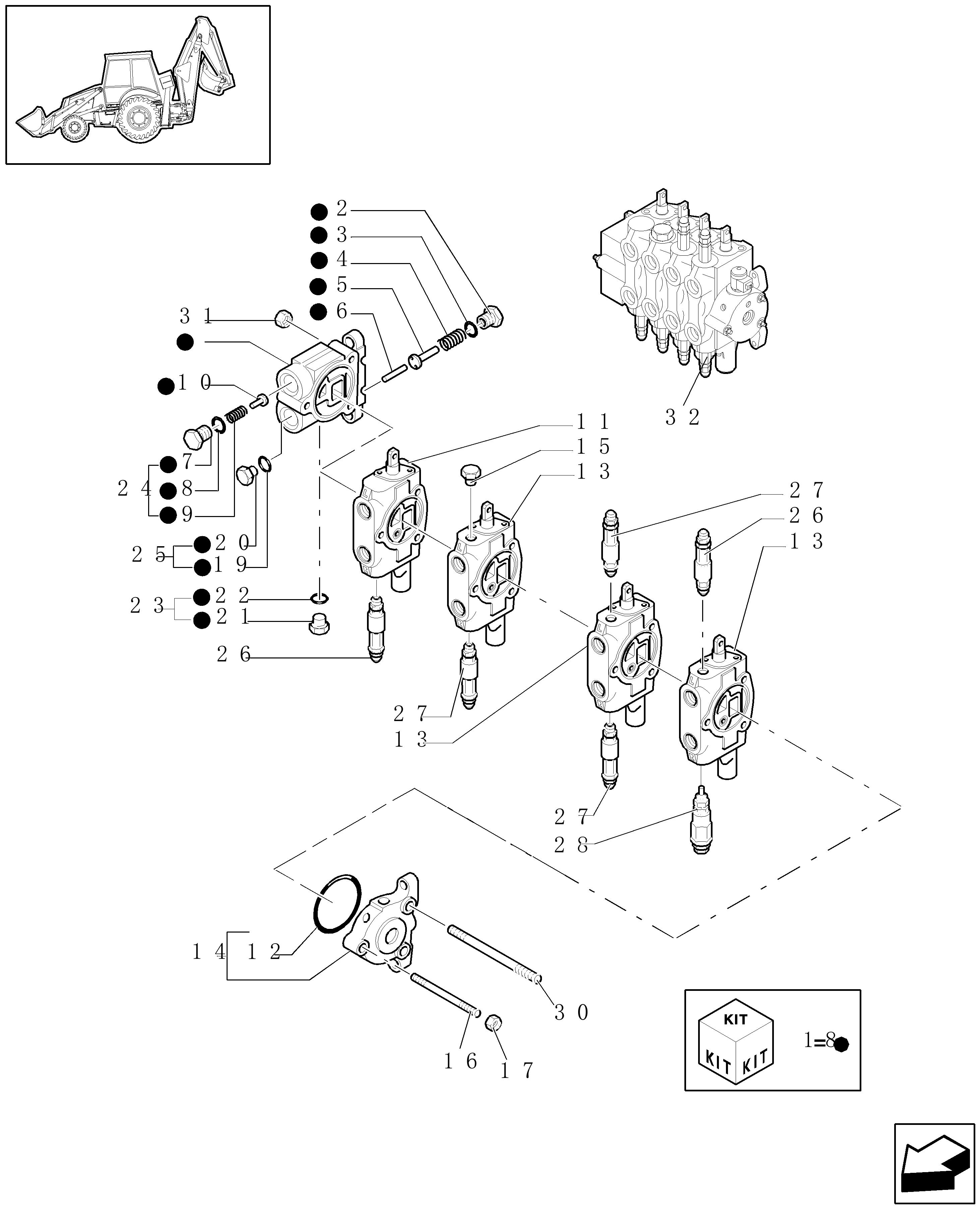

BACKHOE CONTROL VALVE(CENTER PIVOT)

Mechanical Version

BACKHOE CONTROL VALVE(CENTER PIVOT)

REF FN PART NUMBER

2 9968501 3 9968502 4 9968500 5 9968503 6 9968497 7 9968498 8 9968468 9 9968448 10 9968447 11 1 85827102 12 9968495 13 2 85827101 14 9968494 15 85807832 16 9968506 17 9968507 18 85807827 19 85807830 20 85807831 21 85807828 22 85807829 23 9968523 24 85807834 25 85807833 26 9968595 27 9968596 28 9968508 30 9968505 31 9968504 32 85827100

(1) See Page 1.82.6 17 (2) See Page 1.82.6 18

1.82.6 16 p1 2/2019

YR/SN QTY DESCRIPTION

1 PLUG 1 SEALING RING 1 SPRING 1 PLUNGER 1 PIN 1 PLUG 1 SEALING RING 0.097" Thk x 0.755" ID 1 SPRING 1 PLUNGER 1 HYD VALVE SECTION 1 SEALING RING 0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro 3 HYD VALVE SECTION 1 HYD VALVE SECTION 1 PLUG Includes O-ring 1 THREADED ROD 1 NUT 1 HYD VALVE SECTION 1 O-RING 1 PLUG 1 PLUG 1 O-RING 1 PLUG 1 PLUG 1 PLUG 2 VALVE PRESSURE RELIE 3 VALVE PRESSURE RELIE 1 VALVE PRESSURE RELIE 1 THREADED ROD 1 NUT 1 CONTROL VALVE

B95TC-NA BACKHOE LOADER

1.82.6 17 p1 2/2019

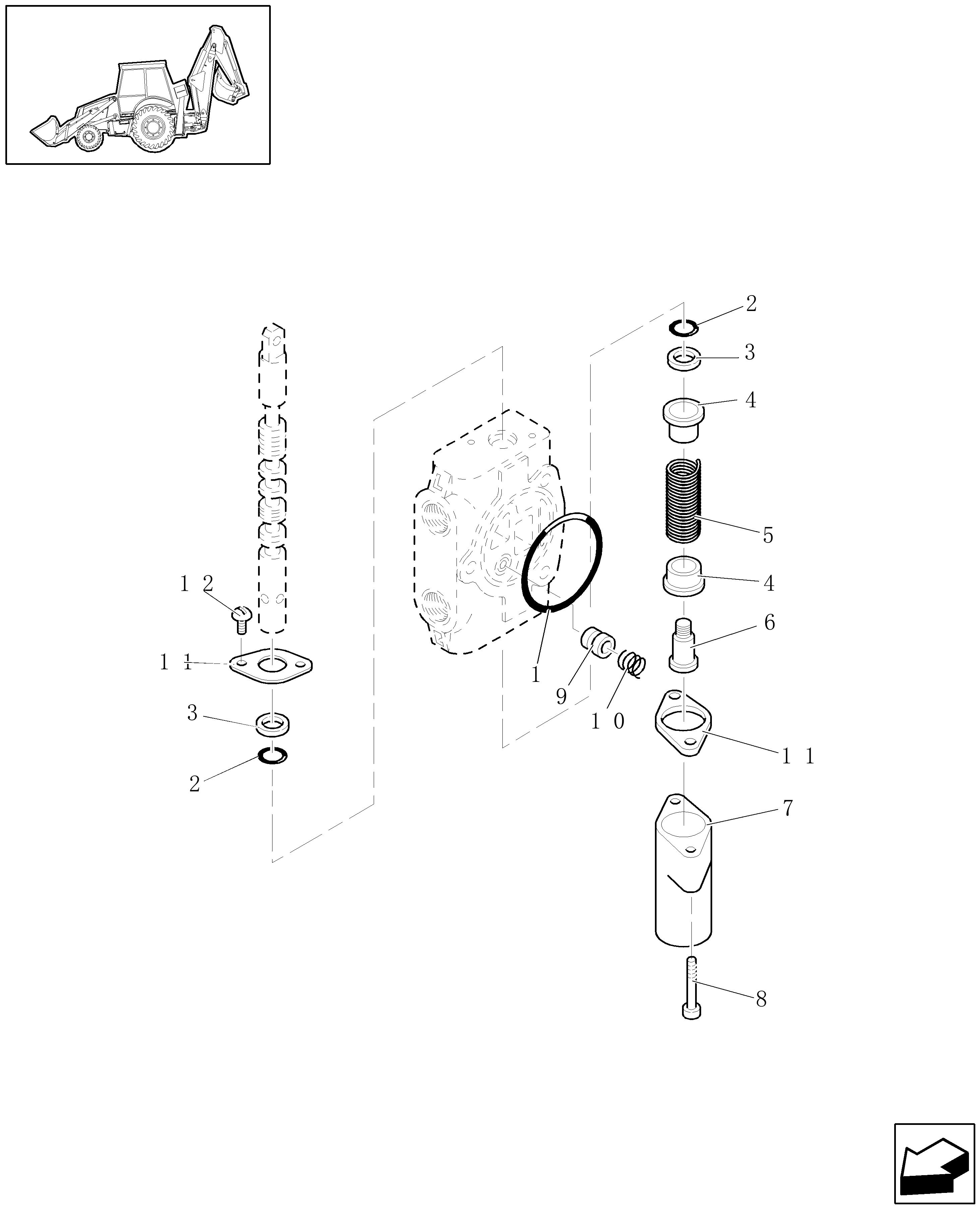

DIPPER VALVE SECTION (CENTER PIVOT)

Mechanical Version

DIPPER VALVE SECTION (CENTER PIVOT)

REF FN PART NUMBER

1 9968495 2 9968489 3 9968490 4 9968512 5 9968514 6 9968515 7 9968513 8 9968516 9 9968510 10 9968511 11 9968458 12 9968460 1.82.6 17 p1 2/2019

YR/SN QTY DESCRIPTION

1 SEALING RING 0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro 1 SEAL 1 WIPER 1 SEAT/SLOT 1 SPRING 1 SPOOL 1 COVER 1 SCREW 2 PLUNGER 1 SPRING 2 FLANGE 1 SCREW

B95TC-NA BACKHOE LOADER

1.82.6 18 p1 2/2019

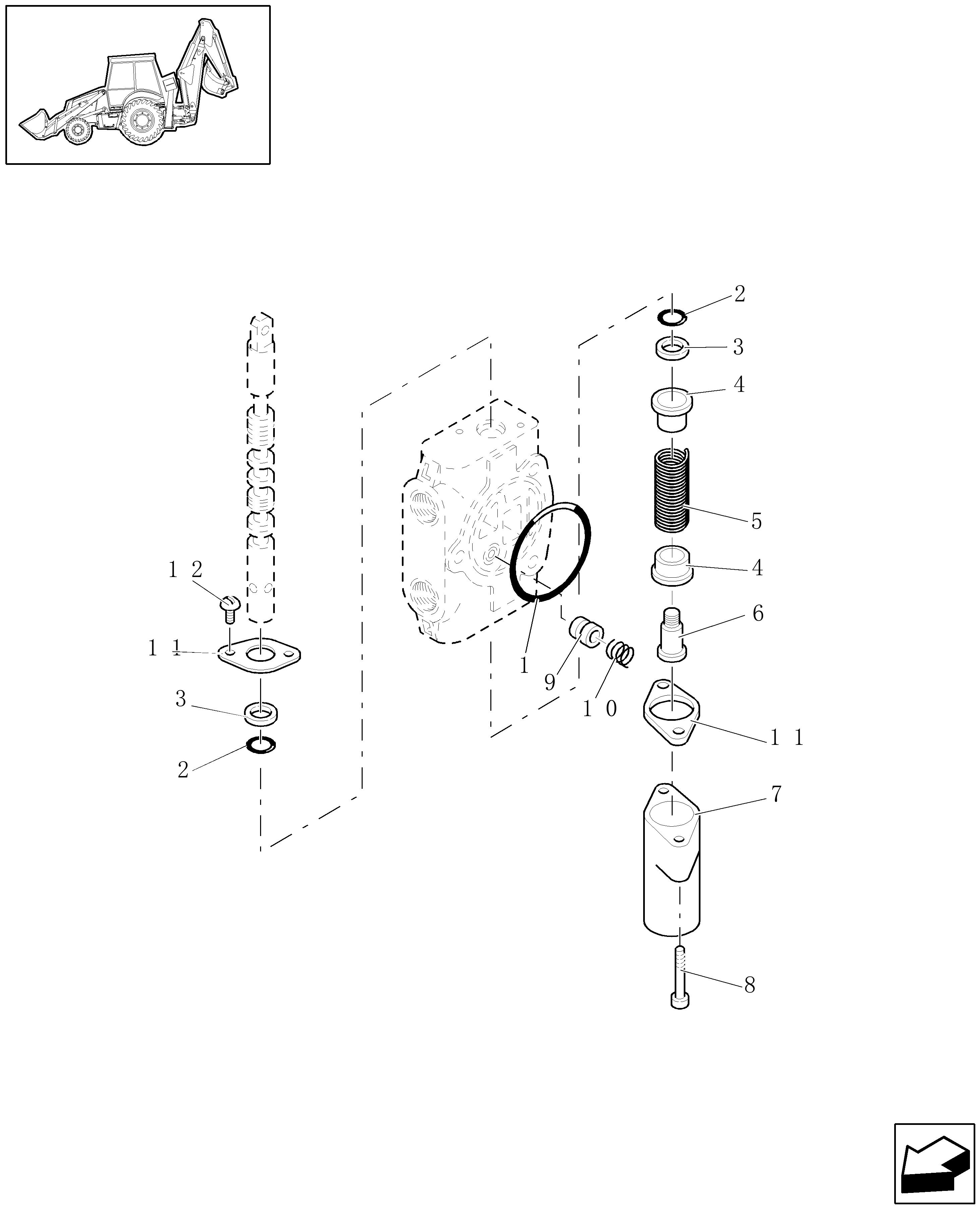

BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT)

Mechanical Version

1.82.6 18 p1 2/2019

BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT)

REF FN PART NUMBER

1 9968495 2 9968489 3 9968490 4 9968512 5 9968514 6 9968515 7 9968513 8 9968516 9 9968510 10 9968511 11 9968458 12 9968460

YR/SN QTY DESCRIPTION

1 SEALING RING 0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro 1 SEAL 1 WIPER 2 SEAT/SLOT 1 SPRING 1 SPOOL 1 COVER 1 SCREW 1 PLUNGER 1 SPRING 2 FLANGE 1 SCREW

B95TC-NA BACKHOE LOADER

1.82.6/ A 01 p1 2/2019

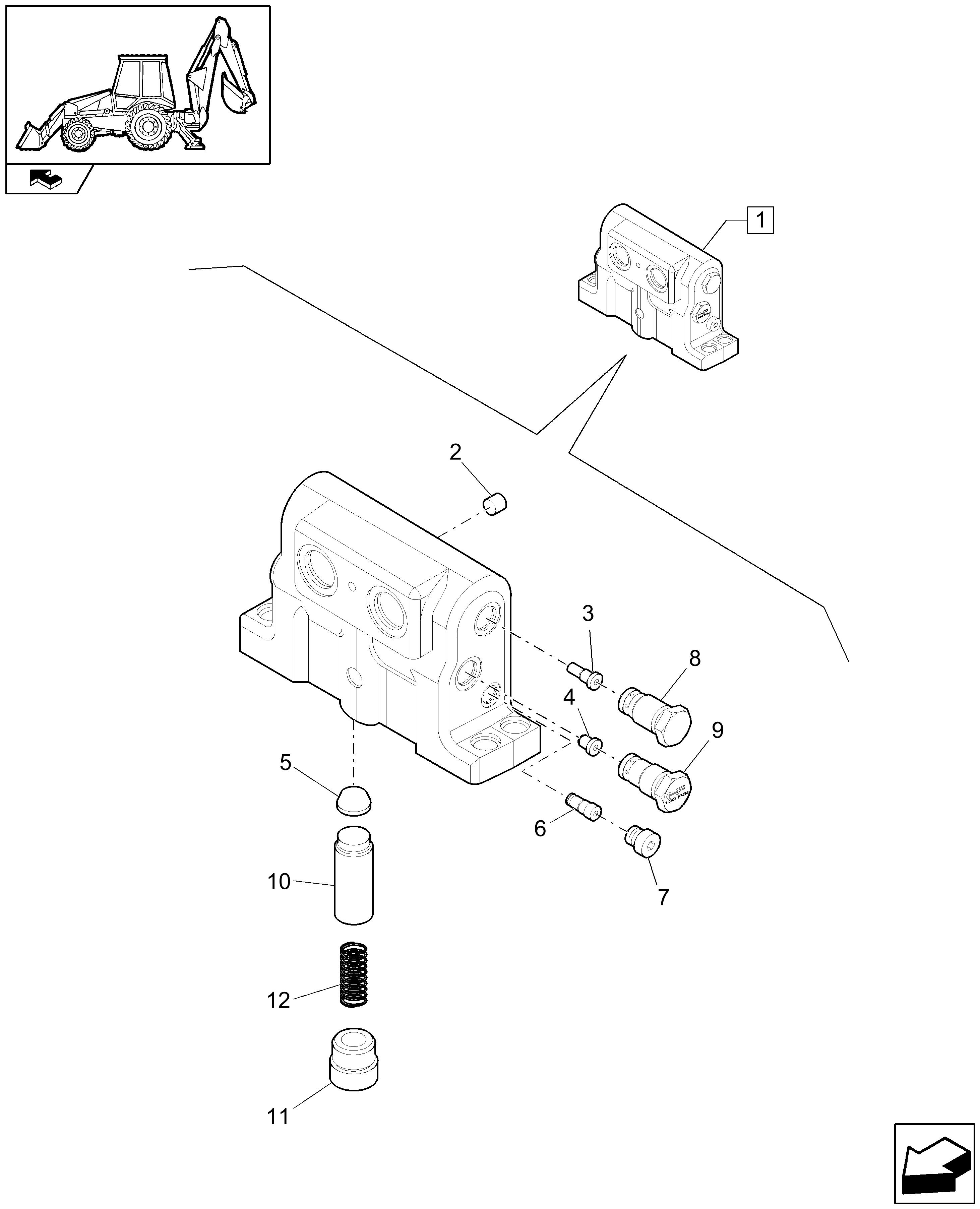

VALVE - SWING DAMPENING

VALVE - SWING DAMPENING

REF FN PART NUMBER

1 87480653 2 369372A1 3 400296A2 4 400657A1 5 1976955C1 6 388712A2 7 218-5209 8 87753055 9 396422A2 10 87449374 11 409025A1 12 388881A1 1.82.6/ A 01 p1 2/2019

YR/SN QTY DESCRIPTION

1 DAMPING VALVE 1 PLUG 6.5mm OD x 5mm L 1 VALVE, CHECK 1 PLUG 1.85mm Hole 1 FILTER SCREEN 1 VALVE 1 PLUG Hex, 9/16"-18 ORB 1 CHECK VALVE 1 VALVE, CHECK 1 SPOOL 1 PLUG Hex, 3/4" - 16 ORB 1 COIL SPRING Compression, 12.20mm OD x 59.21mm L

B95TC-NA BACKHOE LOADER

302

01 p1 2/2019

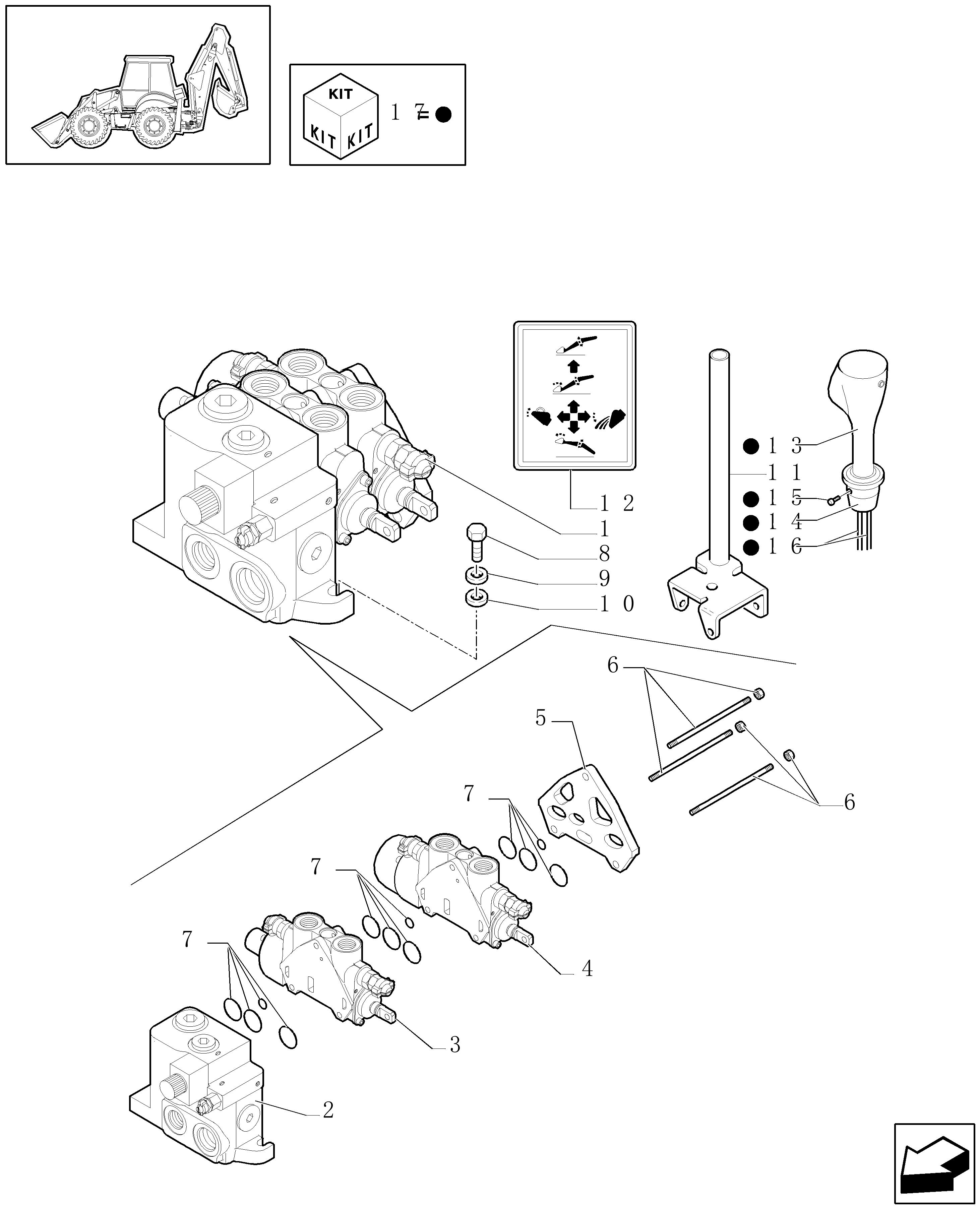

TWO-SECTION FOR LOADER CONTROL VALVE
