01 STABILIZER CONTROL WITH AUTO-UP (CENTER PIVOT
TURBOCHARGER
REF FN PART NUMBER
1 4899118 2 4895133 3 2852068 3 2852068R 3 2852068C 3 504061374R 3 504061374C
4 2852072 5 2852071 6 4898482 0.240 01 p1 2/2019
YR/SN QTY DESCRIPTION
4 FLANGE NUT M8 1 GASKET 0.5mm Thk 1 TURBOCHARGER 1 REMAN-TURBOCHARGER Reman for New P/N 504061374 1 CORE-TURBOCHARGER Return Number 1 REMAN-TURBOCHARGER REMAN-TURBOCHARGER 1 CORE-TURBOCHARGER CORE-TURBOCHARGER Return
Part Number 1 OUTLET 1 GASKET 0.5mm Thk 4 BOLT Flng, M8 x 1.25 x 30mm, Cl 10.9
B95TC-NA BACKHOE LOADER
0.270 01 p1 2/2019
ENGINE, OIL
UP TO S/N ENGINE 148474
ENGINE, OIL
REF FN PART NUMBER
1 2852122 2 2852125 3 4899036 4 4897330 5 4895610 6 1 2852130 7 2852134 8 2852135 9 1 2852136 10 2852140 11 4899115 12 2 87803147
12 3 87803148
(1) Up to S/N ENGINE 148474 (2) Version : SIPEA (3) Version : BORLETTI
0.270 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 TUBE 81 mm Length 1 DIPSTICK 351.5mm L 1 PLUG 2 HEX SOCKET PLUG M12 x 1.5 - Assy 1 O-RING 2.2mm Thk x 9.3mm ID 1 RIGID TUBE 42.43 mm OD, 150, 119.4 mm Length 2 FLANGE BOLT Hex, M12 x 1.75 x 25mm 1 O-RING 2.6mm Thk x 37.7mm ID 1 CAP 48mm ID x 56mm OD x 18mm W 1 HYD CONNECTOR 1 O-RING 2.2mm Thk x 11.3mm ID 1 PRESSURE SWITCH 87803147 or 87803148 Switch Are
Interchangeable, Use Either Switch In Stock 1 PRESSURE SWITCH 87803147 or 87803148 Switch Are
Interchangeable, Use Either Switch In Stock
B95TC-NA BACKHOE LOADER
0.270/A 01 p1 2/2019

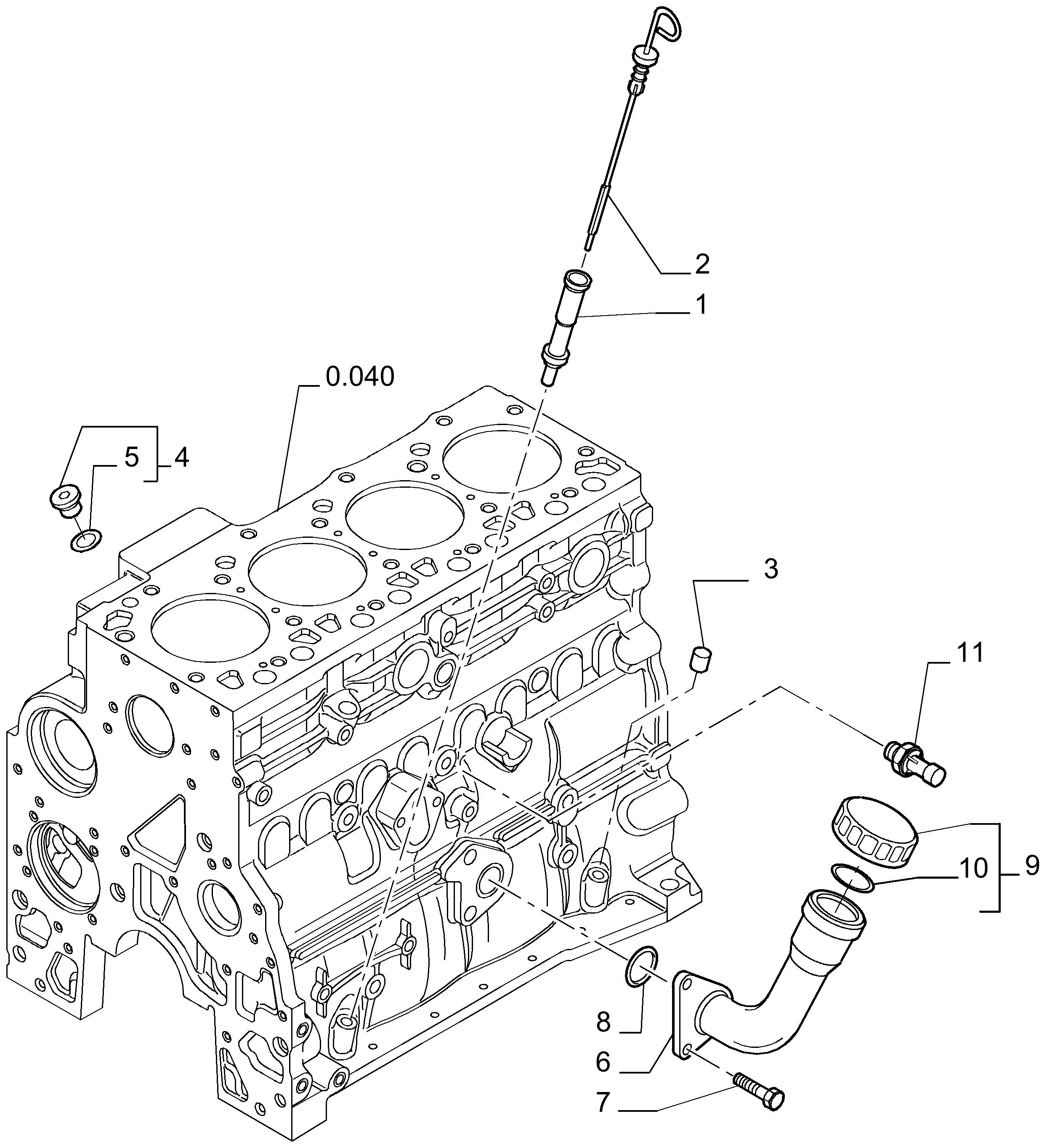

ENGINE, OIL
FROM S/N ENGINE 148475
ENGINE, OIL
REF FN PART NUMBER
1 2852122 2 2852125 3 4899036 4 4897330 5 4895610 6 1 2853407 7 2852134 8 2852135 9 1 2853410 10 1 2853412 11 2852889
(1) From S/N ENGINE 148475
0.270/A 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 TUBE 81 mm Length 1 DIPSTICK 351.5mm L 1 PLUG 2 HEX SOCKET PLUG M12 x 1.5 - Assy 1 O-RING 2.2mm Thk x 9.3mm ID 1 NECK FILLER 143, 117.3 mm Length 2 FLANGE BOLT Hex, M12 x 1.75 x 25mm 1 O-RING 2.6mm Thk x 37.7mm ID 1 FILLER CAP Female - ASSY 1 O-RING 0.21" Thk x 1.475" ID 1 PRESSURE SWITCH M14 x 1.5
B95TC-NA BACKHOE LOADER
0.300 01 p1 2/2019

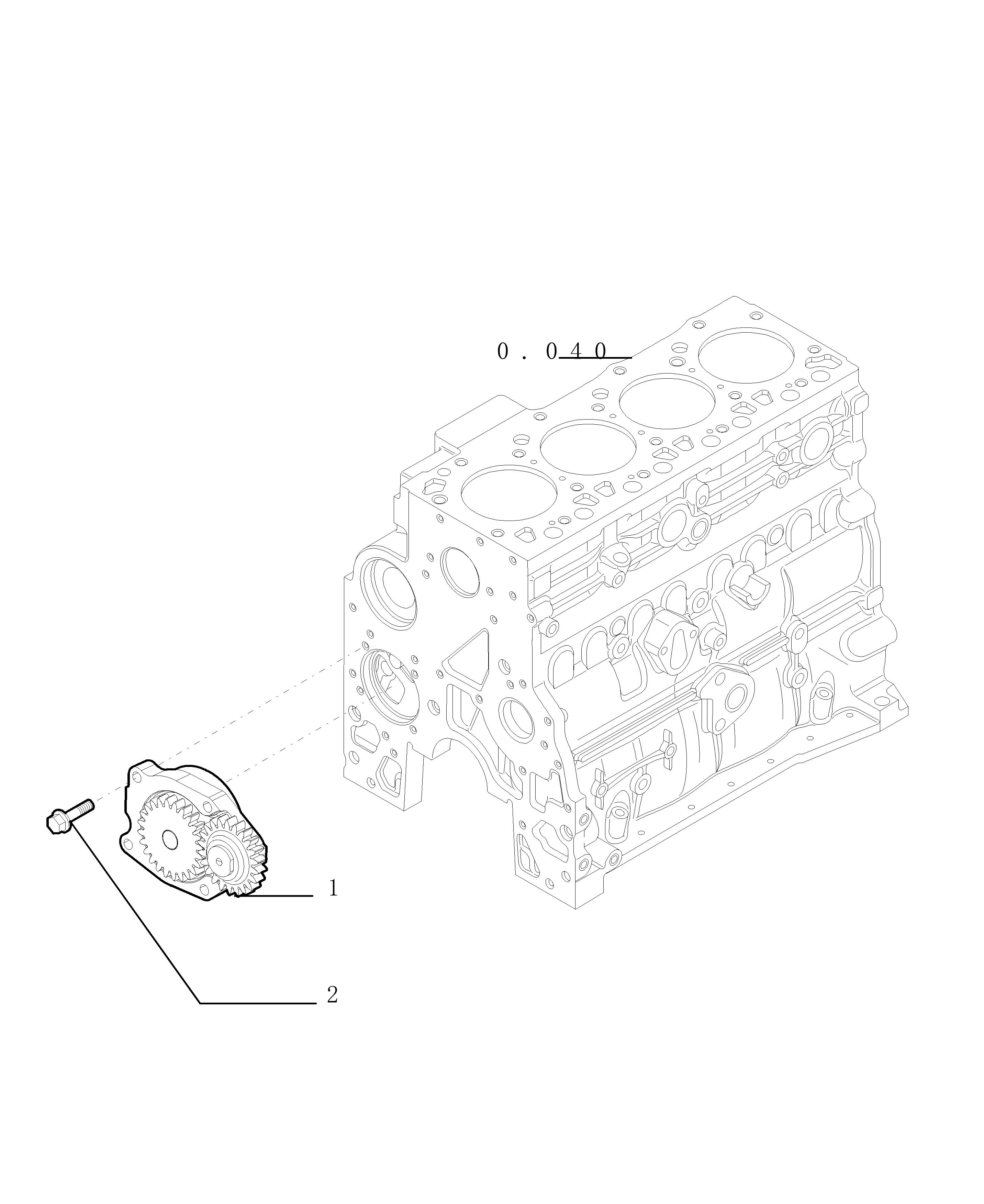

OIL PUMP - ENGINE
OIL PUMP - ENGINE
REF FN PART NUMBER
1 4897480 1 4897480R
1 4897480C
2 4899090 0.300 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 ENGINE OIL PUMP ENGINE OIL PUMP 1 REMAN-ENG OIL PUMP REMAN-ENG OIL PUMP B110,
B115, B95, B95LR, B95TC (1/06-) 1 CORE-ENGINE OIL PUMP CORE-ENGINE OIL PUMP
RETURN NUMBER 4 SCREW Hex Flg, M8 x 1.25 x 30
B95TC-NA BACKHOE LOADER
0.302 01 p1 2/2019
OIL FILTERS - ENGINE
0.302 01 p1 2/2019
OIL FILTERS - ENGINE
REF FN PART NUMBER YR/SN QTY DESCRIPTION
1 1 84228488 1 ENGINE OIL FILTER 95mm OD x 171mm L, M27x2-6H
(1) Valid with B110-NA, B95-NA, B95LR-NA, B95TC-NA, LB110.B, LB115.B-EUR, LB90.B-EUR, LB95.B-EUR Models
B95TC-NA BACKHOE LOADER
0.305 01 p1 2/2019

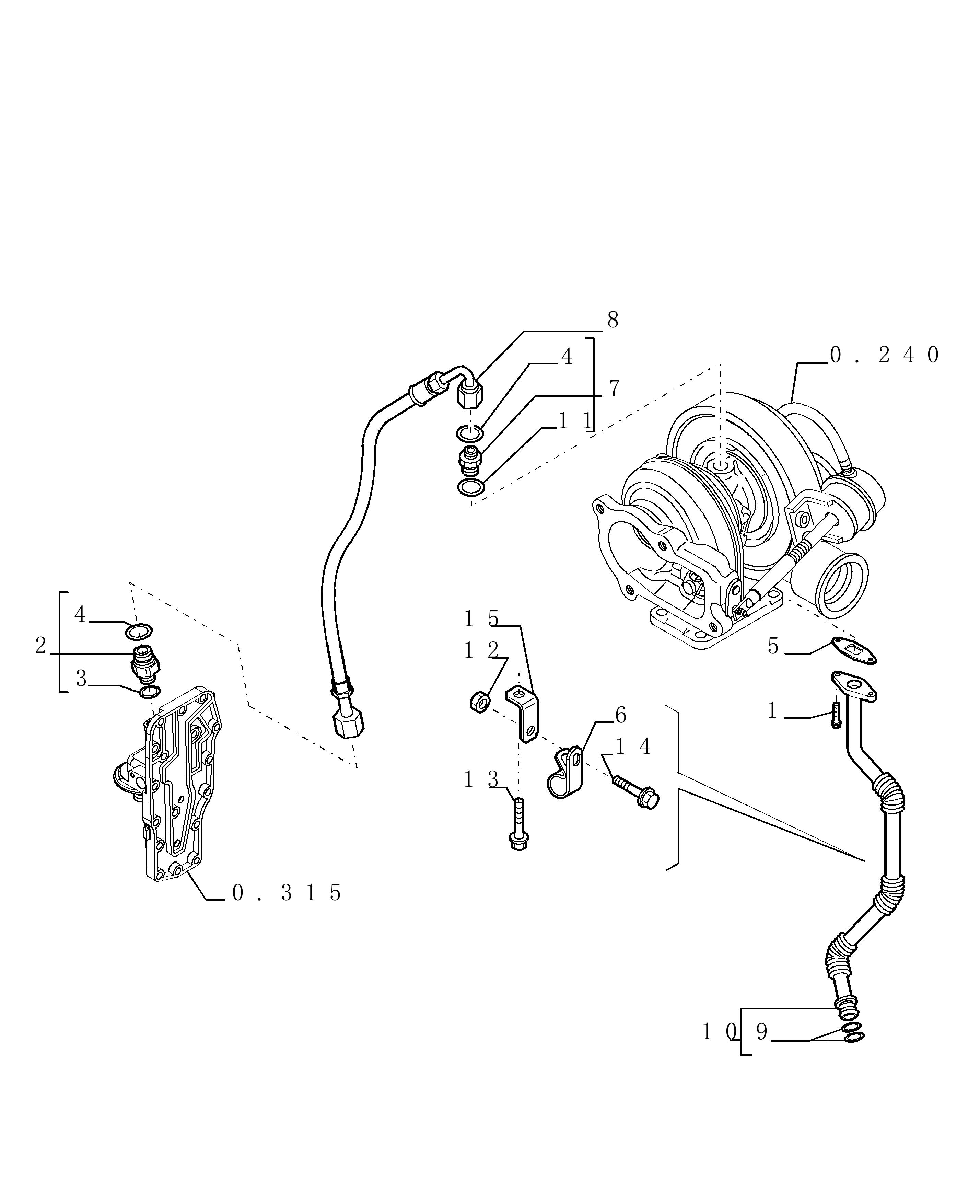

PIPING - ENGINE OIL
PIPING - ENGINE OIL
REF FN PART NUMBER
1 4895164 2 4895107 3 4899107 4 4899108 5 4899467 6 4899519 7 4899106 8 2852195 9 4899058 10 504053166 11 4899121 12 2852197 13 18138324 14 18137824 15 2852196 0.305 01 p1 2/2019
YR/SN QTY DESCRIPTION
2 SCREW Hex, Flg Hd, M6 x 16 1 HYD CONNECTOR 11/16"-16 x M12 - Assy 1 O-RING 1.8mm Thk x 10.52mm ID 2 O-RING 0.364mm ID x 0.07mm Width 1 GASKET 1 CLAMP M16, M6 Bolt 1 HYD CONNECTOR 11/16" - 16 ORFS x M10 x 1.25 ORB 1 HYDRAULIC HOSE 6.4mm ID x 461mm L 2 O-RING 0.674" ID x 0.88" OD x 0.103" 1 PIPE - ASSY 1 SEALING WASHER 10.2mm ID x 19mm OD x 2mm Thk 1 FLANGE NUT M6 x 1 1 SCREW M8 x 1.25 x 16mm M8X1.25X16 1 SCREW M8X16 1 BRACKET
B95TC-NA BACKHOE LOADER
0.315 01 p1 2/2019

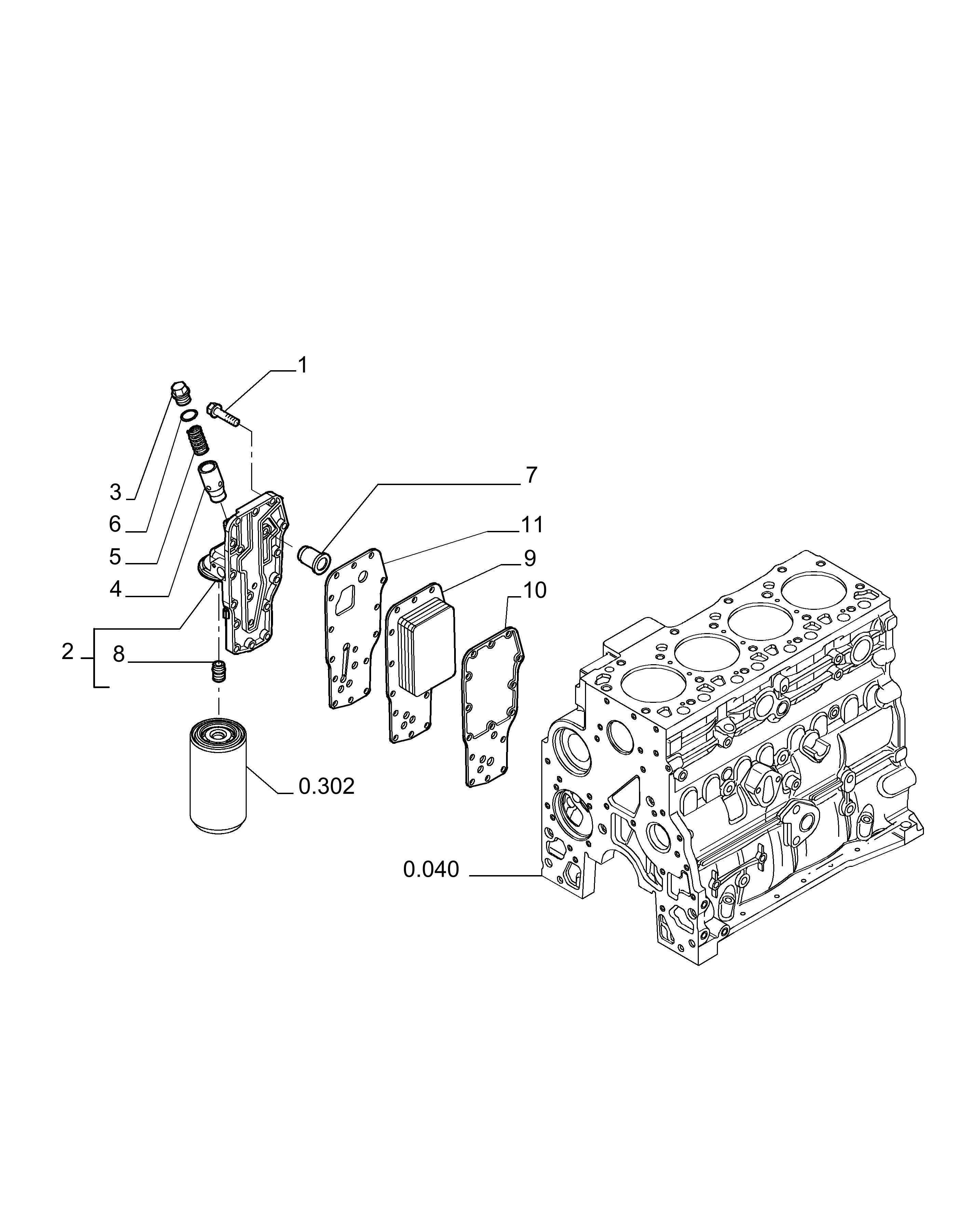

OIL FILTER AND COOLER
OIL FILTER AND COOLER
REF FN PART NUMBER
1 4899019 2 4899643 3 4895043 4 4896404 5 4895045 6 4899035 7 J936365 8 4893391 9 4896406 10 2830559 11 4896409 0.315 01 p1 2/2019
YR/SN QTY DESCRIPTION
15 SCREW Hex Flg, M8 x 1.25 x 35 1 FILTER HEAD - ASSY 1 PLUG 1 PLUNGER 10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD 1 SPRING Compression, 14.7mm OD x 66mm L 1 O-RING 2.62mm Thk x 18.39mm ID 1 VALVE PRESSURE RELIE 1 ADAPTER M24 x 2 x M27 x 2 1 HEAT EXCHANGER 1 GASKET 0.5mm Thk 1 GASKET 1.55mm Thk
B95TC-NA BACKHOE LOADER
0.320 01 p1 2/2019
WATER PUMP
WATER PUMP
REF FN PART NUMBER
1 4891252 1 2852114R 1 2852114C 2 2852047
3 4899079 0.320 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 WATER PUMP 1 REMAN-WATER PUMP 1 CORE-WATER PUMP Return Number 1 SEALING RING Square, 5.16mm Thk x 88.27mm ID
SEALRING 2 SCREW Hex Flg, M8 x 1.25 x 25
B95TC-NA BACKHOE LOADER
0.323 01 p1 2/2019

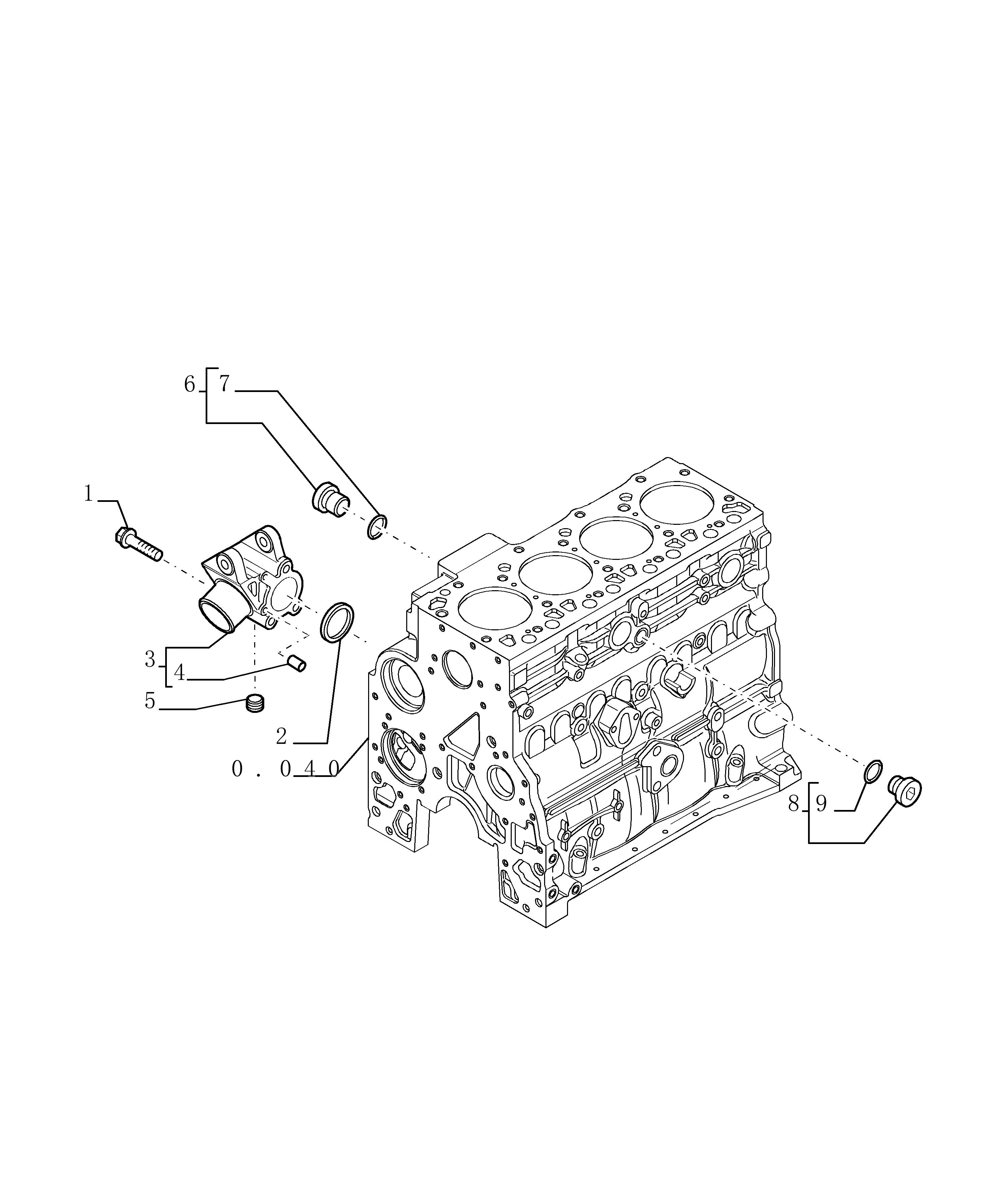

COOLING SYSTEM - ENGINE
COOLING SYSTEM - ENGINE
REF FN PART NUMBER
1 4899109 2 2854072 3 2852145 4 4895576 5 2852511 6 4895392 7 4895393 8 4895623 9 4895625 0.323 01 p1 2/2019
YR/SN QTY DESCRIPTION
3 SCREW Hex, M10 x 1.5 x 80 1 SEALING RING Square, 5.16mm Thk x 50.17mm ID 1 SUPPORT - ASSY 2 DOWEL 1 PLUG R3/8" - 18 NPTF, M8, 12.7mm L 1 HEX SOCKET PLUG M18 x 1.5 - Assy 1 O-RING 2.2mm Thk x 15.3mm ID 1 HEX SOCKET PLUG M16 x 1.5 - Assy 1 O-RING 13.3mm ID x 2.2mm Width
B95TC-NA BACKHOE LOADER
0.326 01 p1 2/2019

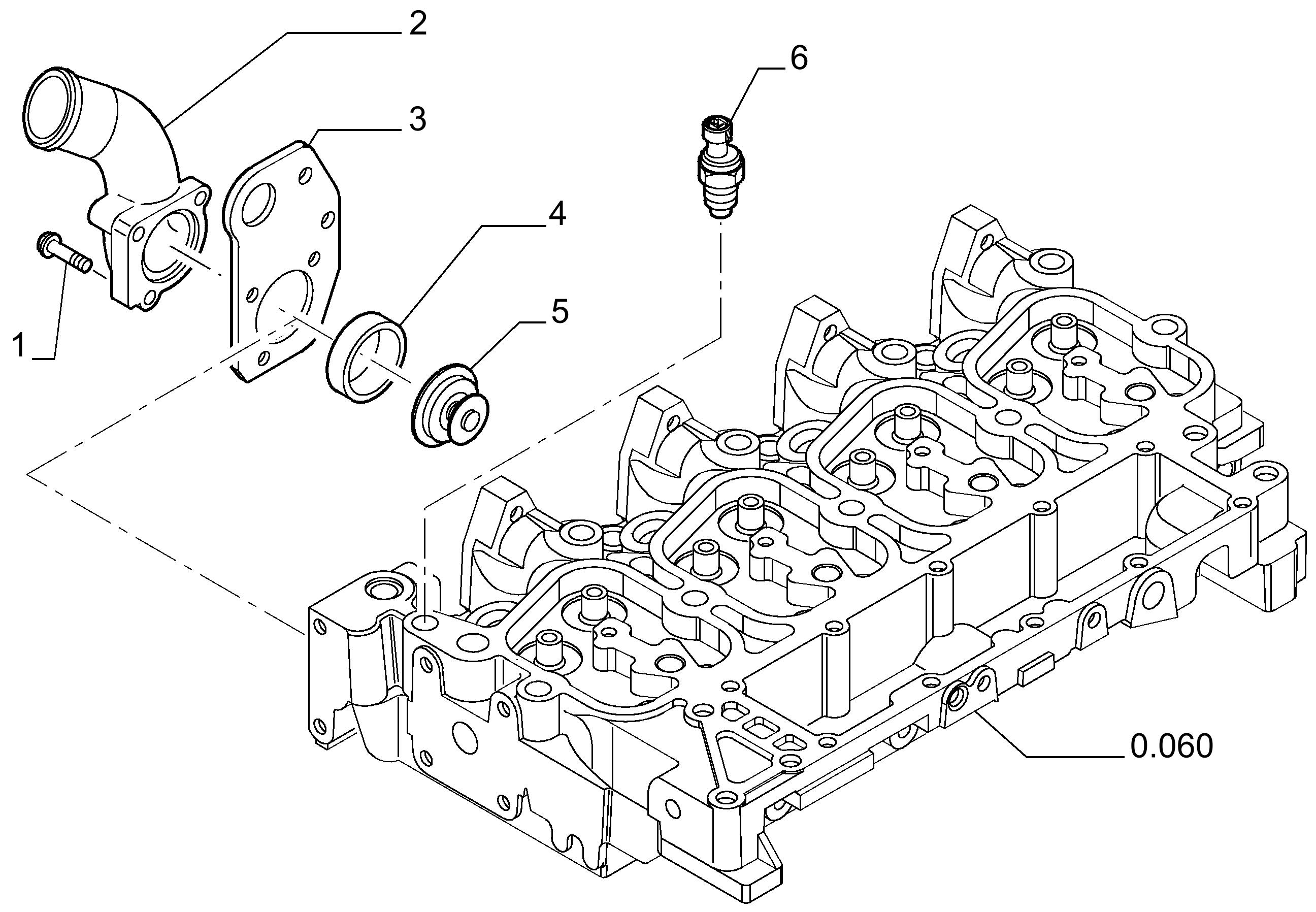

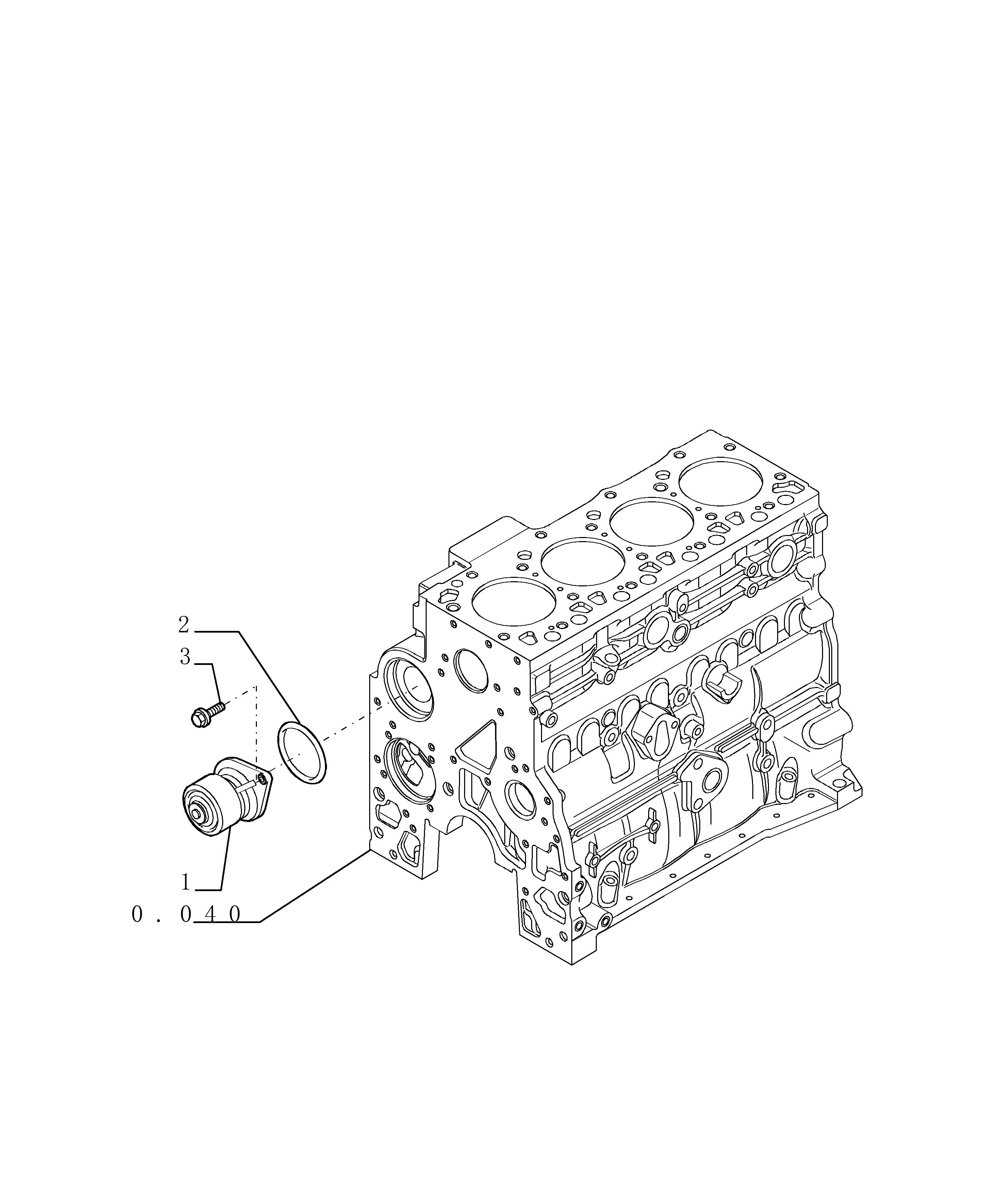

THERMOSTAT - ENGINE COOLING SYSTEM
THERMOSTAT - ENGINE COOLING SYSTEM
REF FN PART NUMBER
1 2852151 1 2852155 2 2852153 3 504052013 4 2852154 5 2852159 6 2852157 0.326 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 FLANGE BOLT Hex, M8 x 1.25 x 35mm 2 FLANGE BOLT Flng, M8 x 1.25 x 80mm 1 ELBOW 1 LIFTING RING 1 GASKET 50mm ID x 59.25mm OD x 16.23mm Thk 1 THERMOSTAT 1 SENSOR PF 1/2 - 14, 3 terminal Grid Heater Thermo Sensor
B95TC-NA BACKHOE LOADER
0.340 01 p1 2/2019

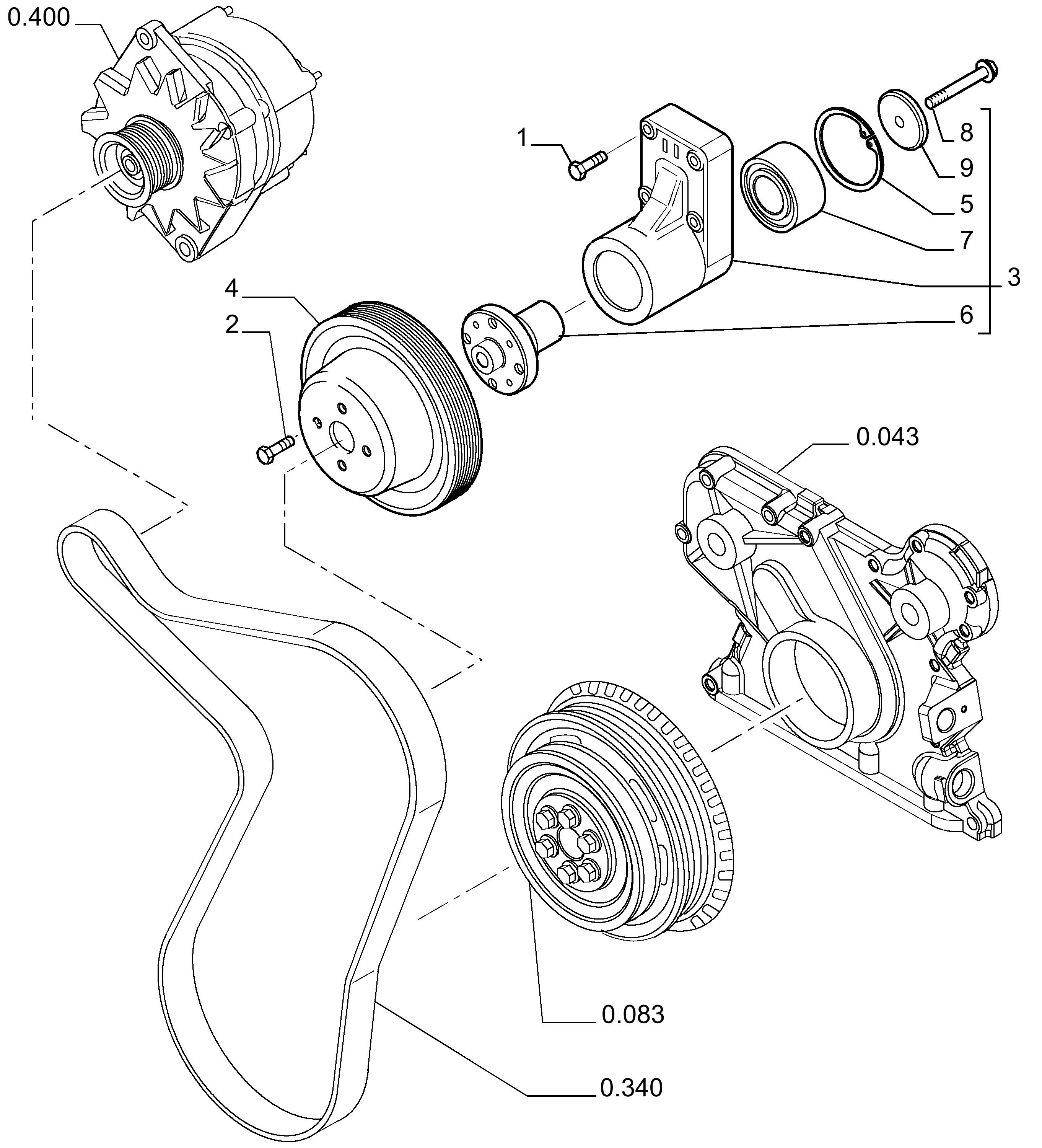

WATER PUMP - CONTROL
UP TO S/N 031056821
WATER PUMP - CONTROL
REF FN PART NUMBER
1 1 2852163 2 2852161 3 2852162 4 2,1 85826230 5 1 4899079 6 1 4899109
(1) Up to S/N 031056821 (2) See Page 636A 02
0.340 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 SUPPORT 1 BELT TENSIONER 1 PULLEY 65mm OD 1 V-BELT 28.48 mm W x 1440.00 mm L, 8 Ribs 2 SCREW Hex Flg, M8 x 1.25 x 25 1 SCREW Hex, M10 x 1.5 x 80
B95TC-NA BACKHOE LOADER
0.340/A 01 p1 2/2019

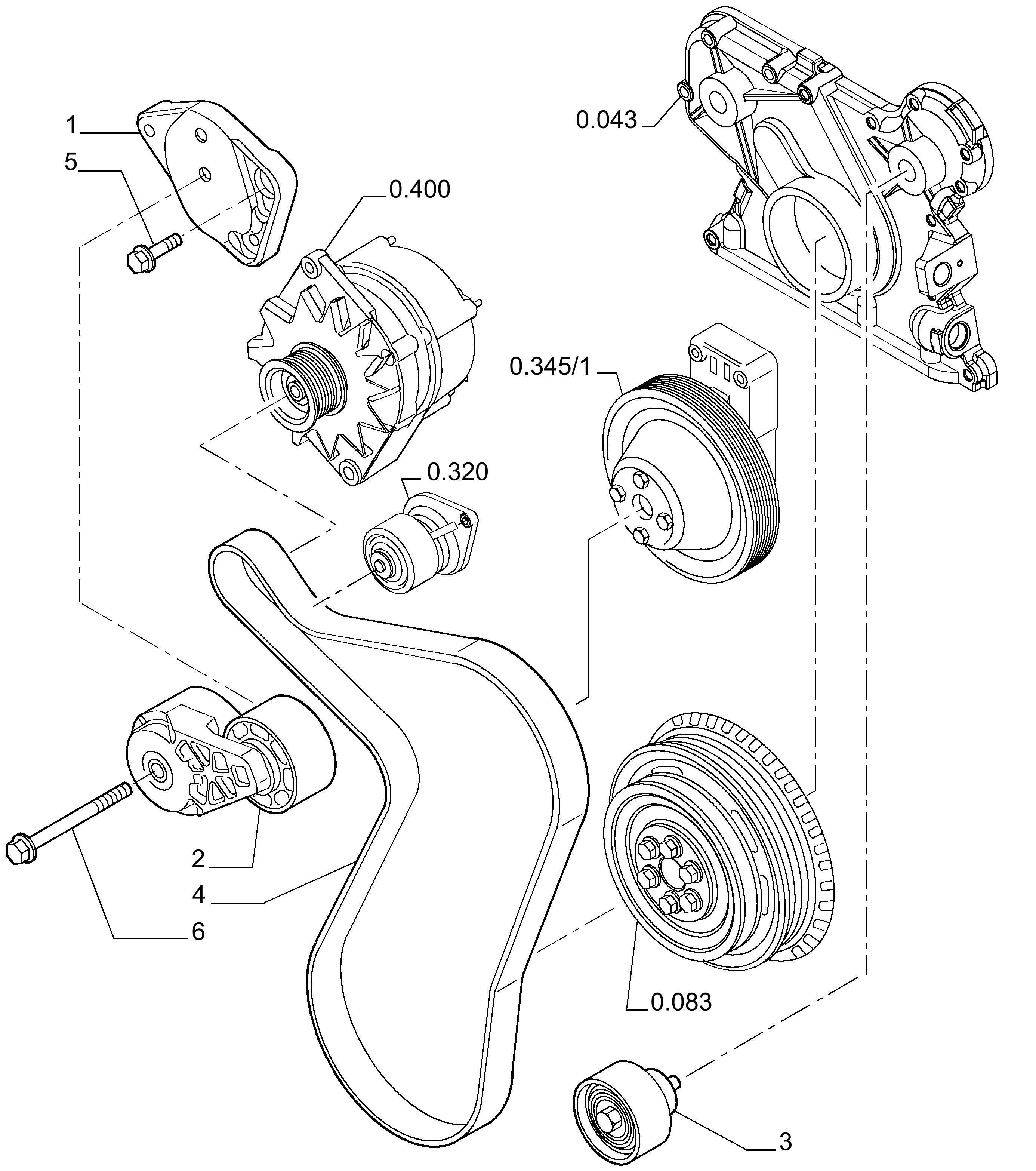

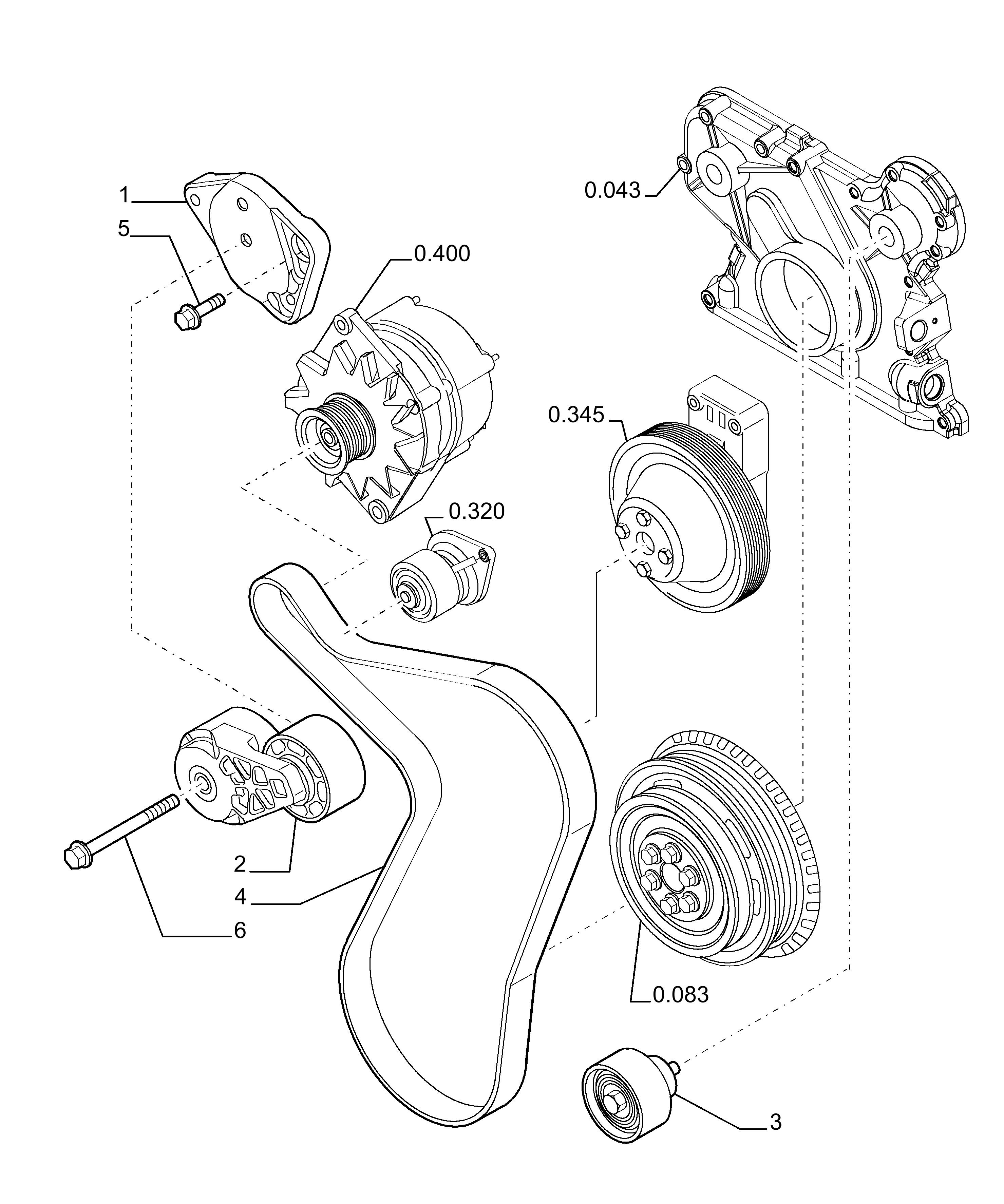

WATER PUMP - CONTROL
FROM S/N 031056822 (12/01/2005)
WATER PUMP - CONTROL
REF FN PART NUMBER
1 1 2852621 2 2852161 3 2852162 4 1 504076395 5 1 2852247 6 1 4895292
(1) From S/N 031056822
0.340/A 01 p1 2/2019
YR/SN QTY DESCRIPTION
1 SUPPORT 1 BELT TENSIONER 1 PULLEY 65mm OD 1 BELT, TRANSMISSION 2 BOLT Hex, M8 x 1.25 x 30mm M8X1,25X30 1 FLANGE BOLT Hex, M10 x 1.5 x 70mm
B95TC-NA BACKHOE LOADER
0.345 01 p1 2/2019
