Remove the snap ring all three planetary gears

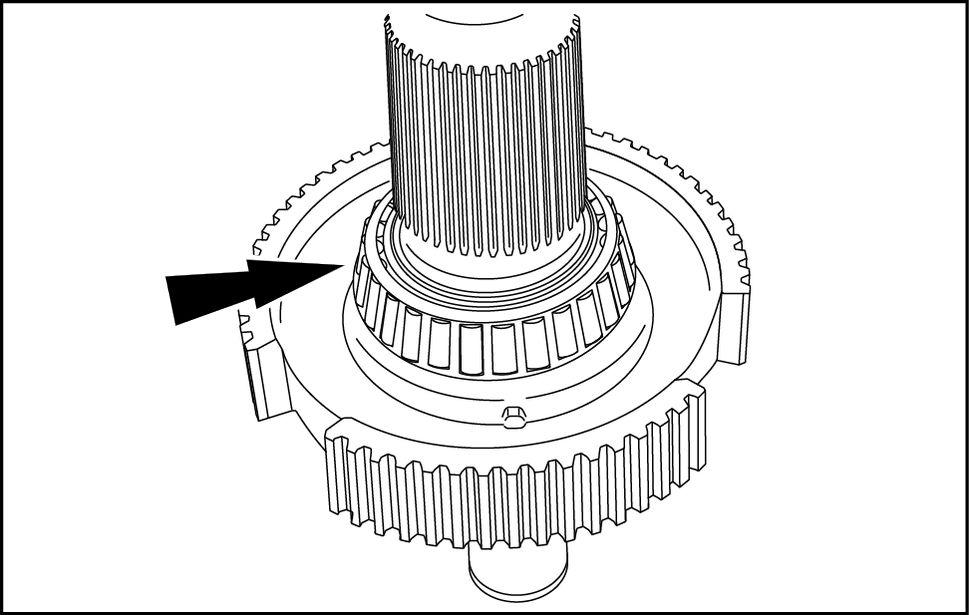

26. Inspect the carrier output shaft bearing. damaged score with a die grinder and remove the bearing cage.

Then score the bearing with a die grinder and break with a hammer and a chisel.

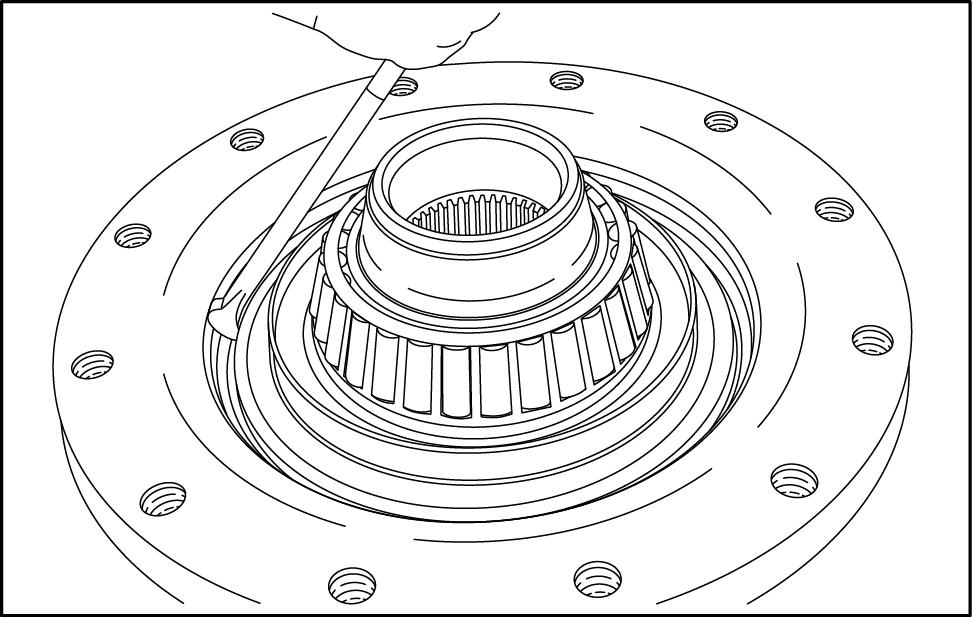

27. Use a pry bar remove the face seal metal ring from the wheel hub shaft.

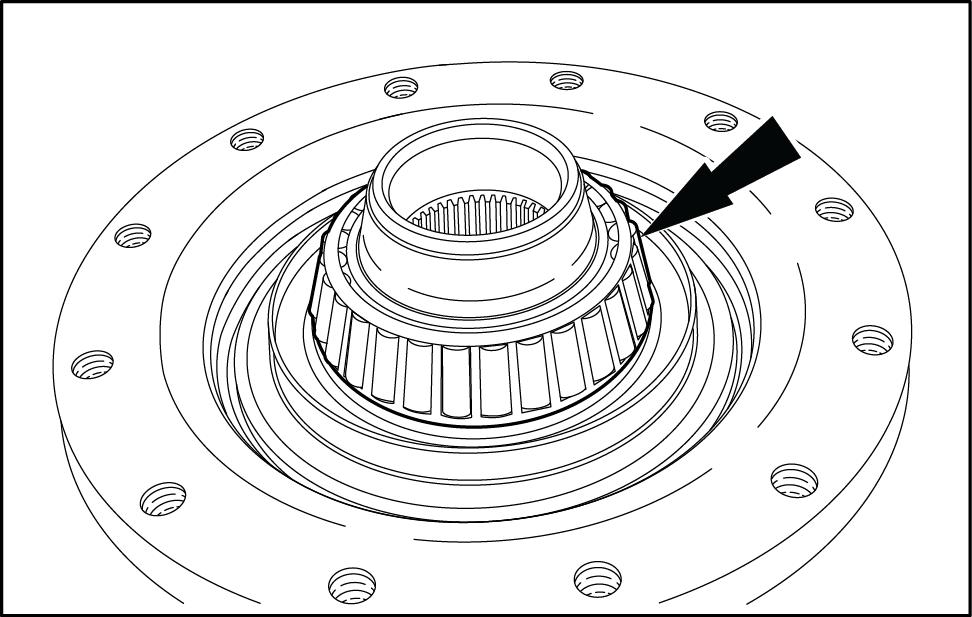

28. Inspect the bearing the wheel hub shaft.

damaged score with a die grinder and remove the bearing cage. Then score the bearing with a die grinder and break with a hammer and a chisel.

Heat the new wheel hub shaft outer bearing 120 °C ( 248 °F ) in a bearing oven. Install the new bearing the wheel hub shaft until the new bearing is against the shoulder the wheel hub shaft. NOTICE: always wear heat protective gloves prevent burning your hand when handling heated parts.

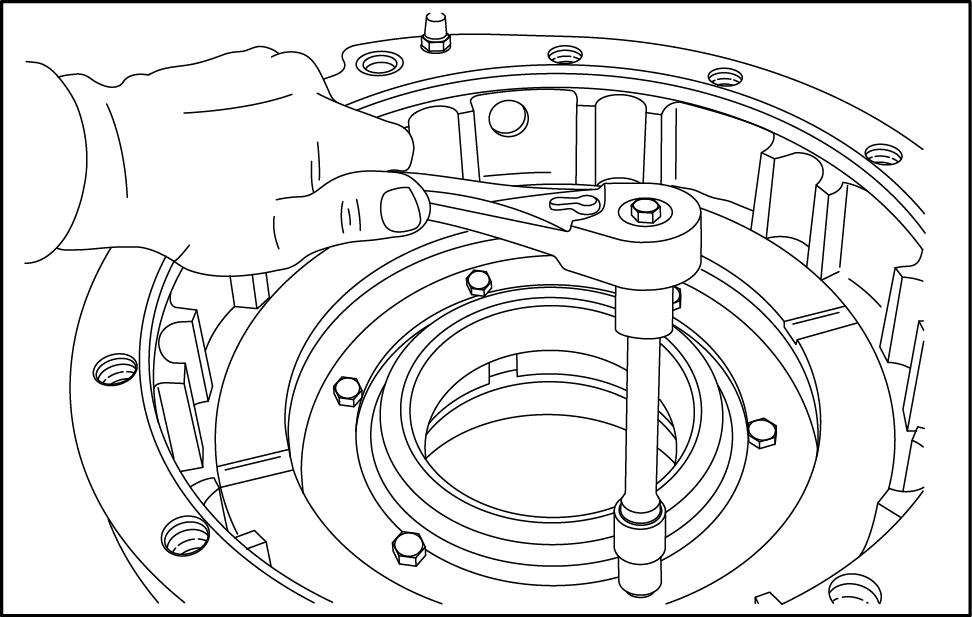

29. Remove the six bolts from the return spring retainer .

LEIL14WHL0056AA 24

LEIL14WHL0057AA 25

LEIL14WHL0058AB 26

LEIL14WHL0059AA 27
