Repeat the steps and remove the remaining
from CNH 521F 621F W110C W130C Wheel Loader Front & Rear Axle Bronze Brakes Installation Instructions Man

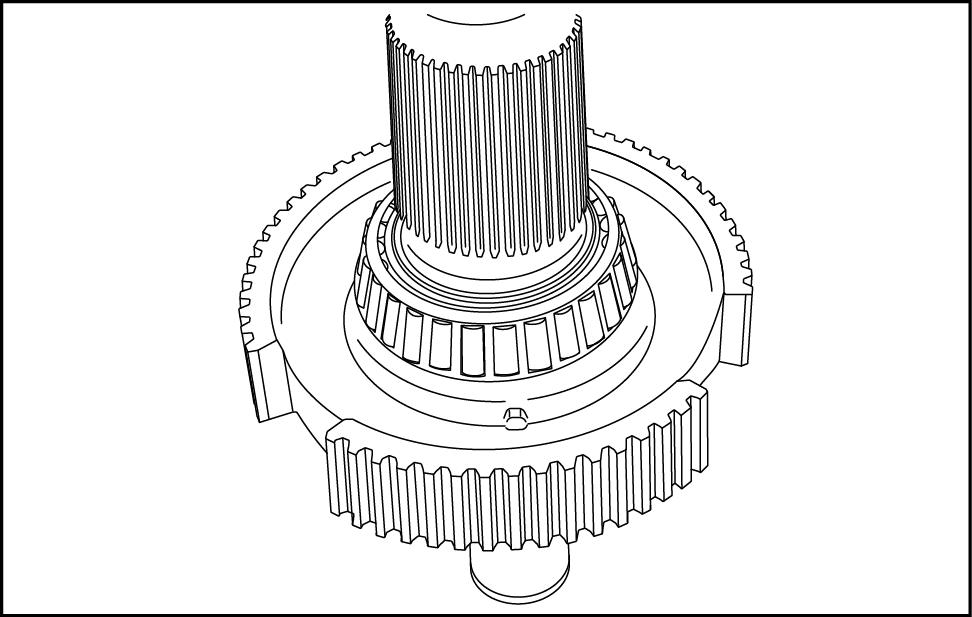

49. Heat the carrier output shaft 120 °C ( 248 °F ) in a bearing oven. W earing heat resistant gloves mittens, install the bearing the shaft until the bearing is against the carrier gear .
Coat the spline the carrier output shaft with
L OCTITE ® S ILVER G RADE A NTI -S EIZE 767 .
50. Install a new stop pin if it was removed, damaged worn.

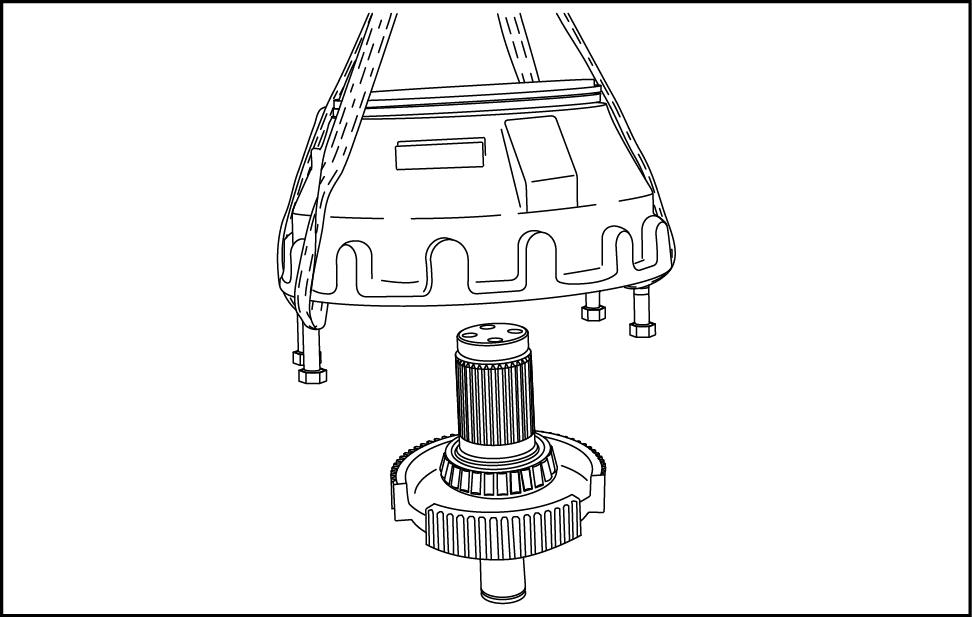

51. Attach a suitable lifting device the brake housing and insert the brake housing the carrier output shaft.

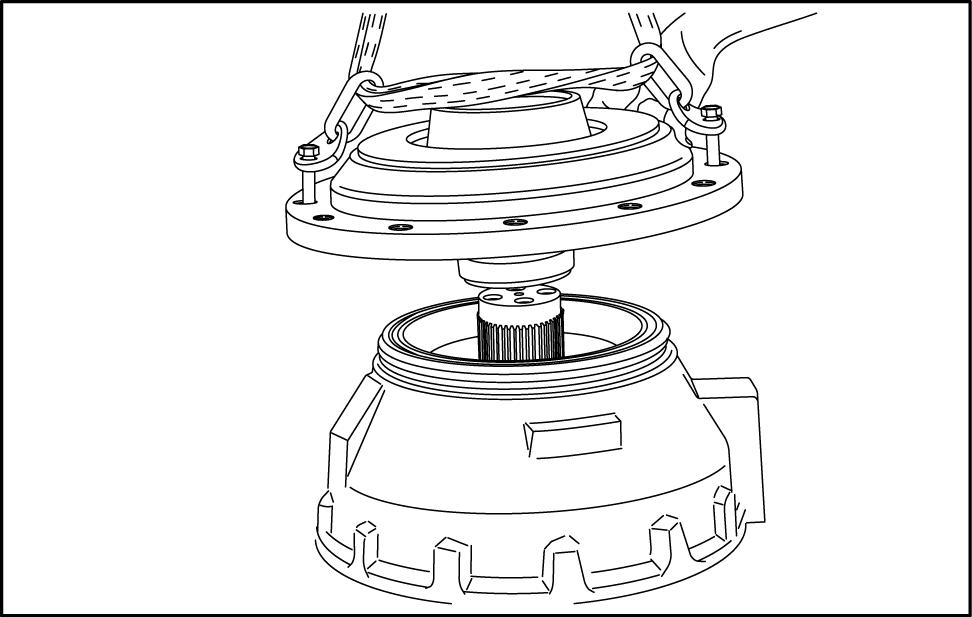

52. Attach a suitable lifting device the wheel hub and reinstall the wheel hub the brake housing. A slight rotation the wheel hub may necessary align the splines the carrier output shaft.
LEIL14WHL0056AA 47
LEIL14WHL0077AA 48
LEIL14WHL0054AA 49
LEIL14WHL0053AA 50
