Parking the Mower in a Folded Condition ........................ 6 Conversion from Front/Rear Combination Unit

7

9

9 8

10

9 45

46

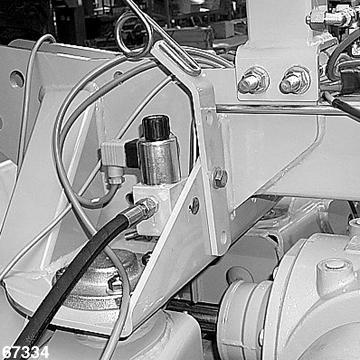

Remove the hydraulic hose on the left (7) and right (8) and close off the elbow support (9) with stoppers (10). (Fig.45,46)

11

47

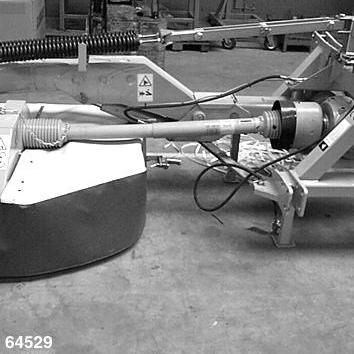

Attach the universal drive shafts (11) to the main gearbox with the clutch end and then attach them to the side mowers and secure in position with the clamping screws. (Fig.46)

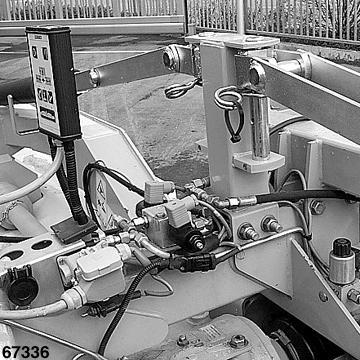

Attach the universal shaft to the main gearbox with the clutch end and then attach it to the front mower. Secure universal drive shaft gear against rotating by hanging in the chains.

Note:

If you are using the mower as a towed combination, you will require propeller shaft M04 0080 (0947 117.5) for the front mower.

M04 0080 0947 117.5

64532F

48
