DISCO8550Plus / 8550 cannot be used as a pushed combination, but only as a trailed front/ rear combination (see page6.18).

Fasten both side mowers to the arms. To do this, mount the pins (3) in the outer bore of the arm and secure in position using the strap (5). Mount the retaining screws (4). (Fig.19)

Attach the universal drive shafts (6) to the main gearbox with the clutch end and then attach them to the side mowers and secure in position with the clamping screws. Secure universal drive shaft gear against rotating by hanging in the chains. (Fig.20)

18

19

20

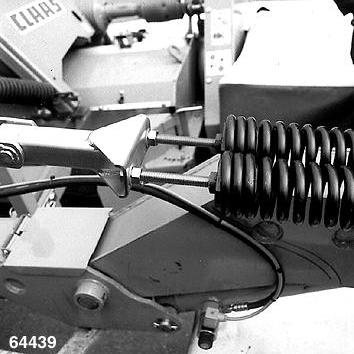

Floatation springs

Basic value X = approx. 80 mm (Fig.21)
