Installation of Cutting Knives ............................................ 6

11

12

13

14 11

13

12 Fixing the Controller DISCO8550CPlus/8550C/8550C-T

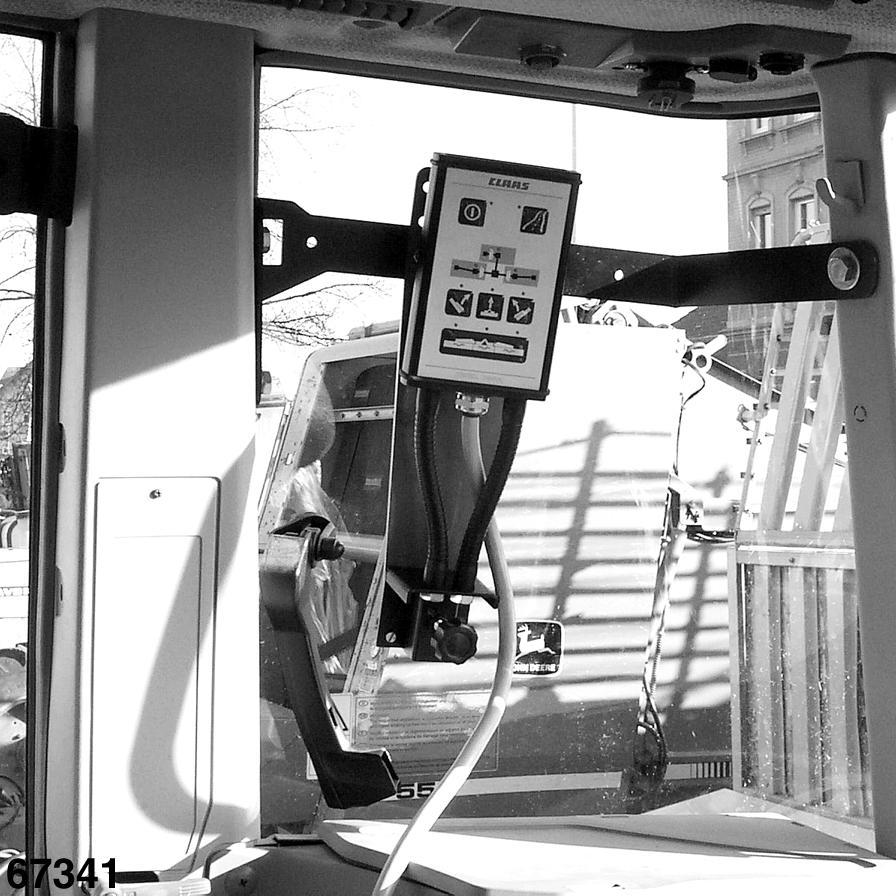

Fix the holder (2) within reach of the driver. Screw the operating console holder (18) with machine screws (M5x18) and locknuts (VM5) to the holder (12). Slot the operating console (11) in the operating console holder. (Fig.11)

Insert the plug (13) in the socket (14). (Fig.12)

Plug the electrical connection cable into the socket on the tractor.

Connect the hydraulic hose to the connection on the tractor single-acting control valve.

Press the keys on the operating console for 1.5 seconds.

Press this key. The indicator lamp illuminate green. Move the tractor hydraulics control lever to the floating position. (Fig.13)

When you assemble the device for the first time, the side mower weight is not available to help swivel the extension arm downwards. For this reason you will have to pull the extension arm down.

CONTROL TERMINAL

13

8 7

14 Fixing the Controller DISCO8550Plus/ 8550/8500C

Press both buttons (7) for the control box simultaneously, the red LED lamps (8) illuminate. Lower the left and right arms using the single-acting valve. When you assemble the device for the first time, the side mower weight is not available to help swivel the extension arm downwards. For this reason you will have to pull the extension arm down. (Fig.14)

15

16

17
