Transport position ............................................................ 7

68289

68288

67

68 Danger!

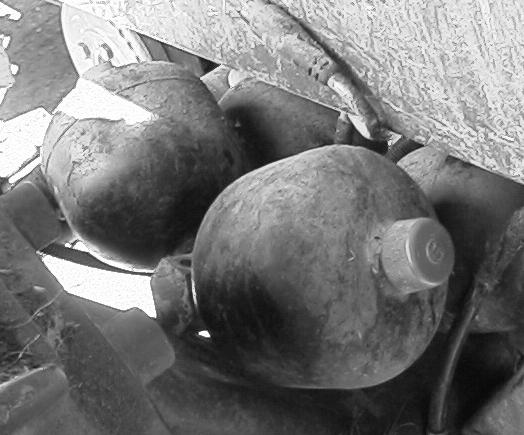

Take particular care when working with pressure accumulators! Pressure accumulators are under high pressure! Assembly and repair work to the hydraulic system with pressure accumulator may only be carried out after releasing the fluid pressure.

When operating front attachments with Autocontour (e.g. PICKUP), the removed pressure accumulators must be reinstalled. (Fig.67,68)

Note!

Conversion work on the pressure accumulators may only be carried out by CLAAS specialist workshops.

491

D

66581

69 Reinstating the central lubrication

If the connecting plugs of the central lubrication have been exchanged, it will be necessary to refit the old screw connections. If the lubrication interval has been adjusted, it will have to be reset to the old setting. To do this, turn the left-hand rotary switch (blue)(D). (Fig.69)

Miscellaneous

Additional weights

Remove the additional weights which were fitted to ensure adequate loading of the rear axle.

Feeder housing

Refit the feeder housing (see Assembly Manual).

Cut height indicator

Realign the cut height indicator according to the front attachment that has been fitted (see Assembly Manual).

1 2

4

R

3

67236C

5

6

1

7 Operation

OPERATION OF JAGUAR8700/900/890/ 870/850/830

Multifunction lever

(4) or (2) + (7)

–Swing the mower unit into the working position. (2) –Swing the mower unit into the transport position (1) –Raise left mower unit (1) + (7) –Lower left mower unit (2) –Raise middle mower unit (2) + (7) –Lower middle mower unit (3) –Raise right mower unit (3) + (7) –Lower right mower unit (5) –Increase mower unit relief –Raise all three mower units (6) –Reduce mower unit relief –Lower all three mower units (8) –Raise mower unit (headland) (9) –Lower mower unit (10) –Lower mower unit (headland)

The following functions must be selected from the operating terminal (–see »Control terminal«, page7.2): - Switch control system on/off (actuate for approx. 1.5 seconds).

- Set down middle mower unit on the side units which have been swung together. - Adjust mower unit relief.

67234C

2

R

492
