Matching the universal drive shaft....................................6

74224

3

5 4

6

X

1 Note!

The DISCO8550Plus / 8550 cannot be used as a pushed combination and can only be used as a towed front - rear combination (–see , page 619.).

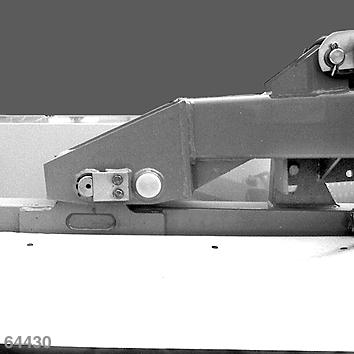

Fix the two side mower units onto the arms. To do this, fit the pin(3) into the outer drilled hole of the arms and secure with the strap(5). Fit the locking screws(4). (Fig.19)

Push on the universal drive shafts(6) with the clutch side to main gearbox and then onto the side mower units and secure with the clamping screws. Secure universal drive shaft against rotating by hanging in the chains. (Fig.20)

18

19

20

Suspension springs

Basic setting X = approx. 80 mm (Fig.21)

21
