Lowering the machine in the folded condition..................................................6

6 5

41

42

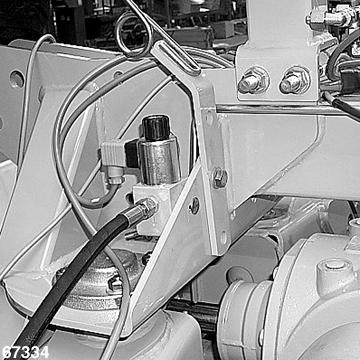

Run the cable to the mounting block. Screw the cable to the cover and the fitting block with retaining fitting (D=10) (M6x16)(5). Use the existing washers. (Fig.41)

The wiring loom is pre-assembled with the lighting bar using cable ties(6). Take up the excess cable length in the lighting bar with cable ties. (Fig.42)

74228

3

5 4

44

DISCO8550CPlus / 8550C/ 8550C-T/ 8500C

X

1

DISCO8550Plus / 8550

1 45 43

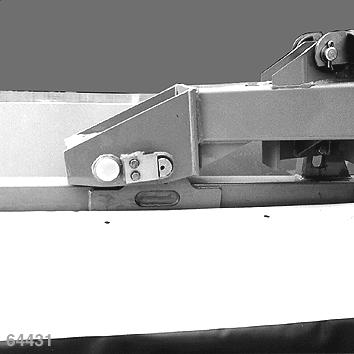

Fix the two side mower units onto the arms. To do this, fit the pin(3) into the inner drilled hole of the arms and secure with the strap(5). Fit the locking screws(4). Hook the front mower unit into the Accord coupling and secure. (Fig.44)

DISCO8550CPlus / 8550C/ 8550C-T/ 8500C

Basic setting X = approx. 80 mm (Fig.45)

DISCO8550Plus / 8550

Basic setting X = approx. 50 mm (Fig.46)

X

46

7

9

9 8

10

9 47

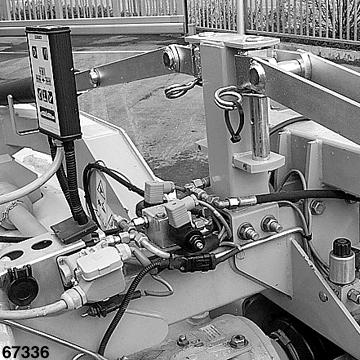

Dismantle the left(7) and right(8) hydraulic lines and close off the elbow unions(9) using plugs(10). (Fig.47,48)

Push on the universal drive shafts(11) with the clutch side to the main gearbox and then onto the side mower units and secure with the clamping screws. (Fig.49)

Push the front mower universal drive shaft on with the coupling side to the gearbox and then onto the front mower unit. Secure universal drive shaft against rotating by hanging in the chains.

74228

11 48

49

M04 0080 0947 117.5

Note!

When using the mower unit as a towed front - rear combination, the front mower unit requires universal drive shaft M04 0080 (0947 117.5)!

50
