truck to use only after it is fully operational. Refer to Chapter 2 Operating the truck for information on the truck’s controls.

Begin by turning the main key switch on.The truck should power up and indicate standby mode by illuminating the indicator LED. If the truck is equipped with an hour meter, the meter should activate and indicate the accumulated operating hours and the level of battery charge.Turn the main key switch off to test that the truck shuts down.

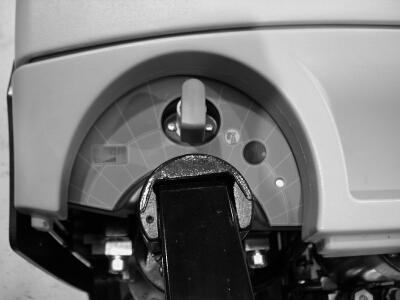

Figure 3.3. Control panel

The emergency stop button is integrated into the main key switch. To test the emergency stop button, first switch the truck on normally.With the truck active press the emergency stop button to check that it deactivates the truck immediately.To reactivate the truck, lift the button into the operating position.

3.4.2. Checking the battery charge

It is assumed that the truck’s battery is fully charged each day before daily maintenance and use.The battery can be charged with an external or internal charger. If an external charger is used, you should follow the instructions issued by the manufacturer or supplier of the charger.

If the internal battery charger is used, follow the instructions in Section 2.6 Charging the batteries. An internal charger is equipped with a charging progress indicator on the truck’s control panel. Ensure that the indicator indicates a fully charged battery before taking the truck into use.
