15.8 Recharging plug

This option is a replacement for a defective recharging plug.

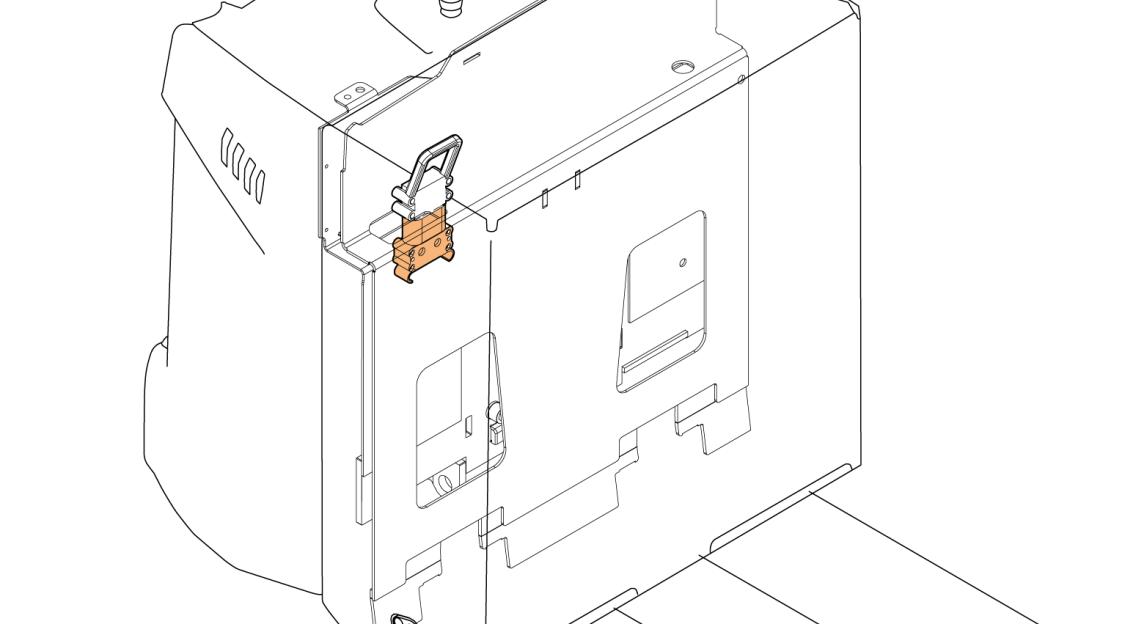

Figure 96. Recharging plug overview

NOTE: Make sure that you set the mechanical voltage selector to the correct battery voltage (24 V)! Also note the polarity of the battery cables.

Instructions for removing the recharging plug are provided below. Install the recharging plug by repeating the steps in reversed order.

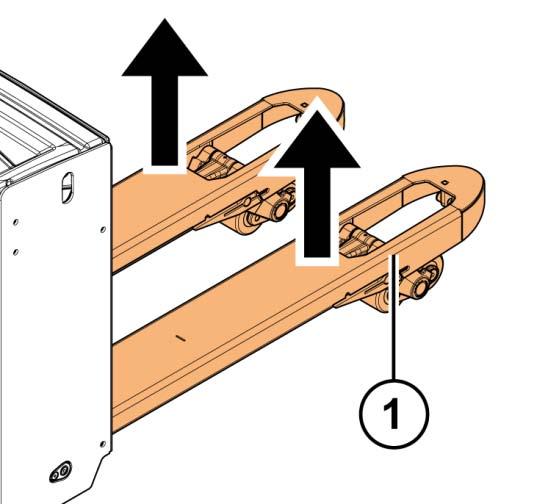

1. Lift the forks of the truck to their upmost position.

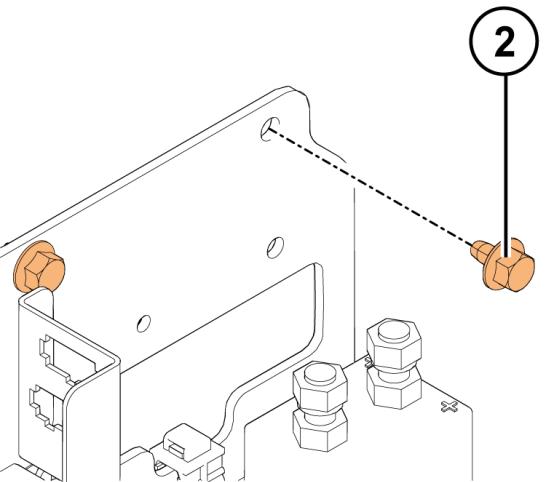

2. Remove the two 10 mm bolts from the electric panel.

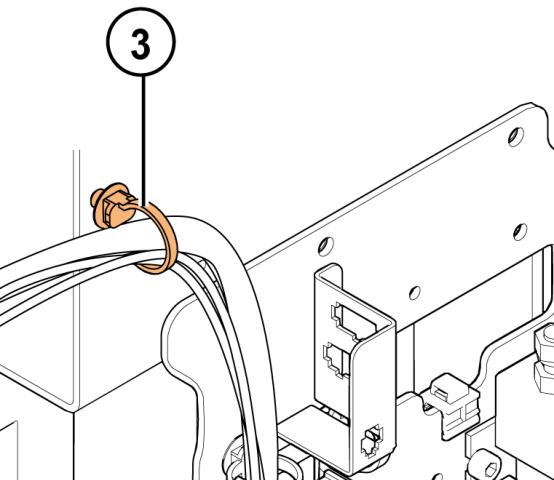

3. Remove the cable tie attaching the wires of the electric panel to the truck frame. Record the places of the connectors and wires you remove.

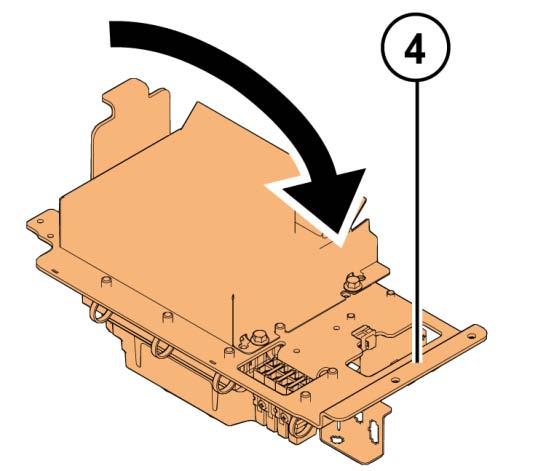

4. Turn the electric panel to the side to access the controller fan.

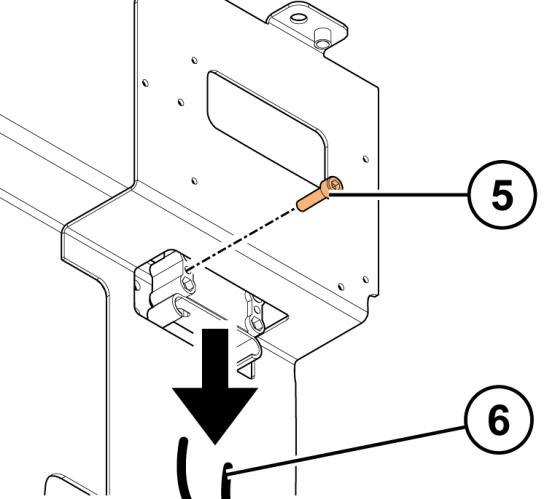

5. Remove the bolts of the battery connector. 6. Disconnect the battery connector cabling.

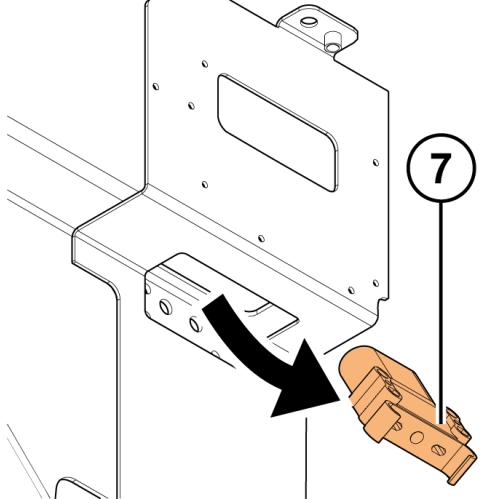

7. Remove the battery connector.
