15.9 Quick battery replacement
NOTE: The quick battery replacement option is installed to the truck during manufacturing, so this option needs to be selected prior to purchasing the truck.
The quick battery replacement device enables changing the battery without the use of a lifting device.
1. Open the battery cover. For instructions, see the section 5.4.4.

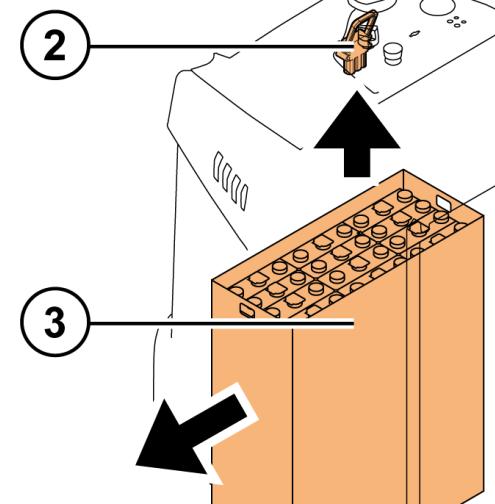

2. Disconnect the battery connector. 3. Pull out the battery
4. Insert a new battery (verify the battery type and voltage). 5. Connect the battery connector. Make sure that the battery cables remain completely safe within the frame of the truck. 6. Close the battery cover. The cover acts as a battery locking device. Make sure that the locking button returns all the way to the locking position.
Copyright© 2013 by MCFE. All rights reserved. Revision: B Document ID: 615025 193 (210)

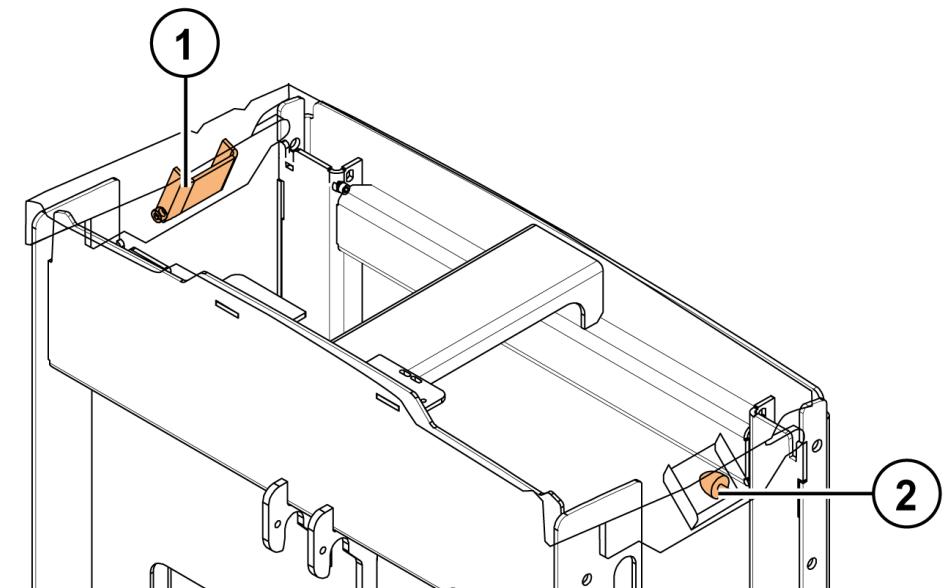

Figure 97. Rubber absorbers with the quick battery replacement option
1. Battery lock hinge 2. Rubber absorber

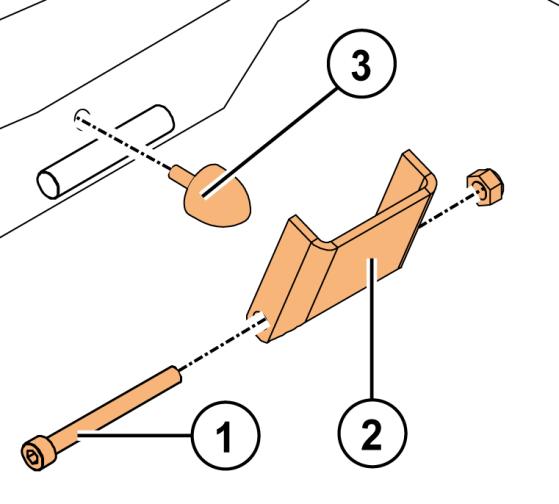

1. Remove the bolt holding the battery lock hinge in place. 2. Remove the battery lock hinge. 3. Remove the rubber absorber.
