15.17 Rubber bumper

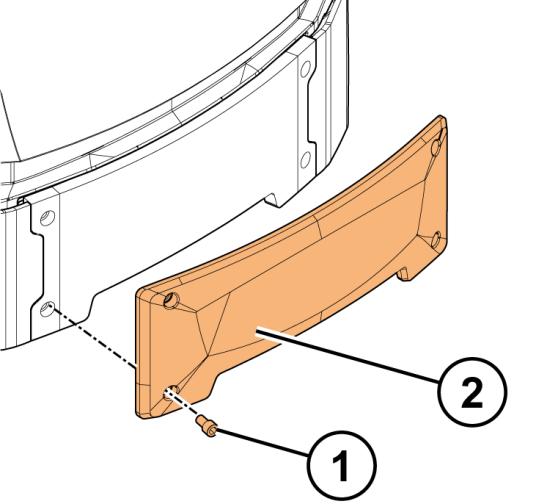

Figure 158. Rubber bumper overview

15.17.1 Install the rubber bumper

1. Remove the screws that hold the front bumper in position. 2. Install the rubber bumper on top of the front bumper.

3. Attach and tighten the screws that hold the bumpers in position.
