15.8 Battery connector + cables

This option is a replacement for a defective battery connector and cables.

NOTE: Make sure that you set the mechanical voltage selector to the correct battery voltage (24 V)! Also record the polarity of the battery cables.

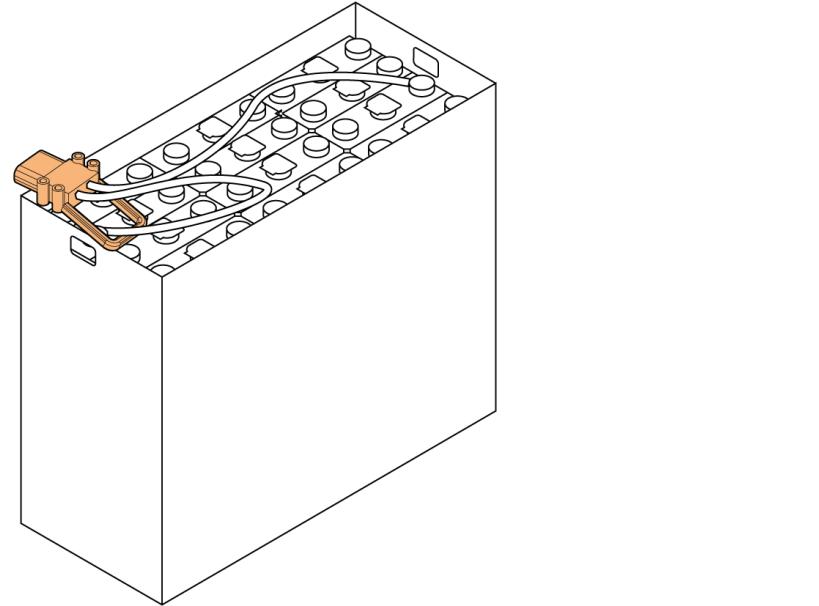

Figure 147. Battery connector + cables overview

The instructions on how to remove the battery connector are given below. To install the battery connector, do the steps in the opposite order.

1. Remove the screws that hold the battery connector in position. 2. Remove the cables. 3. Remove the battery connector.
