15.7 Padded backrest

NOTE: You can select the padded backrest option only for a truck that has the folding seat option.

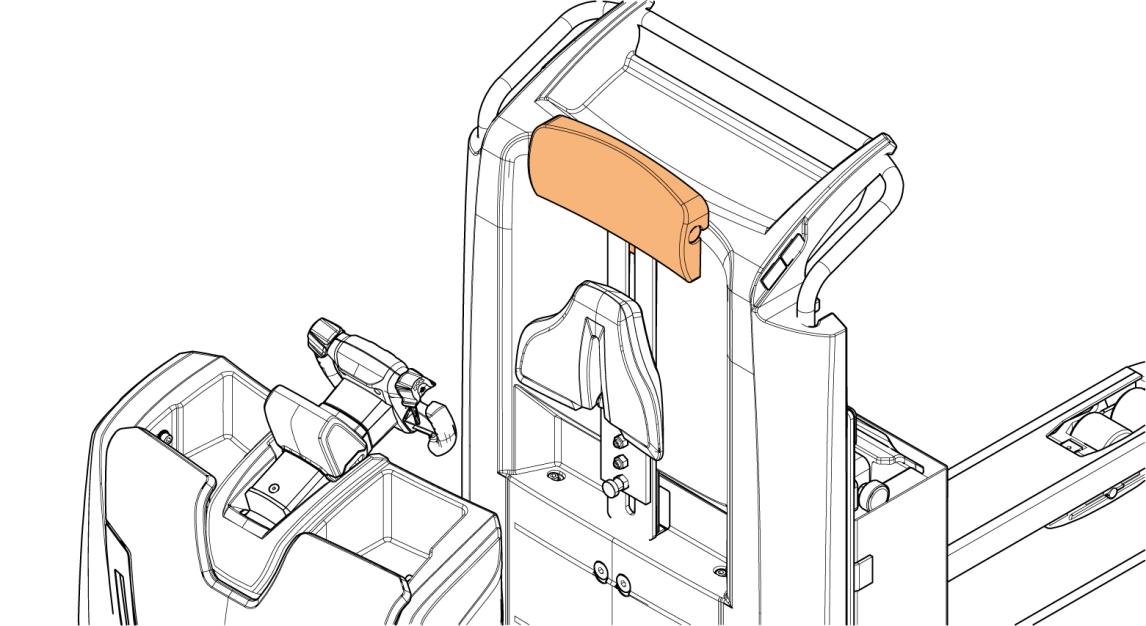

Figure 146. Padded backrest overview

The padded backrest option makes operation of the truck more ergonomic.

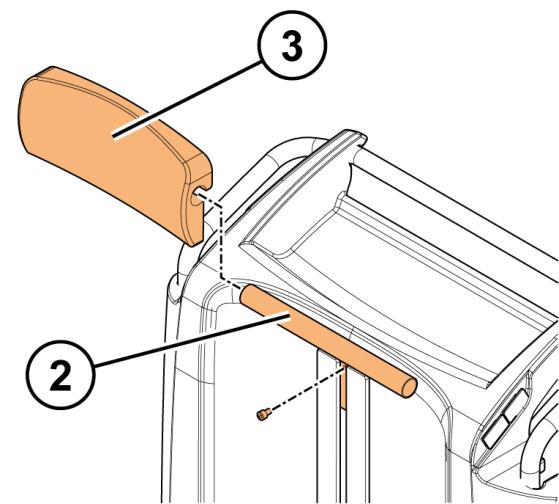

15.7.1 Install the padded backrest

1. Install the folding seat, see section 15.6.1.

2. Install the padded backrest to the mounting plate. 3. Install and tighten the screws that attach the padded backrest to the mounting plate.

Copyright© 2015 by MCFE. All rights reserved. Revision: A Document ID: 624877 306 (352)
