Inspection of the feeder .....................................................5

Maintenance

tram reducer Change oil in the tram reducer (Fig. 68).

 Clean all dirt and debris from and around the level and fill plugs.

 Rotate reducer until drain plug is at the 6 o’clock position and remove drain plug and allow the oil to completely drain.

 Clean and reinstall drain plug.

 Rotate reducer until plugs are at the 12 o’clock and 3 o’clock positions.

 Add oil (80W-90) through the fill hole until fluid begins to flow from the check plug.

 When filling the reducer, allow enough time for all cavities inside the reducer to fill.

 Install level and fill plugs.

 Do not overfill reducer.

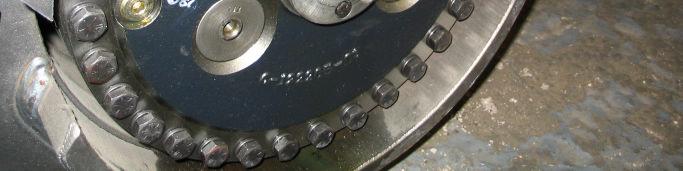

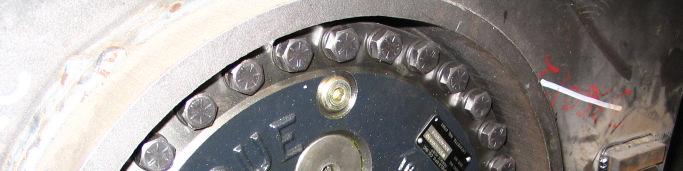

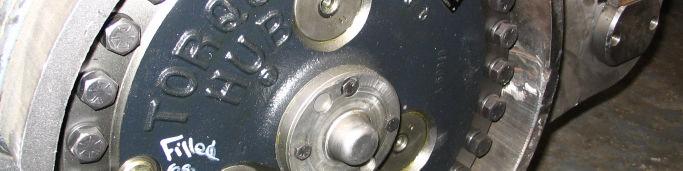

Fig. 68: Tram reducer oil change

Check plug location when at 3 or 9 o’clock Fill plug location when at 12 o’clock

To drain, position a plug at 6 o’clock
