SLEEVES FOR THREADED PINS

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

STEP 5 STEP 7

TRIM THIS EDGE

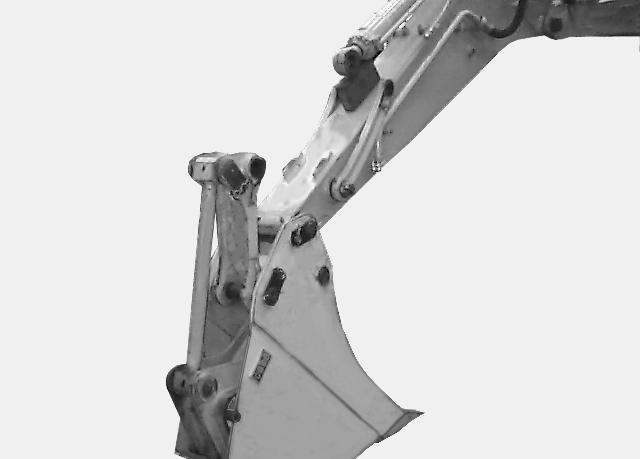

CD98D034 Start the engine and retract the bucket cylinder.

STEP 6

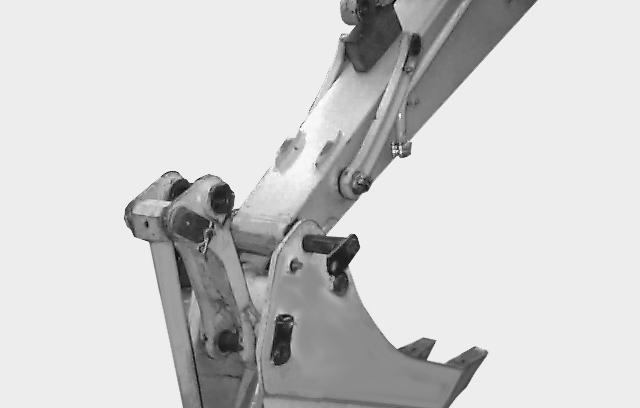

CD98D033 Using a screwdriver, remove the bucket/ dipper linkage pin locking pin. Remove the bucket/dipper connecting pin.

STEP 8

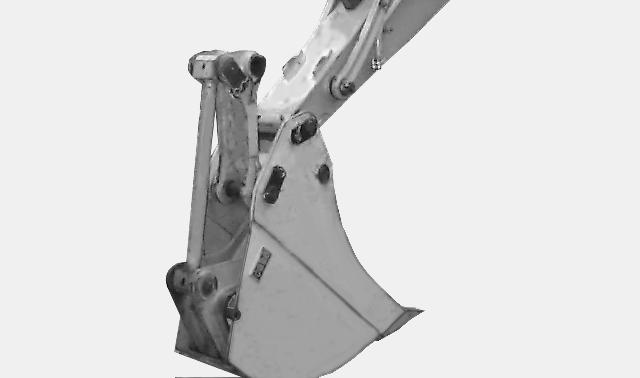

CD98D034 Raise the attachment to balance the bucket. Lower the bucket to the ground again, shut down the engine and remove the starter switch key.

CD98D032 Start the engine. Move the attachment controls so as to free the dipper from the bucket.

WARNING: The tube placed to immobilise the bucket ejector must never be removed while the bucket is not being used.

IMPORTANT: It is essential for the ejector to remain immobilised during any transport or handling of the bucket.

232
