FRONT LOWER WINDOW

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

WINDSHIELD

IMPORTANT: Before opening the windshield, make sure that the windshield wiper is pressing against the windscreen and that the forward and rear view mirrors are not folded back against the windscreen.

STEP 3

Opening

STEP 1

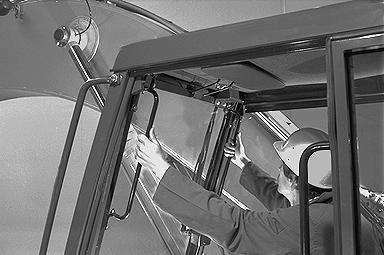

PE08220 Pull the two handles inward to unlock the windshield and pull backward.

STEP 2

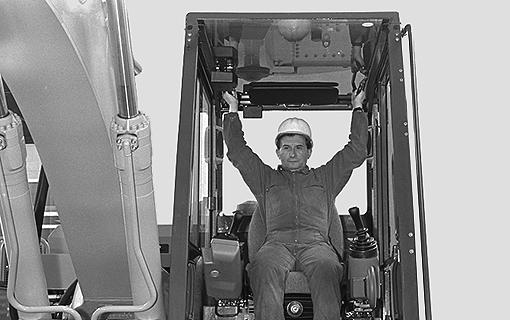

PH08302 Pull the windshield completely to the rear and then push the two handles outwards so as to lock the windshield in position. IMPORTANT: Make sure that the windshield is correctly locked.

Closing

STEP 1

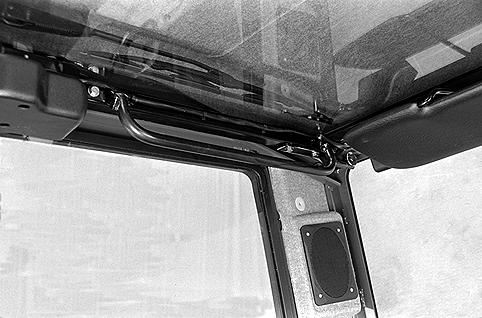

PH08210 Using the handles, bring the windshield into the horizontal position.

PH08302 Pull the two handles inward to unlock the windshield and push it forward.

64
