FRONT LOWER WINDOW

To allow better visibility in certain working conditions or for extra ventilation, the lower window can be removed.

STEP 2

NOTE: The window can be removed with the windshield in open or closed position.

STEP 1

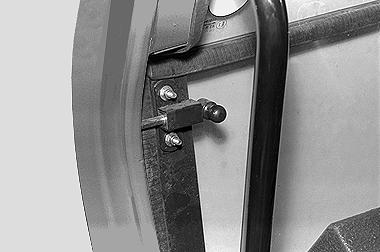

PG02525 Unlock the window by pulling the two latches at the ends inwards.

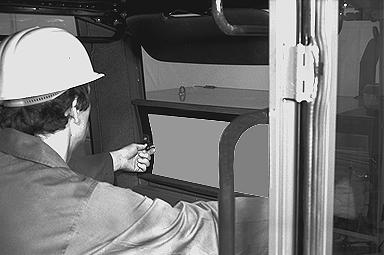

PE08129 Remove the window, move it to the rear of the cab and slot it into the two recesses on the right and left-hand pillars. NOTE: After a day’s work, remember to install the window again before leaving the cab.
