FLOW SELECTION MODE (CX210LC, CX210NLC and CX230 LOCKING THE LONG REACH ATTACHMENT FOR TRANSPORT

CD00E082 5. When removing the concrete crusher, place the supply valves in “S” position (closed) and plug the orifices.

TRIM THIS EDGE

117

TRIM THIS EDGE RIGHT PAGE

Alt= to hide template informationAlt+ to display template information

Template Name: OM_1_colTemplate Date: 1994_04_29

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

OFFSET BACKHOE BOOM OR HIGH FLOW (optional) (CX210LC, CX210NLC and CX230)

For correct pressure and necessary flow adjustment when using optional tools, see your CASE Dealer.

Offset backhoe boom configuration

CD00N004 1. Tilt the control on the left-hand control arm to the right for backhoe boom offset.

CD00N001 2. Use the pedal to offset the boom. See “Offset backhoe boom or high flow hydraulic circuit control pedal” in the “Controls/Instruments/Accessories” Section.

High flow configuration

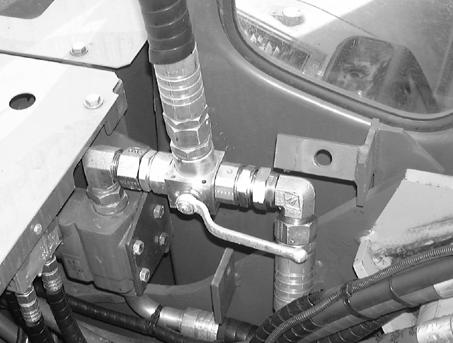

CD01A010 1. Make sure the flow selector valve is in vertical position so the oil returns to the control valve (for example when demolishing with concrete shears) or in horizontal position for the return oil to flow to the hydraulic reservoir via the filter (for example, when using a concrete crusher).

CD00N005 2. Tilt the control on the left-hand control arm to the left, for high flow, in order to cancel the offset function and obtain the optional tool function.
