G. Auto lubrication system (ALS

Auto lubrication system is available as an option upon request. Contact your authorized dealer.

a) Vibrating type ALS for CB80, CB140, CB210, CB380

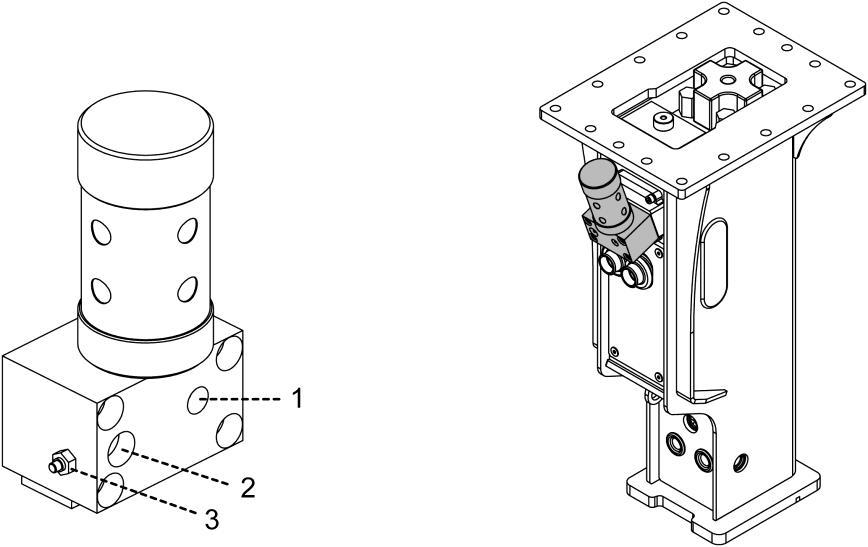

CB80

1. Grease refill port 2. Manual greasing port 3. Grease output regulator

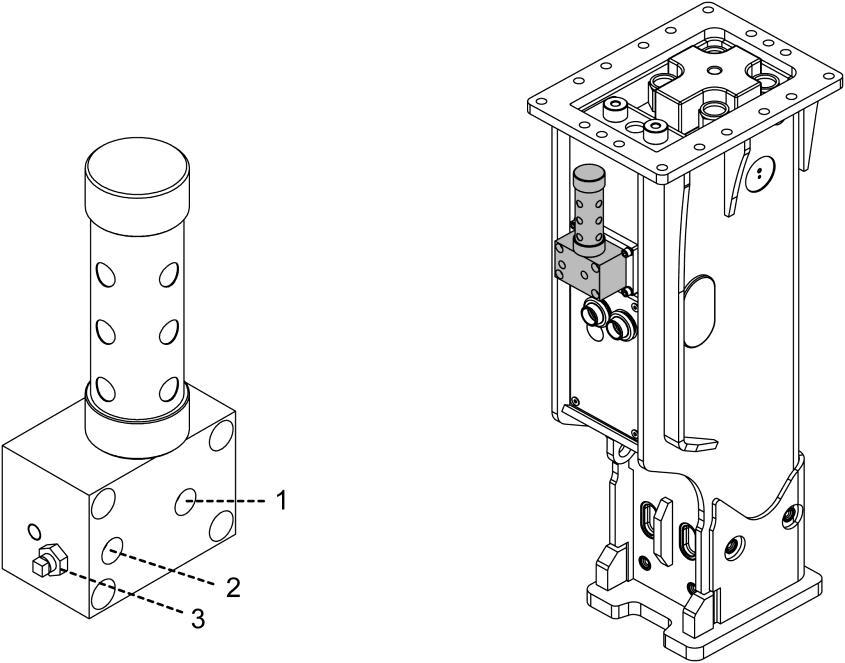

CB140 , CB210, CB380

• ALS is operated by vibration of the breaker during operation. Grease output can vary on the breaker working condition. • Grease output can be adjusted with regulator. • In case greasing by vibrating ALS is not sufficient despite of setting regulator to maximum output, apply manual greasing until the breaker has been fully lubricated.

b) Hydraulic motor type ALS for CB140, CB210, CB380

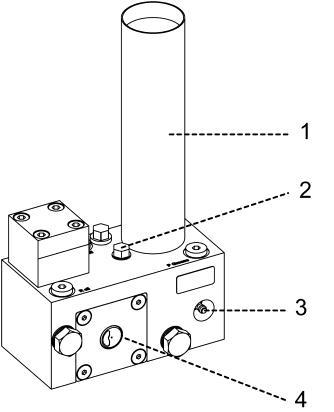

1. Breaker paste cartridge 2. Breaker paste output regulator 3. Manual greasing port 4. Visible indicator

• ALS is operated by oil pressure inside the breaker while the breaker is in operation. • Only genuine cartridges should be used. If the operator uses non-genuine one,

ALS will not perform as much as it has to and also may cause failure on ALS pump internal parts. • If hydraulic hose or grease hose is connected incorrectly, breaker paste will not be discharged and oil leaks. • Breaker paste output can be adjusted with regulator. • In case greasing from ALS is not sufficient despite of setting regulator to maximum output, apply manual greasing until the breaker has been fully lubricated. • Visible indicator (croissant shape in red) spins as long as ALS motor is working.

If the visible indicator doesn’t spin, apply manual greasing and contact your authorized dealer.
