MACHINE TRAVEL
STOPPING THE ENGINE
STEP 1 STEP 3
CS98M626 CK98M014

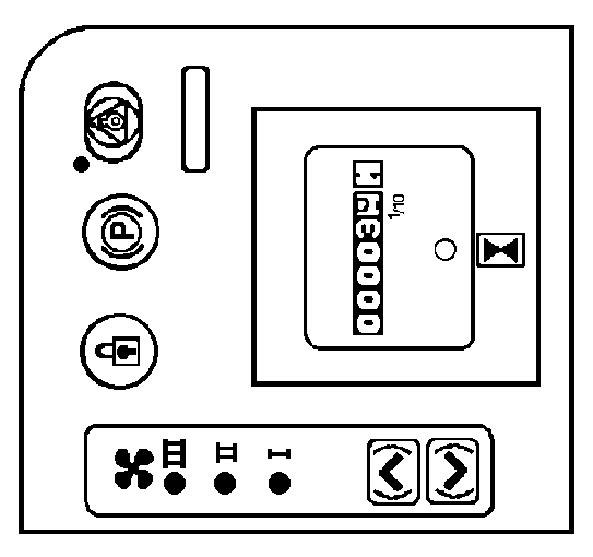

Press the control locking switch and the upperstructure swing locking switch on the left-hand control arm to make all machine functions inoperational.
STEP 2
CK98M014 Turn the starter switch key to the “OFF” position. IMPORTANT: When the engine is to be shut down for a considerable length of time, see “Parking the machine”.
In the event of an emergency
Turn the engine throttle button to low idle position and let the engine run for a minute or so.
IMPORTANT: In cold weather, let the engine run for about five minutes at idle speed. IMPORTANT: Always let the engine run at idle before switching off completely, except in emergency situations.
CS98M626 In the event of an emergency, or if it is not possible to stop the engine using the contact switch key, press the emergency shut-down switch on the left-hand control arm.
93
TRIM THIS EDGE
RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
MACHINE OPERATION Operating instructions
WARNING: Follow the operating instructions listed in this chapter. Any other practice which has not received the prior approval of the manufacturer is considered to be strictly forbidden.
Watch carefully and make sure you are aware of places where other people are working in your work area. Keep all other people away from the machine. Serious injury can result if these instructions are not followed.
Take note of the locations of pipes/cables before starting work. Electrical cables, gas and water pipes and other underground installations can cause serious injury. Modify your driving to suit working conditions (sloping or rough ground), the nature of the ground and weather conditions.
On steeply sloping ground, keep engine at maximum speed. When traveling at right angles to the slope, move on to the slope at low speed. Never reduce engine speed when traveling down slopes. Holes, obstacles, debris and other danger risks in the working area can cause serious injury. Inspect and note all possible risks before driving the machine in a new working area. Do not work close to a live overhead electric cable without first making sure that the following minimum distances are respected: Under 57 000 volts : 3 metres. Over 57 000 volts : 5 metres.
Never hit or push material with the sides of the bucket.
Never sweep the ground with the bucket to level rubble.
When operating the control levers, a whistling sound will be heard if the control lever is held in position while the corresponding cylinder is at the end of its stroke. In this case release the control lever.
The following operations are likely to damage the machine. You are therefore advised to avoid them: Excavation using the weight of the machine as a force of impact. Excavation using the machine’s travel force.
If earth or mud stays stuck inside the bucket, open and close the bucket several times so as to loosen the earth or the mud.
After work, remove any mud and clean the machine.
94
TRIM THIS EDGE
LEFT PAGE
When using the attachment, take care not to hit the dozer blade with the bucket (if fitted). Take care not to hit the dozer blade against rocks (if fitted). When using the upperstructure swing, never change the direction of swing too suddenly. If the use of the dozer blade is not required, make sure that it is always in the maximum raised position (if fitted). When carrying out back-filling operations, operate the two travel levers with the lefthand, while manipuling the dozer blade control lever with the right-hand (if fitted). When climbing up a slope, place the bucket about 40 cm above the ground. When traveling down a slope it is recommended to place the bucket on the ground to prevent the machine from sliding. Avoid turning the machine on steep slopes. Never swing the upperstructure on slopes of 15° in the direction of travel or 10° at right angles to the direction of travel.
Operation
1. Take up position in the operator’s seat and adjust it so that all the controls are readily accessible. See
“Operator’s seat” in the “Controls/
Instruments/Accessories” Section.
Then fasten your safety belt. 2. Make sure the cab door is firmly latched in open or closed position. 3. Start the engine, taking into consideration the prevailing weather conditions.
See “Starting the engine”. 4. Check all instruments are operating correctly. 5. Sound the horn.
6. Lower the control cancellation lever and the left-hand control arm.
7. Press the control locking switch and the upperstructure swing locking switch to make all machine functions operational once more. See intems 4 and 5 under “Left-hand control arm” in the “Controls/Instruments/Accessories” Section.
8. Try out all the controls in a safe, open area. TRIM THIS EDGE
