TRIM THIS EDGE Use the outside handles to open the doors. To hold the doors, open, remove the strut from its storage position and install it in the hole provided. When closing, put the strut back into storage position.

Use the starter switch key to lock the side doors. WARNING: Always install the strut when the doors are open. !

WARNING: Never leave tools or other objects behind the side doors.

WARNING: Before undertaking any travel, make sure the side doors are properly closed.

ENGINE HOOD

Opening Closing

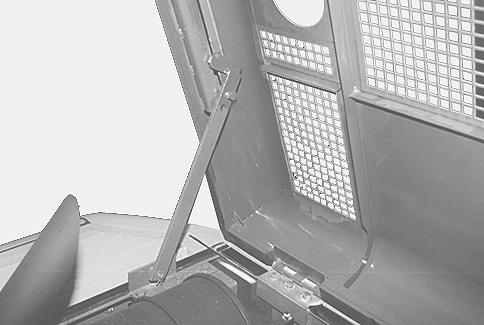

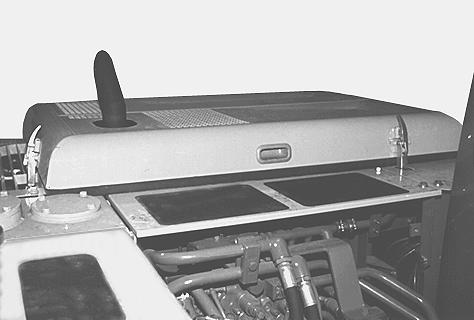

CP98N015 CP98N016

Unlatch the left-hand and front side fasteners and then raise the hood completely until the strut locks automatically in position. Press the strut locking system, tilt the hood downwards and close the fasteners.

NOTE: To lock the hood, lock the lefthand fastener with the starter switch key.

WARNING: Once the hood is completely opened, make sure the locking system is correctly engaged. WARNING: Before undertaking any travel, make sure the hood is properly closed.

74
