LOAD HANDLING EYE
FRONT STORAGE BOX
Use the handle to open the storage box and tilt the cover completely upwards. To close, move the support strut back slightly and tilt the cover downwards. NOTE: Use the starter switch key to lock the storage box cover.
CP99B003 This is to the right, in front of the upperstructure frame. It is used for storing emergency parts. The storage box also gives access to the windshield washer reservoir.
WARNING: Before undertaking any travel, make sure the storage box cover is properly closed.
SIDE DOORS

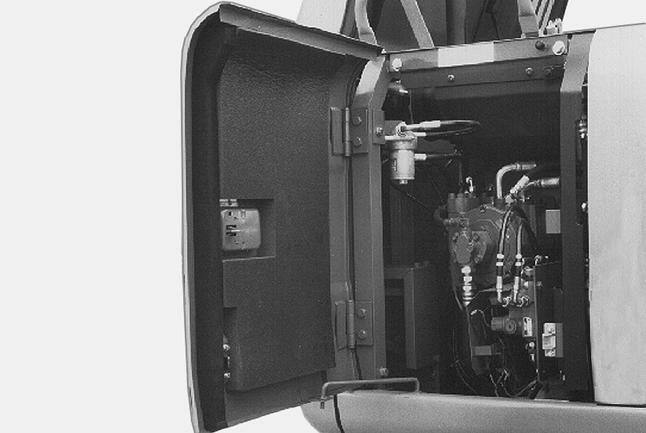

Right-hand door
A24672 The right-hand door gives access to a number of hydraulic components (filters, etc...).
Left-hand door
CP98N014 The left-hand door is mainly for obtaining access to the batteries, air filter, expansion reservoir, etc...
73
