FUEL TANK FILLER PUMP
WARNING : Never weld hooks or lugs on the bottom plate of the bucket for handling operations. The only attachment point which may be used is the connecting rod eye or the connecting rod/ bucket linkage pin.
WARNING : Never use the connecting rod eye or the connecting rob/ bucket linkage pin if the bucket has been removed.!
Never use the ring in the quick coupler (optional), if the machine is fitted with a quick coupler. The only load fixing point is the connecting rod eye or the connecting rod/bucket linkage pin.

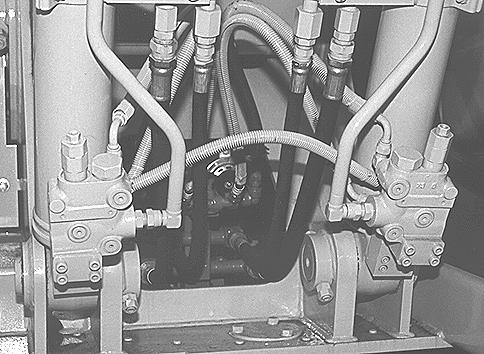

SAFETY VALVE (optional)
The role of the safety valve is to stop the attachment from dropping due to valve spool leakage in neutral position or in the event of a line or hose accidentally breaking. In the latter event, they also ensure that the attachment may be lowered gently to the ground. See “Load handling” in the “Operating Instructions” Section.
CP98N018 TRIM THIS EDGE
77
