JOB SITE TRAVEL

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

P2A+2A Version

STEP 1

2 1

STEP 3

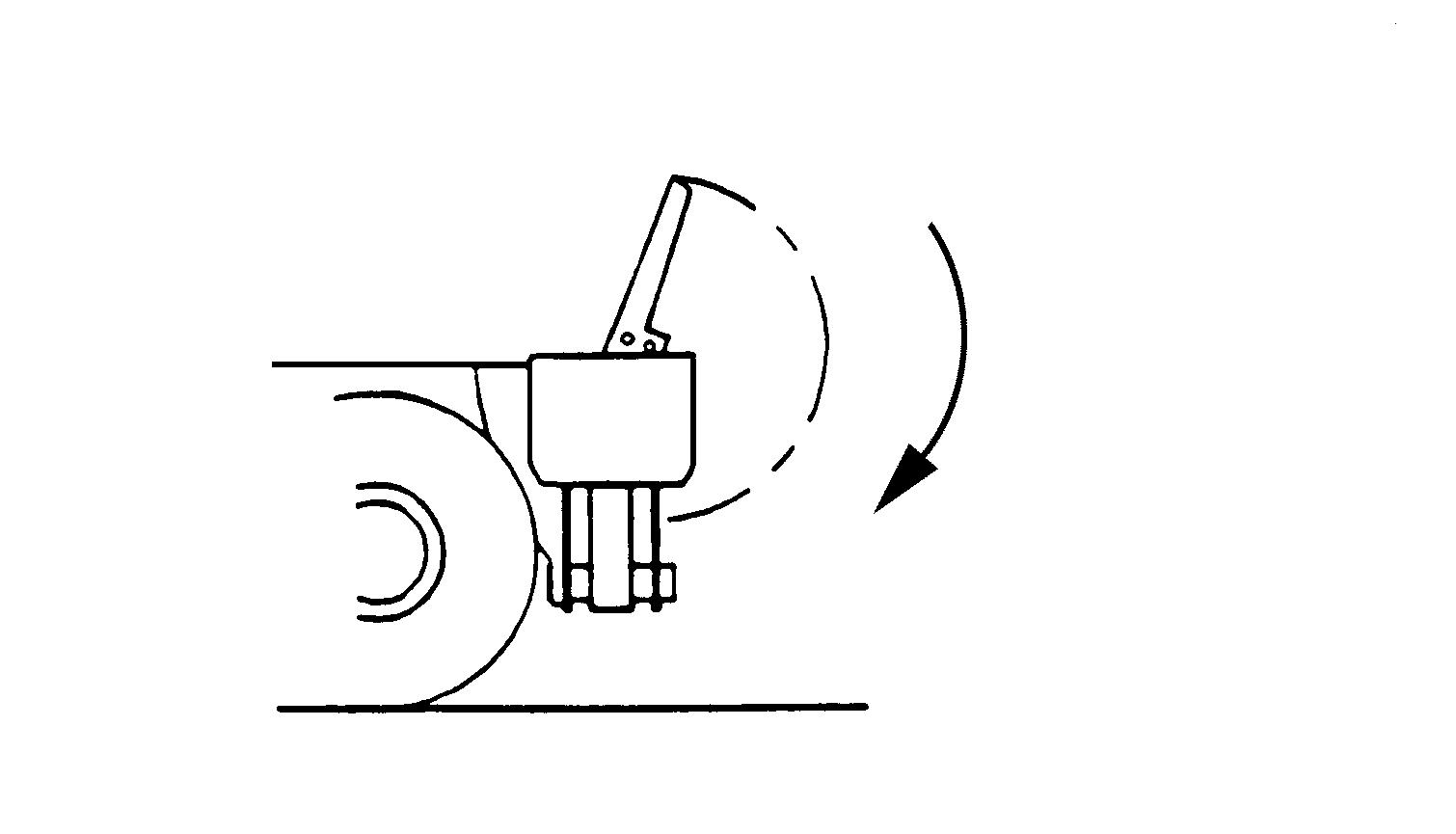

PDH1082 Turn the clamshell so that the clamshell teeth are parallel with the face of the stabilizer beam. Install the clamshell support (1) on the fittings provided for that purpose on the beam. Install the four retaining pins (2) and their split pins.

STEP 2

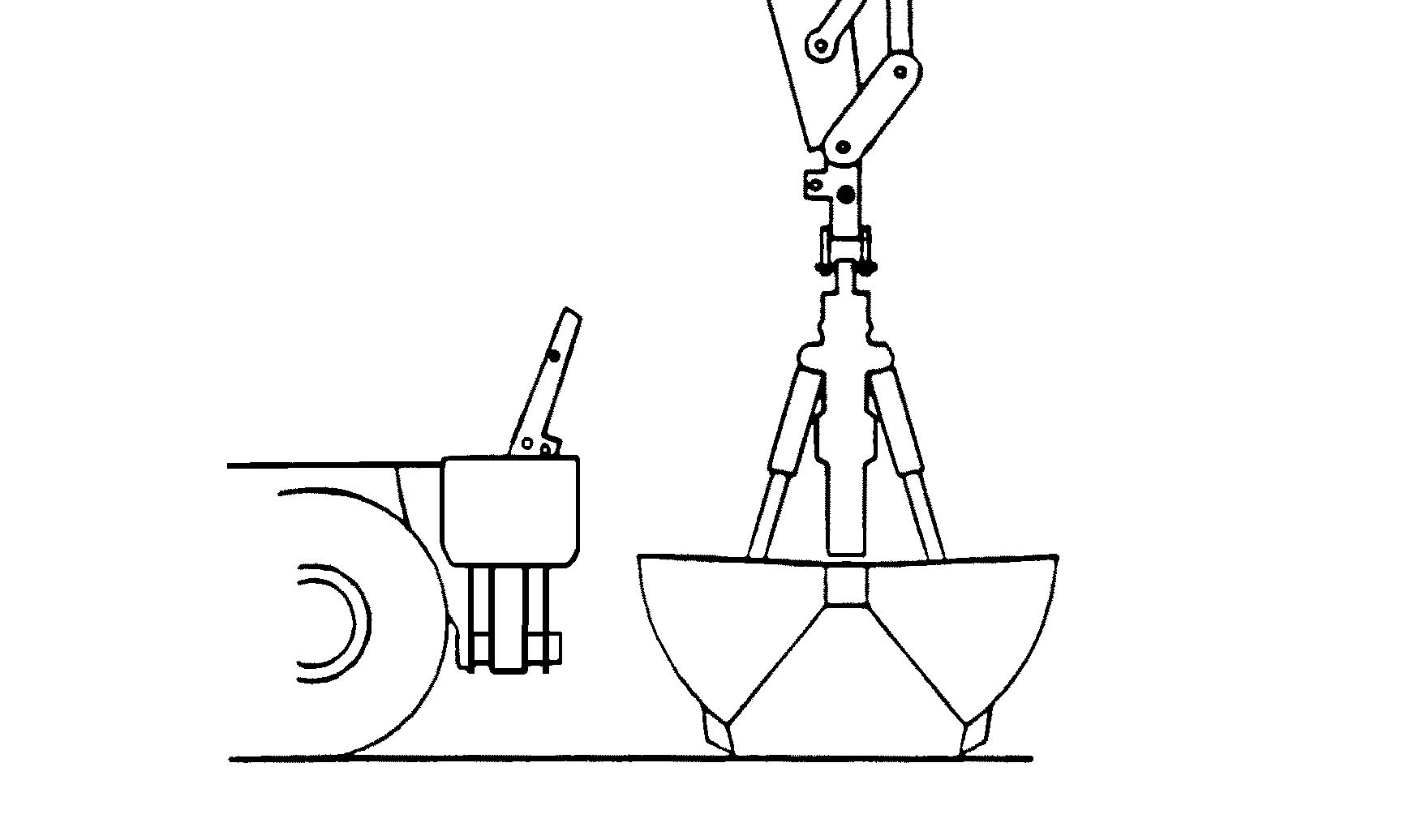

PDH1084 Using the boom and dipper, bring one shell of the clamshell in contact with the front support on the undercarriage.

STEP 4

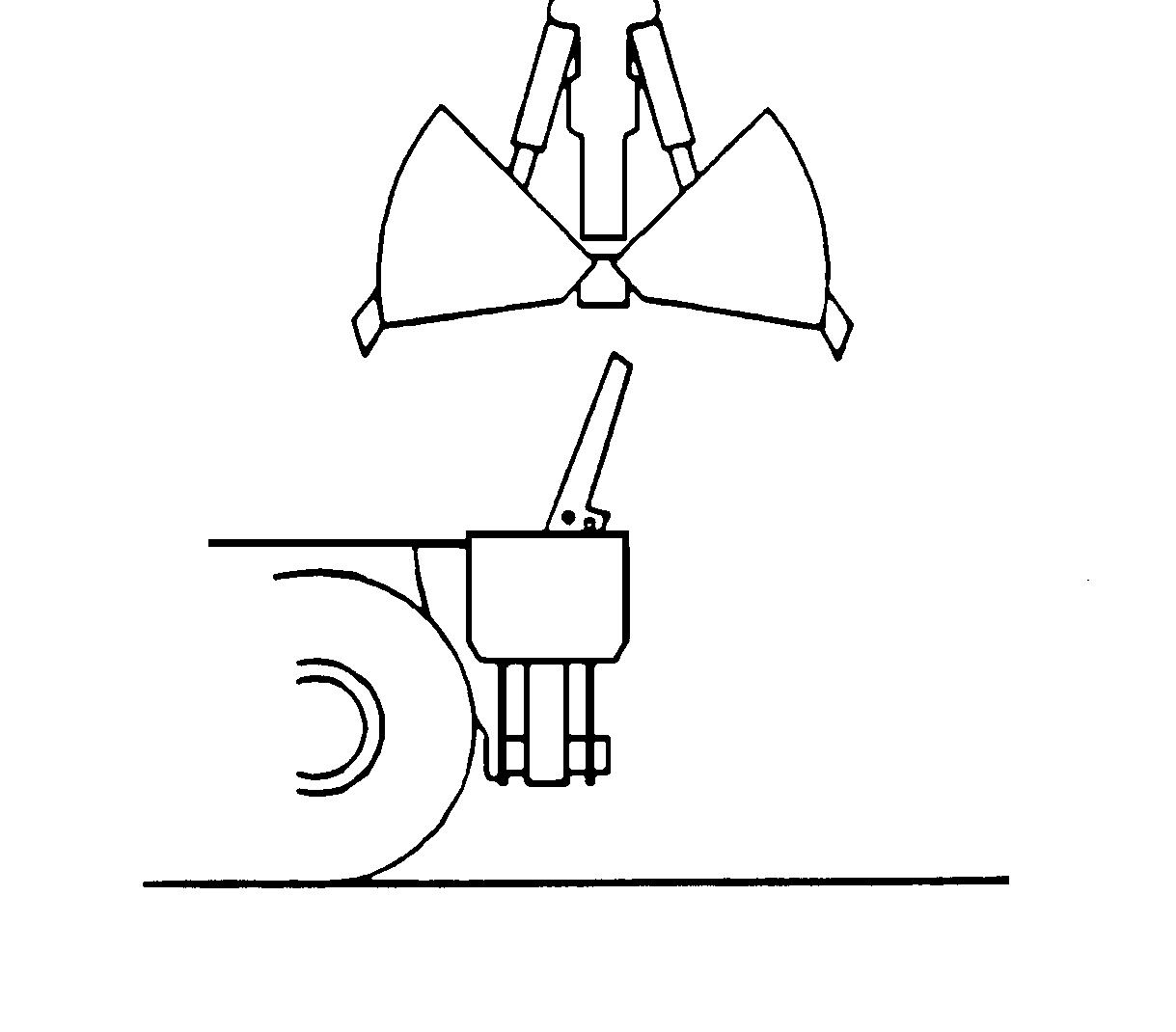

PDH1083 Raise the clamshell and open it so that it is above the support.

PDH1085

With adjustable boom

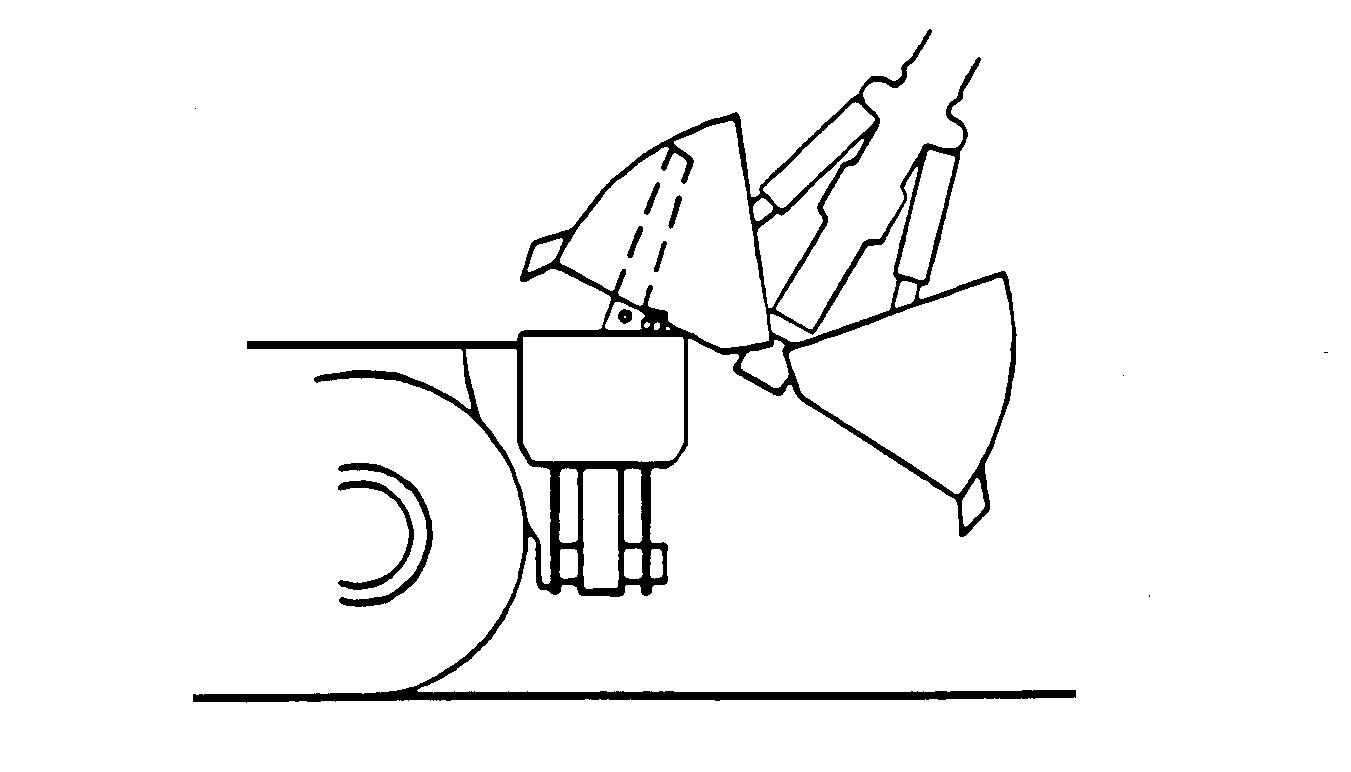

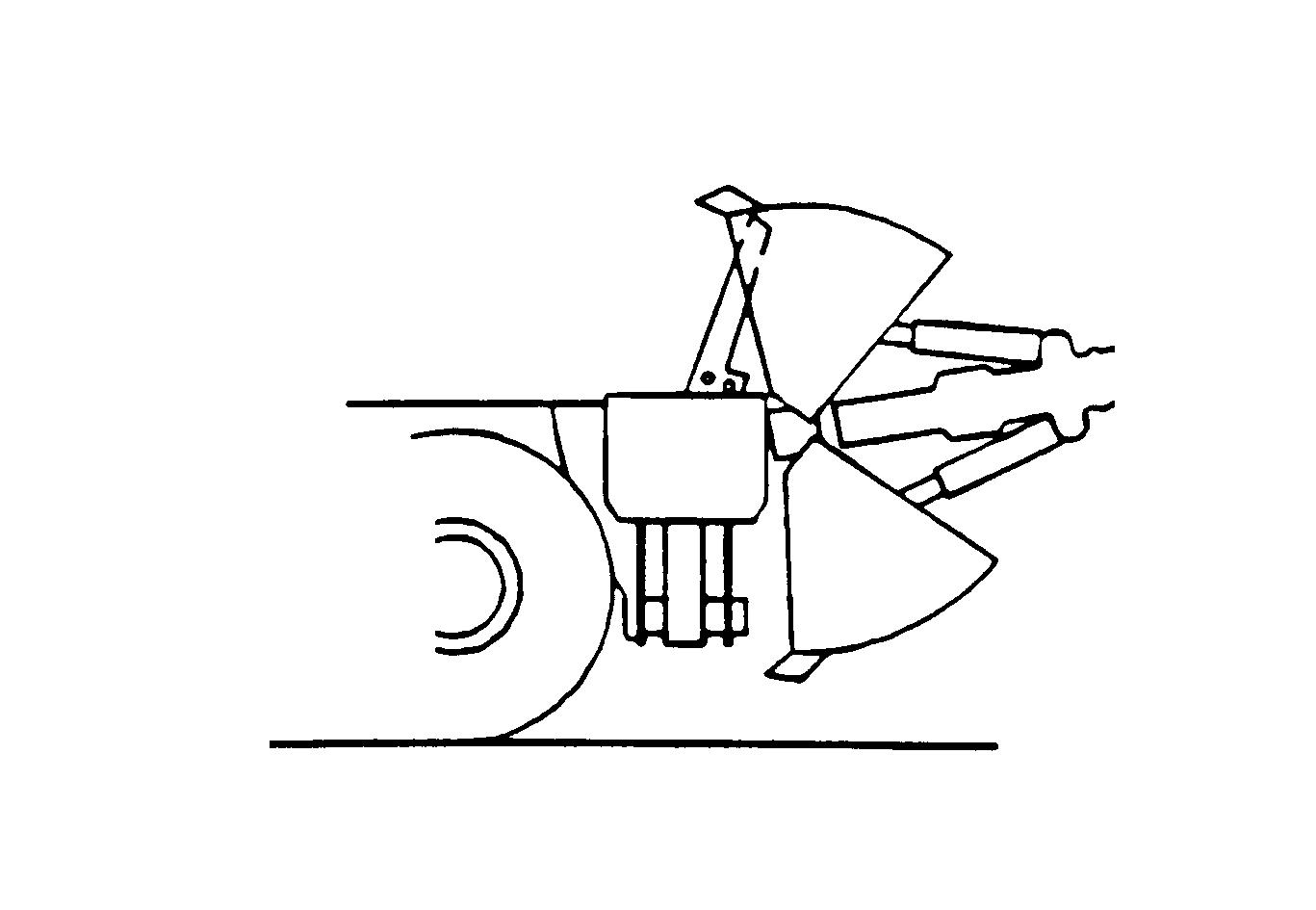

Swing the clamshell around the support by operating the boom cylinders and dipper cylinders simultaneously. The attachment will be within the approved road travel overall dimensions when the marks on the boom cylinder are aligned, when the position index markers on the dipper cylinder are aligned and when the clamshell beam is in contact with the stabilizer beam.

176

TRIM THIS EDGE LEFT PAGE

With articulated boom

Extend the boom cylinders and swing the clamshell around the support by operating the boom articulation cylinders and the dipper cylinders simultaneously. The attachment will be within the approved road travel overall dimensions when the boom cylinders and boom articulation cylinders are completely extended and the clamshell beam is in contact with the stabilizer beam.

STEP 5

Lock the boom and dipper positions using the boom and dipper locking valves. See “Boom locking valve” and “Dipper locking valve” in the “Controls/Instruments/ Accessories” Section.

STEP 6

1

P2AL Version

STEP 1

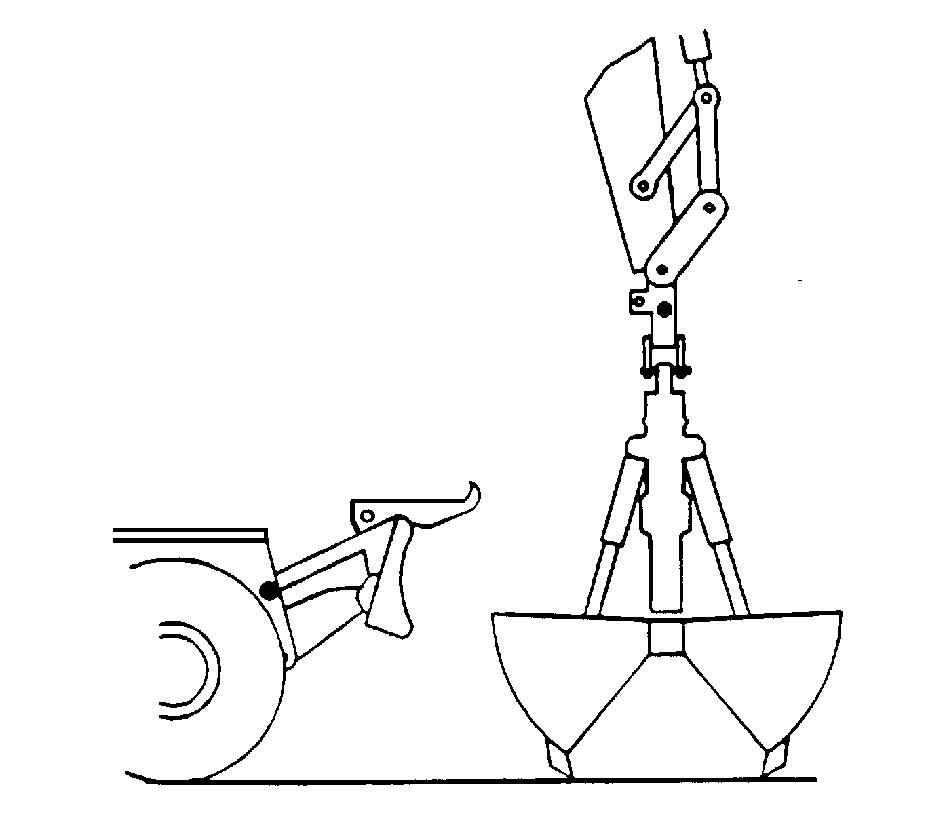

PDH1087 Turn the clamshell so that the clamshell teeth are parallel with the face of the blade. Install the support on the blade after pulling the retaining pins out of the blade support rods. Reposition the retaining pins and split pins in their initial position.

STEP 2

PDH1086 For the work position, remove the pins (1) and then tilt the support forwards. Lock the support with one of the pins.

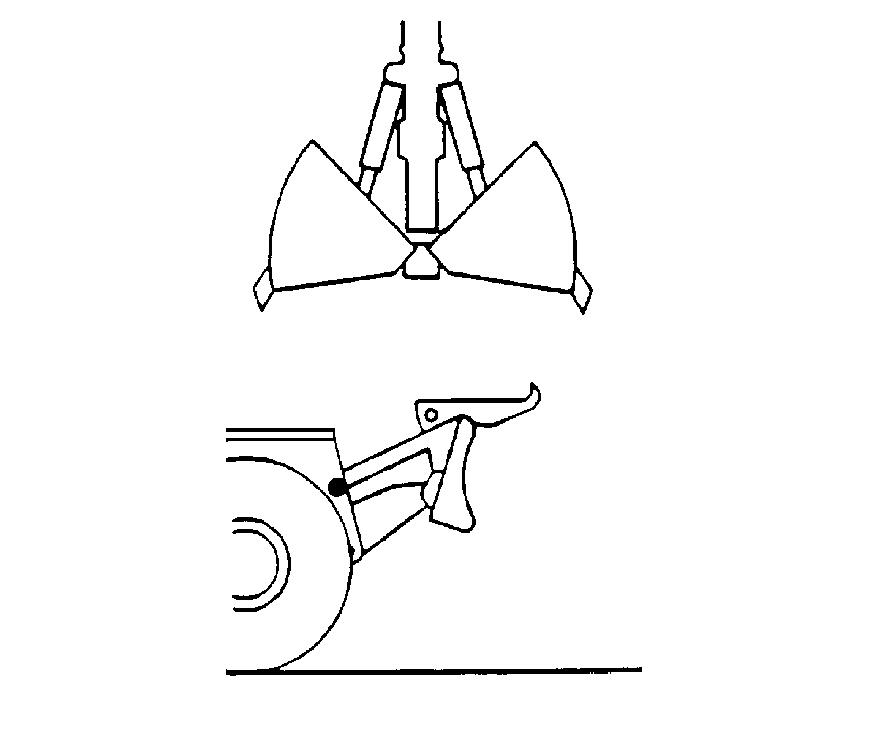

PDH1088 Raise the clamshell and open it so that it is above the support. TRIM THIS EDGE

177
