STABILIZER PADS
ACCESS PANELS
Tools required
-One 17 mm wrench for hexagonal head screws The access panels must be removed to perform service work.
CD99G059 For better access to components, place the upperstructure at right angles to the undercarriage.
Center panel

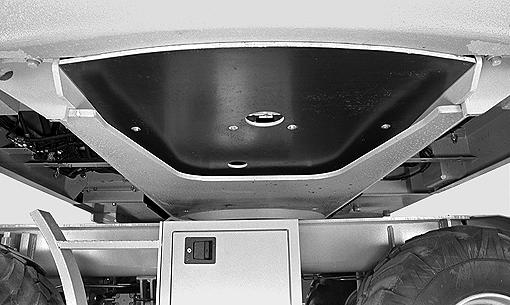

PG02727 To remove the center panel, release the lever located in the panel hole and pull the panel backwards.
Side panels
PH08006 The center panel provides access mainly to the engine components.
PH08003 The left-hand panel provides access to the anti-surge valve and to the hydraulic reservoir shut-off valve and drain plugs. TRIM THIS EDGE
