ELECTRICAL SOCKET
ACCESS PANELS
Tools required
-One 17 wrench for hexagonal head screws The access panels must be removed to perform service work.

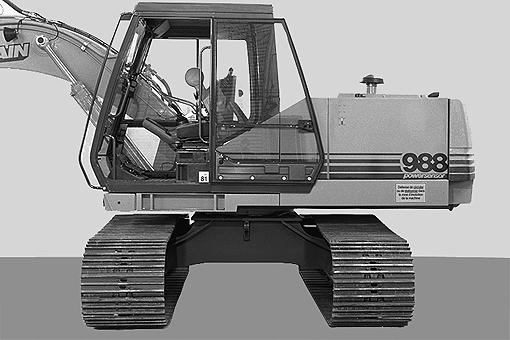

PH08215 To gain better access to components, place the upperstructure at right angles to the undercarriage.
Central panel

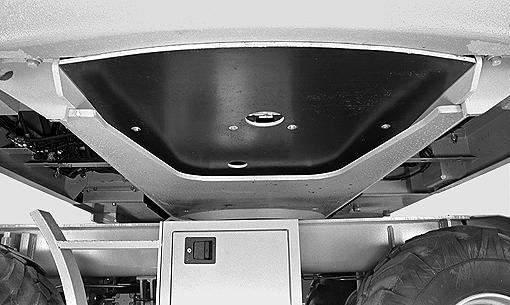

PG02727 To remove the central panel, unlock the handle located in the panel hole and pull the panel backwards.
Side panels
TRIM THIS EDGE
PH08006 The central panel gives access mainly to the engine components.
PH08003 The left-hand panel gives access to the anti-surge valve, the shut-off valve and to the hydraulic reservoir drain plugs.
75
