01.400
001

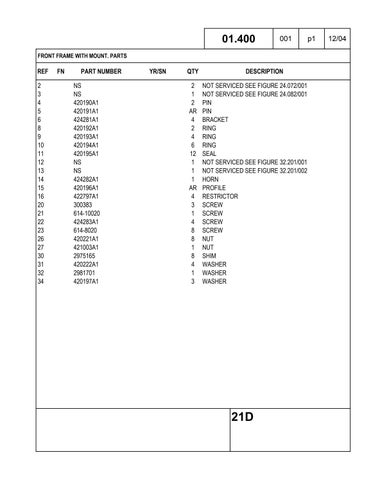

FRONT FRAME WITH MOUNT. PARTS
REF 2 3 4 5 6 8 9 10 11 12 13 14 15 16 20 21 22 23 26 27 30 31 32 34
FN
PART NUMBER NS NS 420190A1 420191A1 424281A1 420192A1 420193A1 420194A1 420195A1 NS NS 424282A1 420196A1 422797A1 300383 614-10020 424283A1 614-8020 420221A1 421003A1 2975165 420222A1 2981701 420197A1
YR/SN
QTY 2 1 2 AR 4 2 4 6 12 1 1 1 AR 4 3 1 4 8 8 1 8 4 1 3
DESCRIPTION NOT SERVICED SEE FIGURE 24.072/001 NOT SERVICED SEE FIGURE 24.082/001 PIN PIN BRACKET RING RING RING SEAL NOT SERVICED SEE FIGURE 32.201/001 NOT SERVICED SEE FIGURE 32.201/002 HORN PROFILE RESTRICTOR SCREW SCREW SCREW SCREW NUT NUT SHIM WASHER WASHER WASHER
21D
p1
12/04
