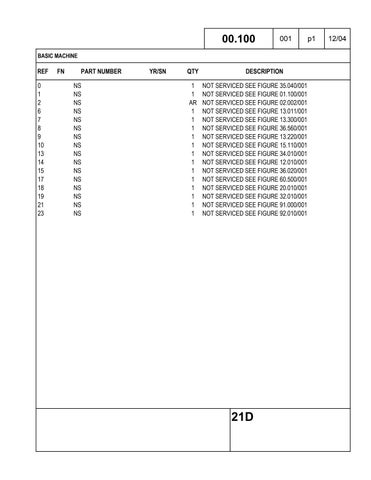

00.100

001

BASIC MACHINE

REF 0 1 2 6 7 8 9 10 13 14 15 17 18 19 21 23

FN

PART NUMBER NS NS NS NS NS NS NS NS NS NS NS NS NS NS NS NS

YR/SN

QTY 1 1 AR 1 1 1 1 1 1 1 1 1 1 1 1 1

DESCRIPTION NOT SERVICED SEE FIGURE 35.040/001 NOT SERVICED SEE FIGURE 01.100/001 NOT SERVICED SEE FIGURE 02.002/001 NOT SERVICED SEE FIGURE 13.011/001 NOT SERVICED SEE FIGURE 13.300/001 NOT SERVICED SEE FIGURE 36.560/001 NOT SERVICED SEE FIGURE 13.220/001 NOT SERVICED SEE FIGURE 15.110/001 NOT SERVICED SEE FIGURE 34.010/001 NOT SERVICED SEE FIGURE 12.010/001 NOT SERVICED SEE FIGURE 36.020/001 NOT SERVICED SEE FIGURE 60.500/001 NOT SERVICED SEE FIGURE 20.010/001 NOT SERVICED SEE FIGURE 32.010/001 NOT SERVICED SEE FIGURE 91.000/001 NOT SERVICED SEE FIGURE 92.010/001

21D

p1

12/04
