INSPECTION AND MAINTENANCE OF THE QUICKCOUPLER

ENGINE ALTERNATOR BELT AND FAN Service specifications

Visual inspection........................................................Every 10 hours or every day Check drive system.....................................................................Every 1000 hours Check belt tension.......................................................................Every 1000 hours

Tools required

-One 13 mm wrench for hexagonal head screws -One 15 mm wrench for hexagonal head screws

STEP 1 STEP 3

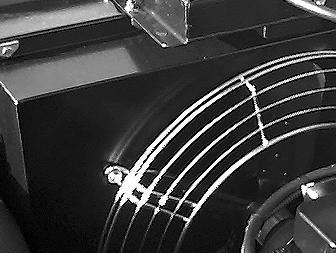

Remove the fan guard.

STEP 2

CD98E013

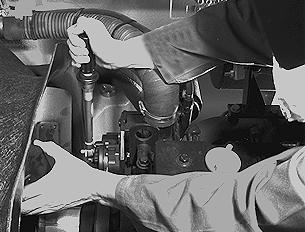

PE06828 Loosen the tension roller and remove the belt. Check that the tension roller and pulley are in proper working order (the pulley should move freely).

PE06831 Check that the fan is in proper working order (the hub should turn freely without excessive play).

STEP 4

Check the condition of the belt. Replace it if it is worn or damaged and install the belt.

STEP 5

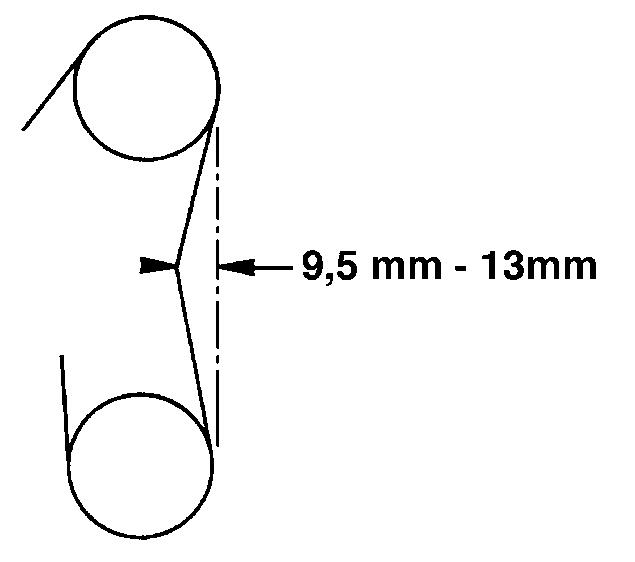

PDE0090 Measure the slack along the longest straight section of the belt. Maximum slack: 9.5 to 13 mm. Install the fan guard.

269
