STEP 2

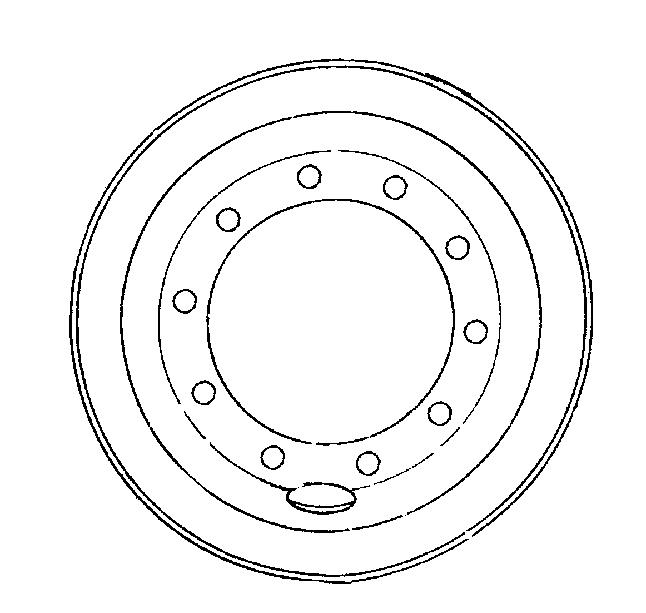

CS99C623 Remove the two D138492 nuts from the tool box, install them temporarily in diametrically opposed positions with a 36mm hexagonal head wrench and check the rubber twinning ring is properly centred.

STEP 3

Oil the threads of the eight wheel nuts. Install and tighten the eight nuts with a 33mm hexagonal head wrench to a torque of 54 ± 8 m daN.

STEP 4

Remove the two D138492 nuts and put them back in the tool box.

STEP 5

Oil the threads of the two remaining wheel nuts. Install and tighten the two nuts to a torque of 54 ± 8 m daN.

STEP 6

Remove the support blocks from under the front or rear drive axles and lower the machine to the ground.

Changing a wheel (4wheel configuration)

Tools required

-One 33 mm wrench for hexagonal head screws (delivered with machine) 1Park the machine on flat, firm level ground, which is clear of all obstacles and remove the starter switch key. 2Loosen the retaining nuts on the wheel to be removed. 3Start the engine and use the stabilizers, dozer blade or attachment (depending on machine version) to raise the machine so that the wheels are not in contact with the ground.

Stop the engine and remove the starter switch key. 4Place blocks under the axle of the wheel to be removed.

5Remove the wheel nuts and then remove the wheel.

6Install a new wheel, making sure that the tread is pointing in the same direction as that of the wheel removed.

7Install the wheel nuts and tighten them to a torque of 54 ± 8 m daN. 8Remove the blocks from under the axle.

9Lower the machine to the ground. NOTE: Make sure that the new tyre is inflated to the correct pressure. Reinflate it, if necessary.
