WORKING INSTRUCTIONS
STEP 6
1

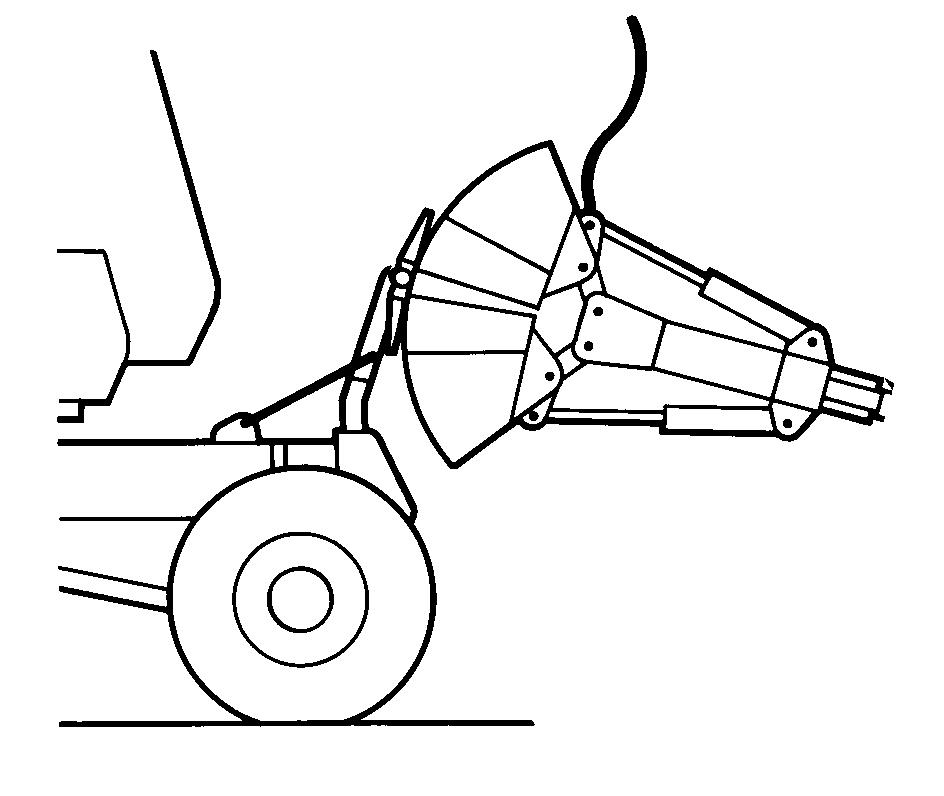

PDH0187 Hook the teeth of both shells onto the bar (1) by operating simultaneously the controls for boom, boom articulation, dipper and clamshell closing. The attachment will be in the road transport maximum overall dimension position when the boom and boom articulation cylinders are extended to the maximum. Then raise the dozer blade (2AL version)
STEP 7
Lock the boom and dipper positions by means of the boom and dipper locking valves. See "Boom locking valve" and "Dipper locking valve" in the "Controls/ Instruments/Accessories" Section. TRIM THIS EDGE
173
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
JOB SITE TRAVEL
WARNING: Before driving on the job site, the stabilizers and the dozer blade (if equipped) must be raised completely.
NOTE: After travelling on the road, remove all the road safety devices before driving on the job site.
STEP 1 STEP 3
PH07328 Start the engine. Press down the brake pedal and select job site speed, “Position1”, on the control panel (lefthand indicator lamp comes on).
STEP 2

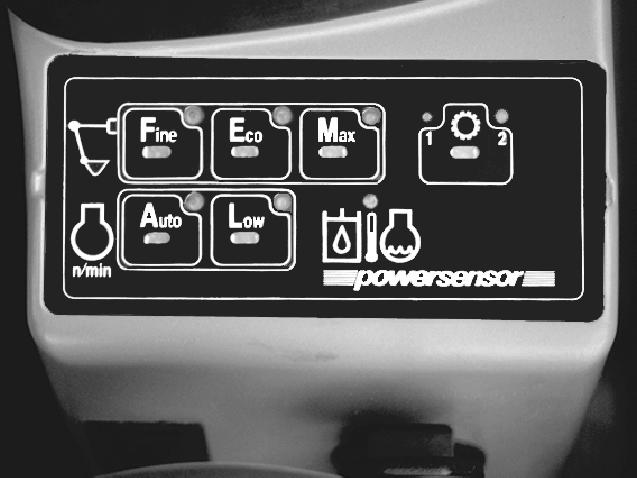

PH07328 Press the “MAX” push button on the control panel.

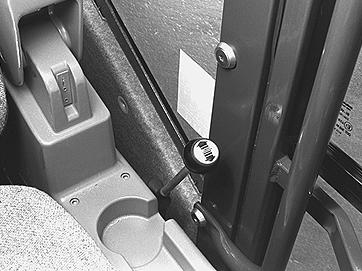

PH07600 Release the brakes using the parking/ work brake control switch.
STEP 4

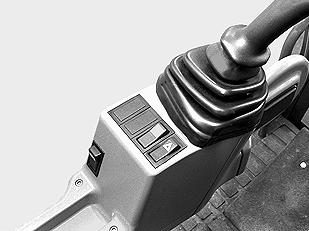

PH07533 Place the front axle locking/unlocking switches in the unlocked position (the indicator lamp on the instrument panel comes on).
174
TRIM THIS EDGE LEFT PAGE
STEP 5 STEP 6
PH07520 Move the travel control lever to the desired position.
CD99M019 Press down the travel control pedal. NOTE: Control the travel speed using the travel control lever. IMPORTANT: Wait for the machine to stop completely before changing the direction of travel (forward/reverse).
WARNING: The front axle must be unlocked for all travel operations. TRIM THIS EDGE
175
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
WORKING INSTRUCTIONS
IMPORTANT: In work position, the wheels which control the steering are at the rear. For this reason, travel and steering controls are inverted.
Backhoe attachment

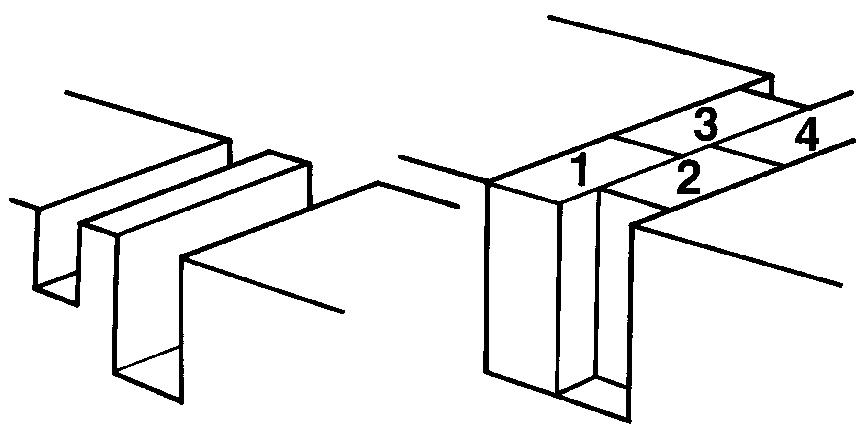

PDE0027 When laying a double pipeline, two parallel trenches can be dug at different depths (for example, for water and gas). It is advisable to move the excavator sideways to dig one trench and then the other, while remaining perfectly aligned. Two pipelines can be laid in the same trench, even if they are not at the same depth. The work should be carried out alternately as shown in the diagram. Move the excavator by a distance equal to the width of the bucket to prevent bucket offset and dig a perfectly straight trench.

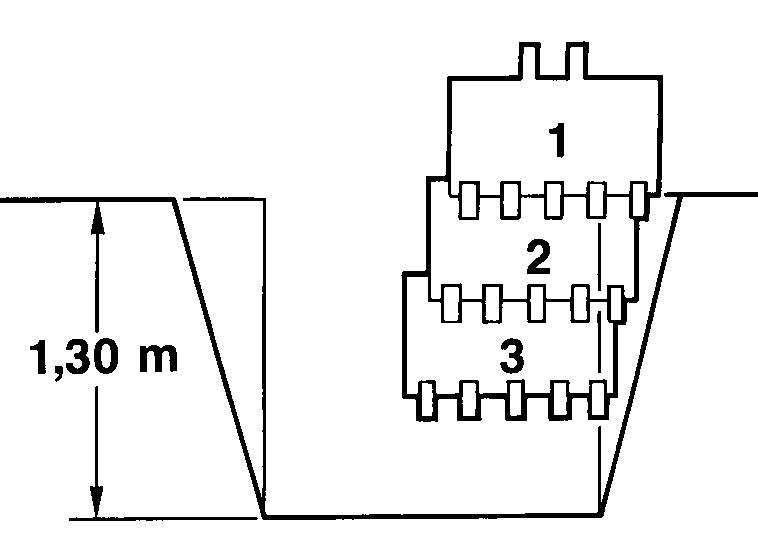

PDE0028 To dig trenches between 1.00 m and 1.30m in depth (beyond this depth they have to be shored), the trench must be opened in a V-section to prevent caving in. To do this, first open by following the center line, then gradually moving from the center line, trim the trench to obtain a V-section.

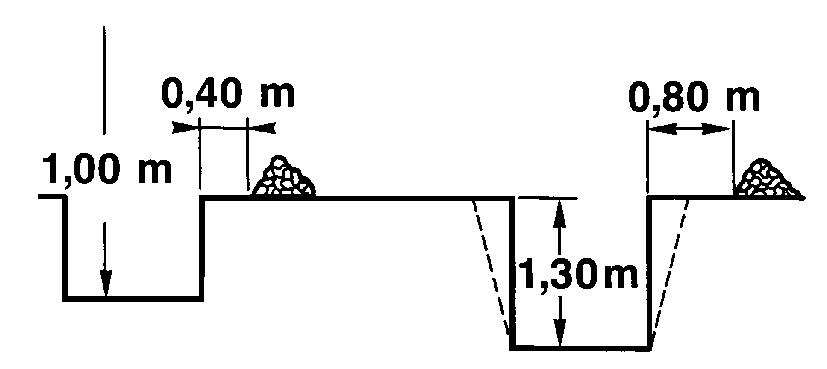

PDE0029 When opening a trench, leave one side free to store tools or material. Dump the spoil on the other side, leaving a space of 0.40 m between the spoil and the edge of the trench. If the trench depth is between 1.00 m and 1.30 m, increase this space to 0.80 m, so that the trench can be opened in a V-section.
176
TRIM THIS EDGE LEFT PAGE

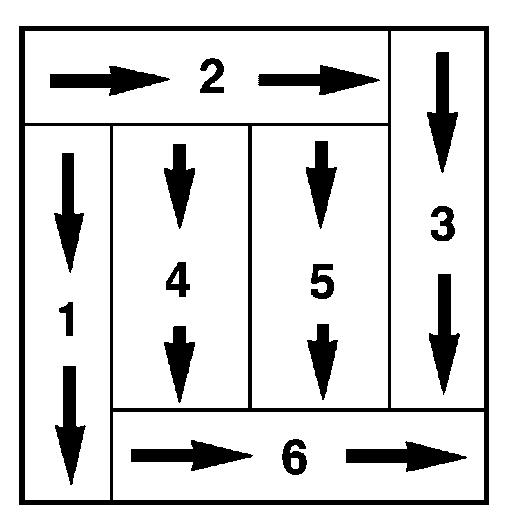

PDE0030 To excavate (a basement, for example), do the corners first. Follow the sequence shown in the diagram. Complete the final side and final corner last, when exiting the excavation.

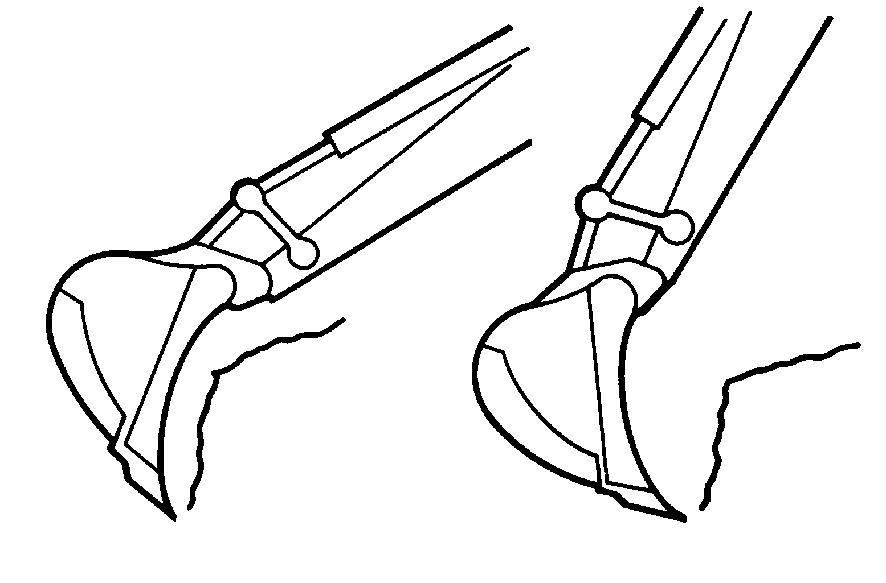

A B
(A) WRONG (B) RIGHT
PDE0031
It is important to position the teeth correctly. For best performance and to prevent breaking the teeth, cut the ground without tearing it.

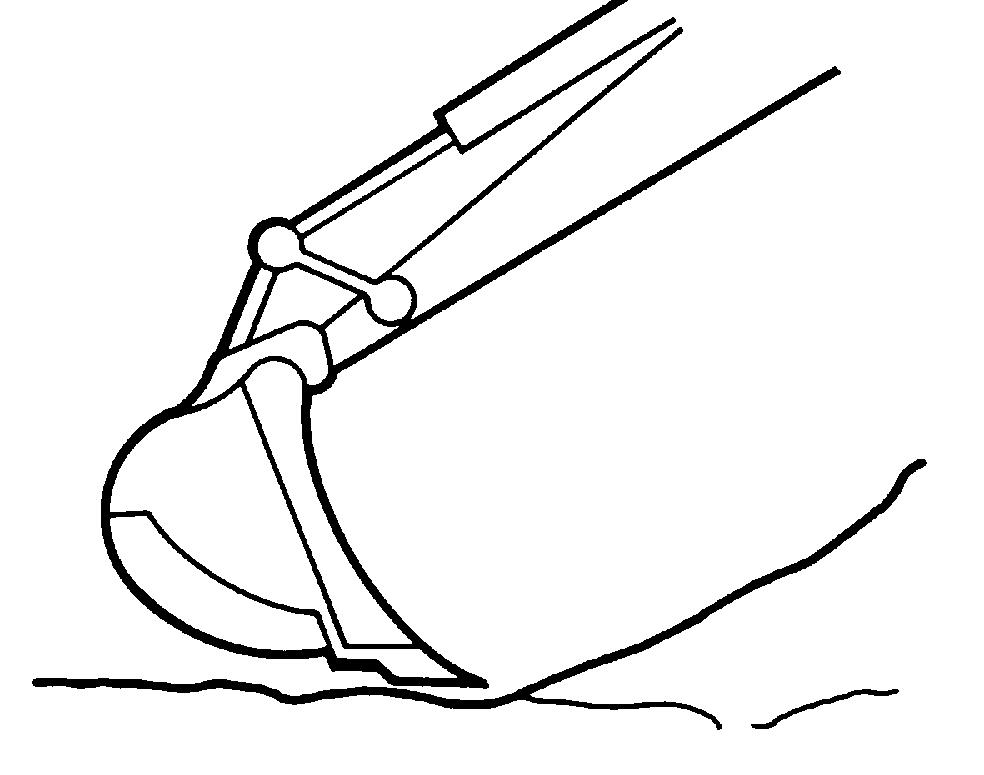

PDE0032 For best backhoe performance, begin by positioning the teeth correctly. Close the bucket as soon as it begins to move so as to place the teeth in horizontal position. The teeth, not the bucket, must rest on the ground, to prevent bumping and to ensure that all the force is on the teeth.
PDH0101 For earthmoving, the bucket must be filled over a length of ground equal to the length of the dipper. It would be a waste of time to work over a greater or shorter distance. TRIM THIS EDGE
177
TRIM THIS EDGE RIGHT PAGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE

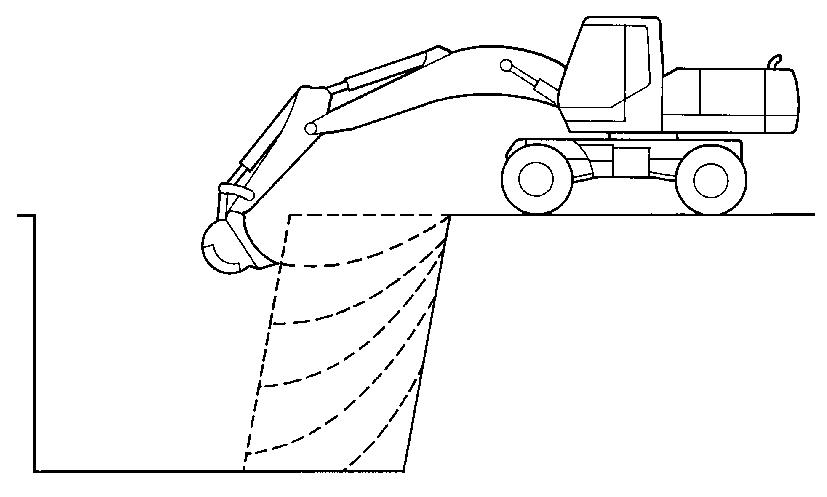

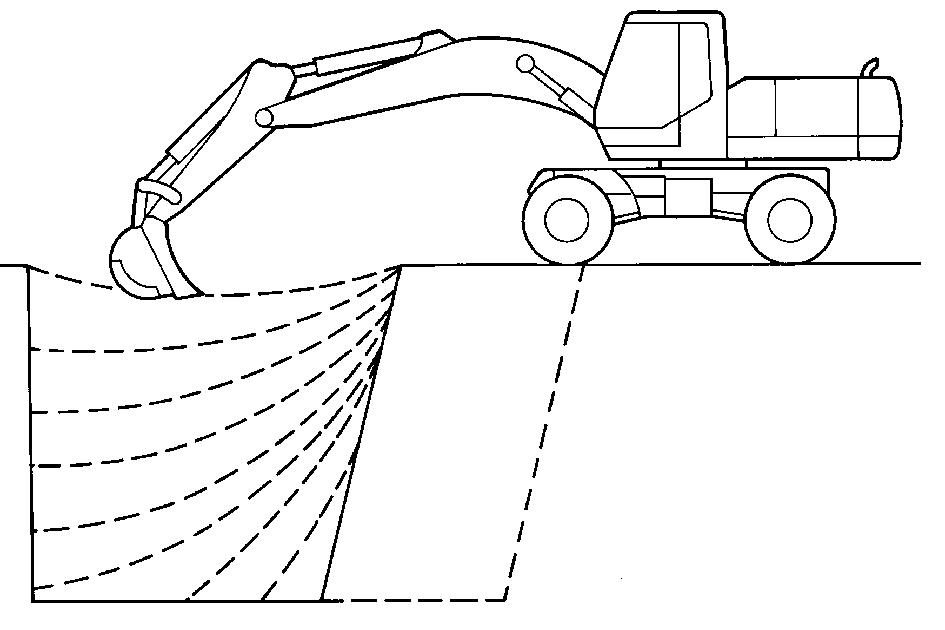

PDH0102 The results will be better if the beds are removed successively. Make sure that the teeth are in the correct position from the start. The thickness of the beds will depend on the firmness of the ground. It is important to synchronize the movements of the boom, dipper and bucket to achieve perfectly horizontal excavations and trench bottoms. As soon as they begin to move, extend the dipper and lower the boom. Close the bucket and retract the dipper, while at the same time watching the position of the teeth to prevent the bucket from scraping against the ground. Keep raising the boom until the dipper has reached the vertical position. When the dipper has passed the vertical position, the bucket should be opened progressively to keep it flat and the boom should be lowered. To facilitate earthmoving operations with the backhoe, follow these tips: Always place the cab beside the truck to be loaded or any obstacle that may be there (for better working visibility). Then, begin work beside the truck to clear the ground for the swing movements which will follow. The cycle time will be shorter since you will not have to lift the bucket over the ground which is still in place.
Clamshell attachment

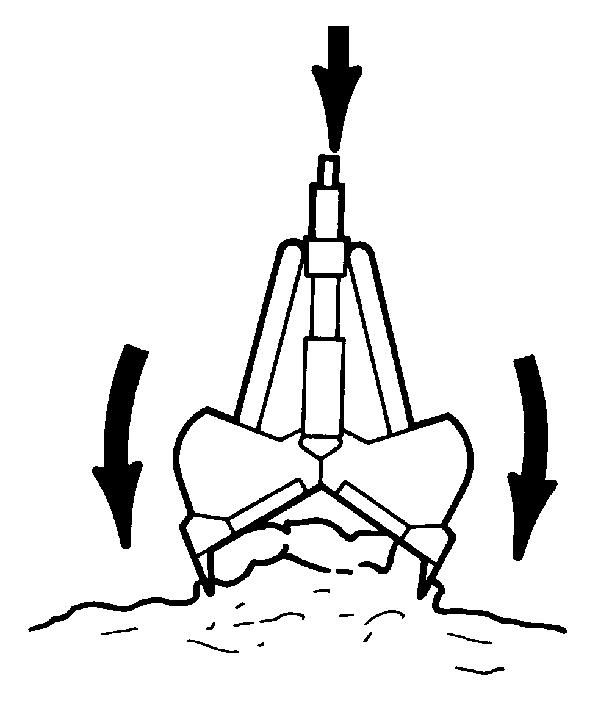

PDE0035 The clamshell has the special feature of being able to penetrate the ground while closing. The cylinder which operates the shells prevents the clamshell from rising during closure, so that the clamshell is filled quickly and completely.
PDE0036 To dig a basement (or any other type of excavation), it is important to start at the corners, but since the clamshell, unlike the backhoe, can swing, there is no need to dig the area in a set sequence. The sequence shown in the diagram should only be used as a guide. The operator may need to adopt other working methods, depending on the truck position, whether or not there is a slope leading to a garage and the size and shape of the excavation to be dug.
