OPERATING THE DOZER BLADE/STABILIZERS FROMTHE OPERATOR’S COMPARTMENT (P2ALversion) with independent dozer blade/stabilizers

STEP 2 STEP 4

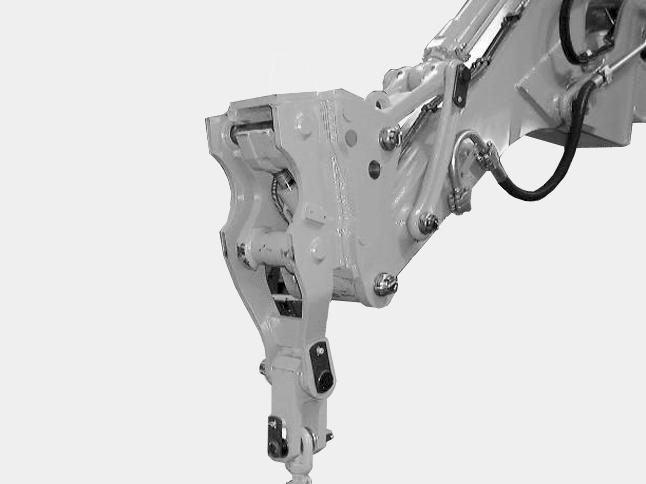

CD00D002 Retract the bucket cylinder rod as far as possible. Stop the engine and remove the starter switch key.

STEP 3

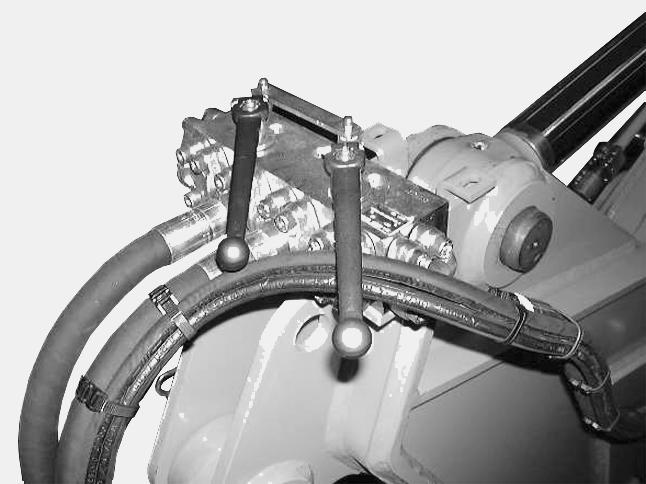

CD00A010 Take the bucket or clamshell selector valve levers out of the tool box and install them on the selector valve.

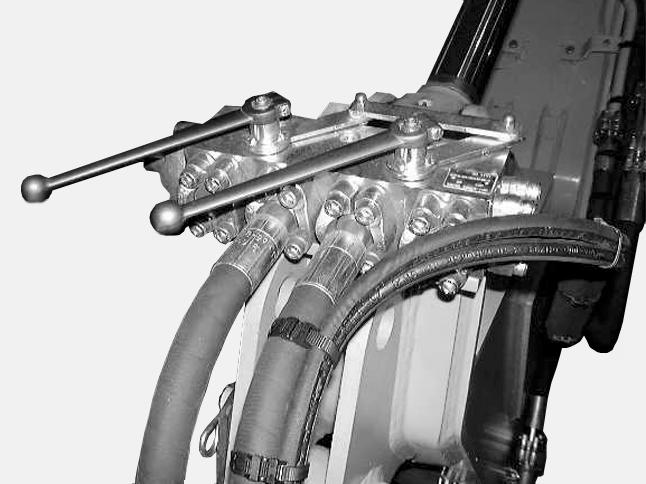

CD00A011 Turn the levers to the left, in closed position, then remove the levers and put them back in the tool box. NOTE: The quick coupler can work efficiently with hydraulic hammers, but too long periods of such work should be avoided. When you use a hydraulic hammer, you must always orientate the hammer towards the machine and never use it as a lever, since all stresses would be imposed on the quick coupler hydraulic cylinder. The quick coupler is not designed to be subjected to prolonged excessive vibration. We therefore recommend you to remove the quick coupler to reduce the risk of needless premature wear, failures or breakage. TRIM THIS EDGE

149

TRIM THIS EDGE RIGHT PAGE

Alt= to hide template informationAlt+ to display template information

Template Name: OM_1_colTemplate Date: 1994_04_29

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE

ELECTRIC TRAVEL (optional)

IMPORTANT: Use of the electric travel control is strictly forbidden during road travel.

STEP 1 Selecting travel direction STEP 3

PH07520 2

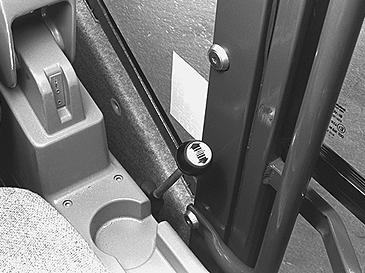

Tilt the travel control lever forwards. NOTE: Travel speed increases progressively as the lever is pushed forward.

STEP 2

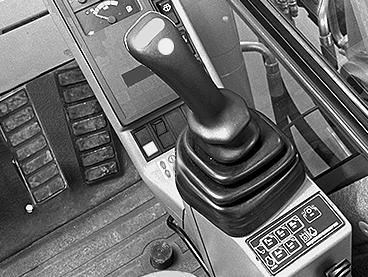

CD99N020 Press the switch to select forward travel. The green indicator lamp (2) lights up.

2 1

CD99N020 Tilt switch (1) forwards. The green indicator lamp (2) lights up and forward travel is automatically selected. 3

CD99N021 Press the switch to select travel in reverse. The red indicator lamp (3) lights up. NOTE: In normal travel position, the operator’s compartment is over the front wheels. IMPORTANT: If the steering wheels are at the rear (in working position) the direction of travel will be invested.

150

TRIM THIS EDGE LEFT PAGE

STEP 4

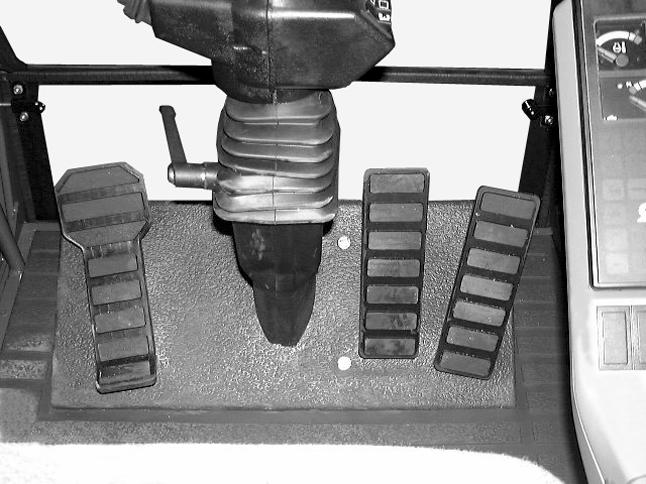

CD99M019 Machine travel speed depends on the extent to which the travel control pedal is pressed down. NOTE: Travel speed also depends on the speed range which is selected on the control panel. See “Control panel” on the “Controls/Instruments/Accessories” Section. IMPORTANT: It is mandatory to wait for the machine to come to a complete halt before changing direction of travel. TRIM THIS EDGE

151
