TOWING THE MACHINE
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
CAB REMOVAL AND INSTALLATION
Removal
STEP 3
Tools required
-One 10 mm wrench for hexagonal head screws -One 22 mm wrench for hexagonal head screws -Suitable lifting equipment NOTE: The weight of the cab is 295 kg.
STEP 1
Park the machine on flat, level ground.
STEP 2

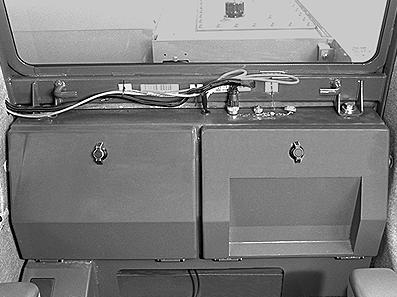

PH07911 Disconnect the electrical power point from its base. Install the protective cap on the base. Disconnect the windshield washer hose. Disconnect the cab radio aerial (if equipped).
STEP 4

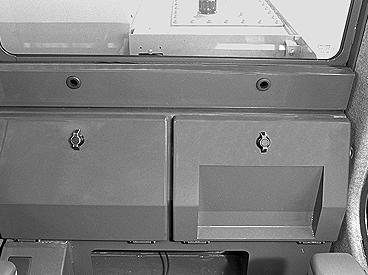

PH07909 Remove the trim located behind the seat.

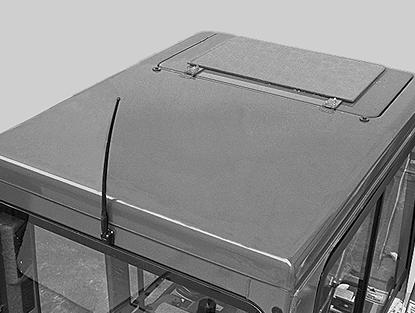

PH07824 Remove the two plastic plugs from the cab roof and install suitable lifting equipment.
136
TRIM THIS EDGE LEFT PAGE
STEP 5 STEP 8
PH07911
PH00305 Remove the four cab mounting screws. NOTE: To access the screws at the front of the cab, the floor cover must be raised.
STEP 6
Raise the cab carefully until it is completely removed from the machine.
STEP 7
Lower the cab to the ground and support it with wooden blocks.

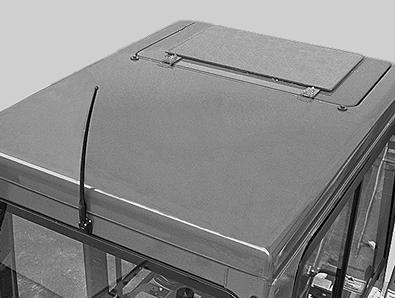

PH07824 Remove the lifting equipment and install the two plastic plugs.
Installation
Tools required
-One 10 mm wrench for hexagonal head screws -One 22 mm wrench for hexagonal head screws -Suitable lifting equipment
STEP 1

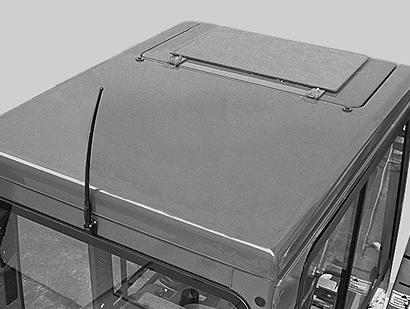

PH07824 Remove the two plastic plugs from the cab roof and install suitable lifting equipment.
137
TRIM THIS EDGE RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
STEP 2
Raise the cab carefully and position it correctly on the cab floor. IMPORTANT: Make sure that the seal located at the back of the cab is correctly in place.
STEP 3 STEP 4

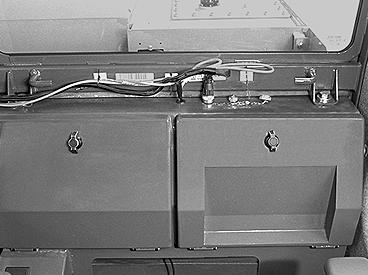

PH07911 PH07911 Reconnect the electrical power point to its base after removing the protective cap. Reconnect the windshield washer hose. Reconnect the radio aerial (if equipped).
STEP 5
PH00305 Install and tighten the four cab mounting screws to a torque of 120 Nm and reposition the floor cover correctly at the front of the operator’s compartment. Install the trim.

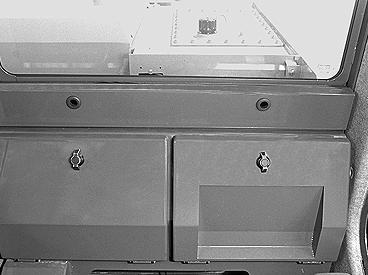

PH07909
138
TRIM THIS EDGE LEFT PAGE
STEP 6
Remove the lifting equipment and install the two plastic plugs on the cab roof.
PH07824
TOWING THE MACHINE
WARNING: Towing is a delicate operation. There is always a certain amount of risk for the operator. The manufacturer’s guarantee does not apply to accidents or problems which occur while towing.
WARNING: Never use the towing eye to tow another vehicle.
WARNING: The machine must be towed very slowly, for a short distance and only if absolutely necessary.
WARNING: A towing bar must be used for all towing operations.
IMPORTANT: Before towing, you must install the stabilizer (if equipped) and dozer blade (if equipped) lock pins. See “Road travel” in the “Job Site and Road Operation” Section. For all towing operations, the front and rear axle universal joints must be uncoupled. TRIM THIS EDGE
