OPERATOR’S SEAT
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
Operator’s compartment fan (optional)

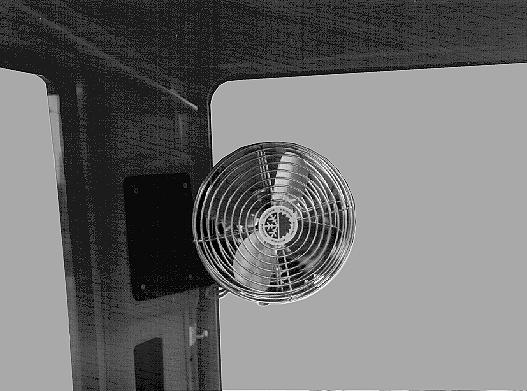

CP95N001 Located on the rear right-hand side of the operator’s seat, the fan is controlled by a three-position switch (low, off, high) located on the bracket. To use the fan, the electric cable must be inserted into the cigarette lighter socket.
Articulated boom
Press the right-hand side of the button, the hom sounds. Press the left-hand side of the button, the boom closes.
Adjustable boom
See “Adjusting the hydraulically locking adjustable boom” in the “Maintenance and Adjustments” Section.
Pilot system cancellation control switch (specific tocertain countries)

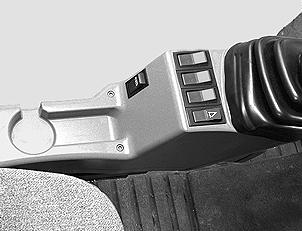

PH07604B This control switch is located on the lefthand control arm and is used when driving on the road. When this control switch is operated, it is impossible to move the stabilizers, the dozer blade (if equipped) or the attachment and the indicator lamp on the instrument panel comes on.

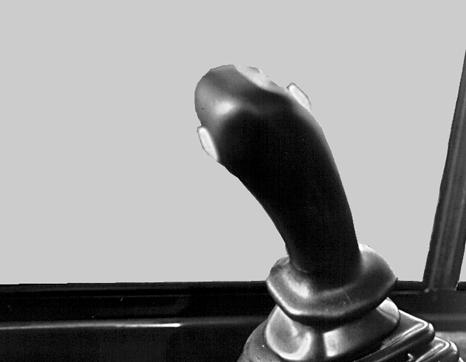

CD99N012 Located on the end of the right-hand control lever, this push button enables the articulated or adjustable boom to be manoeuvred (whichever is equipped).
80
TRIM THIS EDGE LEFT PAGE
Air conditioning controls (optional)

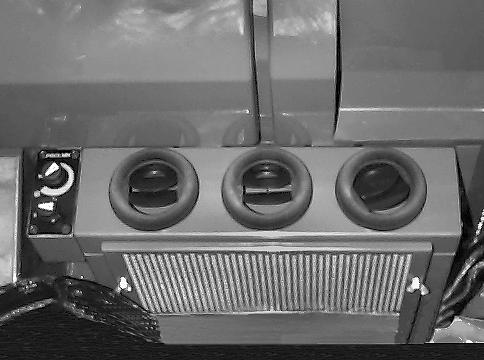

The air conditioning controls are located on the rear right-hand side of the operator’s seat.
CD98D030 This control is used to select the desired blower speed. Position “0”: Off Position “1”: 1st speed Position “2”: 2nd speed Position “3”: 3rd speed

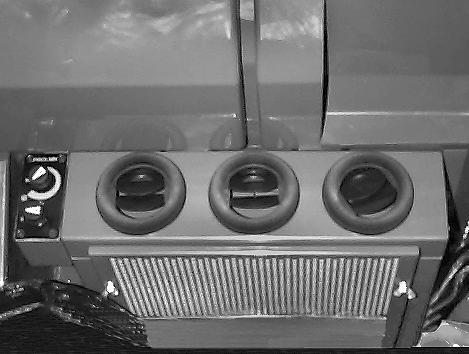

CD98D030 The air vents control the direction of air flow.
IMPORTANT: When using the air conditioning, the air vents must be in the open position.
CD98D030 This control is used to adjust the temperature. Turn the button to obtain the desired temperature. IMPORTANT: When using the air conditioning, all cab windows, the windshield and the cab door must be closed.

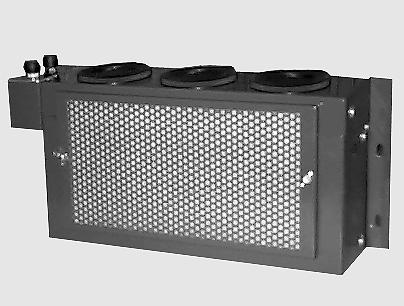

CD98D024 To access the dust filter, remove the two wing nuts and then remove the front panel. NOTE: To ensure proper functioning and full effectiveness of the air conditioning system, it must be used at least once a week, even if only for a short time. For maintenance of the air conditioning system components, see “Air conditioning” in the “Maintenance/Adjustments” Section.
81
TRIM THIS EDGE RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
Electric travel control (optional)
TRIM THIS EDGE

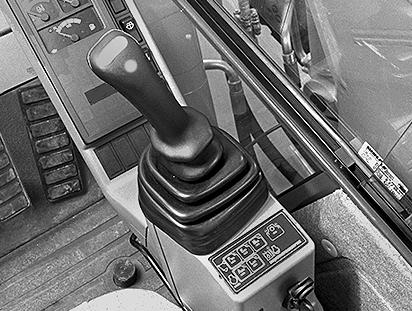

CS98M613 This control is located on top of the righthand control lever and is used to select direction of travel. See “Electric travel” in the “Operating Instructions” Section.
