Removing the CRT Board

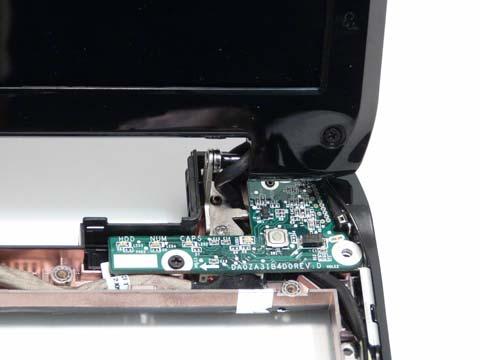

1. See “Removing the Upper Cover” on page 58. 2. Remove the single screw securing the CRT Board to the Lower Cover.

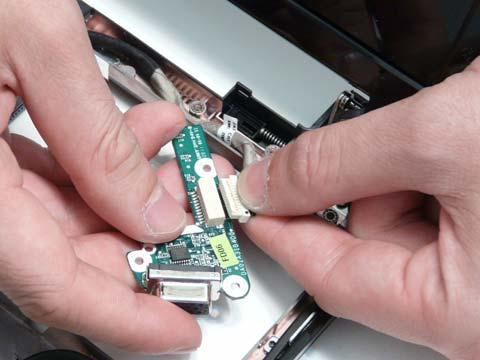

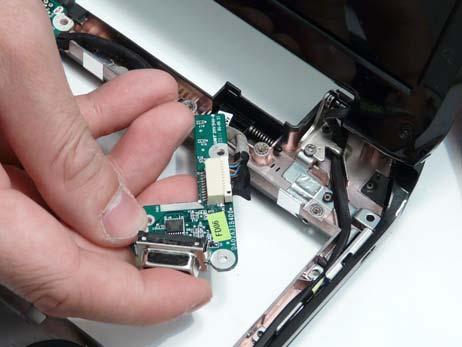

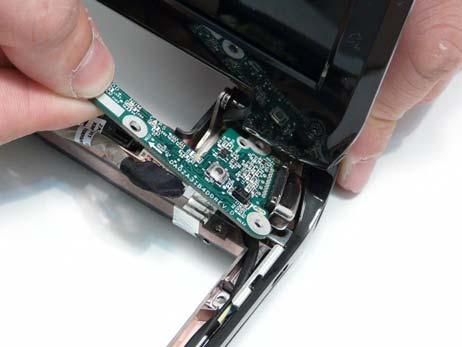

3. Lift the CRT Board left side first and turn it over to expose the CRT cable. IMPORTANT: Do not remove the board from the Lower Cover; the CRT cable is still attached.

Step

Size

CRT Board M2*5 1

Quantity Screw Type
