Jumper and Connector Locations

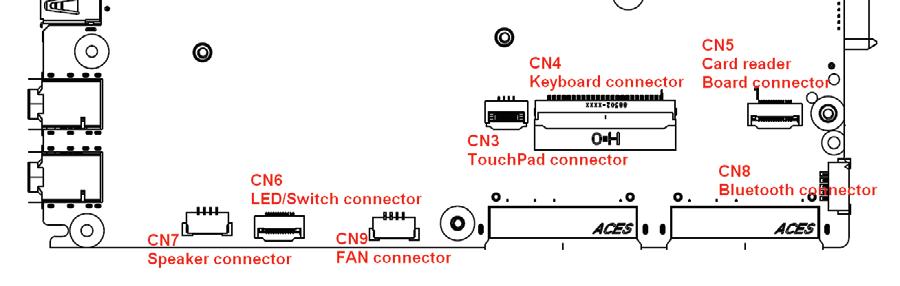

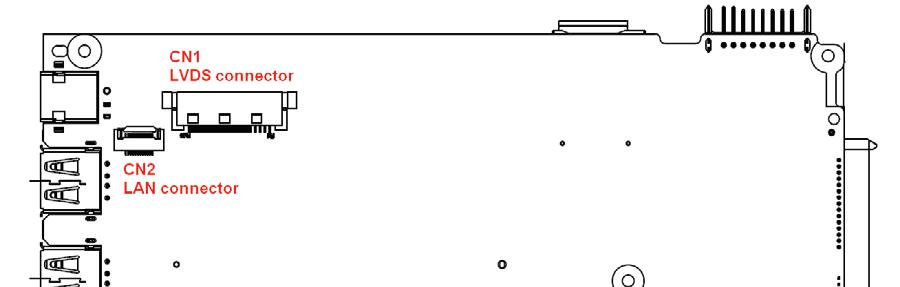

Top View

Item Description Item Description

CN1 LVDS connector CN6 LED/Switch connector CN2 LAN connector CN7 Speaker connector CN3 Touchpad connector CN8 Bluetooth connector CN4 Keyboard connector CN9 Fan connector CN5 Card reader board connector
