Bottom View

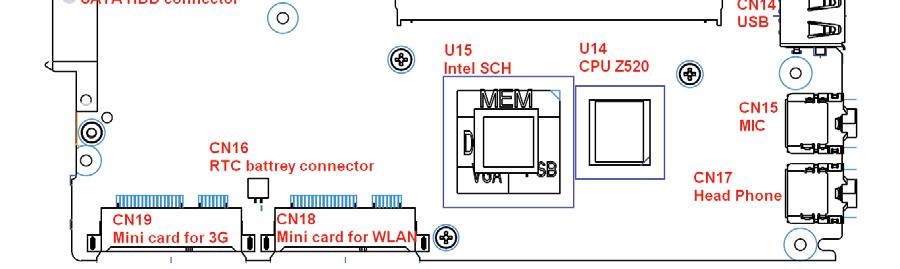

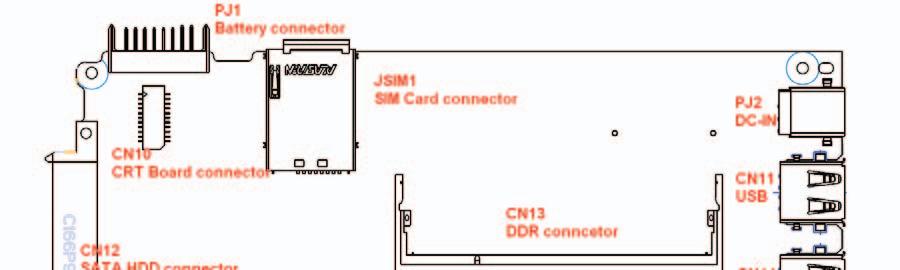

Item Description Item Description

PJ1 Battery connector CN16 RTC battery connector PJ2 DC-in connector CN17 Headphone connector CN10 CRT board connector CN18 Mini card for WLAN CN11 USB connector CN19 Mini card for 3G CN12 SATA HDD connector JSIM1 SIM card connector CN13 DDR connector U14 CPU Z520 CN14 USB connector U15 Intel SCH CN15 MIC connector
