Removing the TouchPad Bracket and Button Board

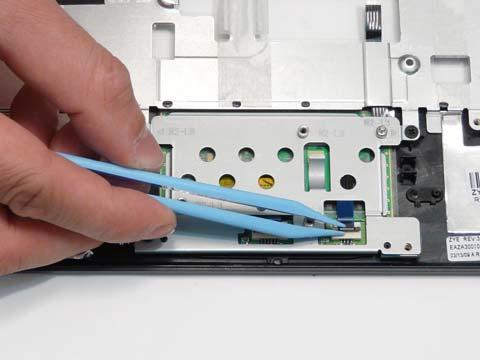

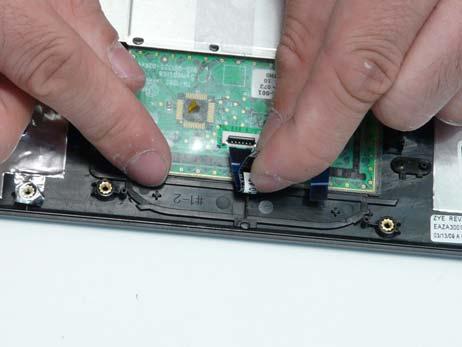

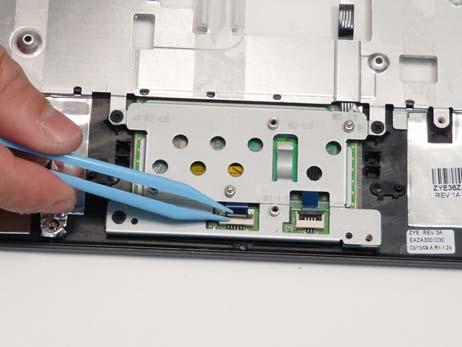

IMPORTANT: The TouchPad Board cannot be removed individually. To replace the TouchPad Board, replace the entire Upper Cover. 1. See “Removing the Upper Cover” on page 58. 2. Open the locking latches and disconnect the two FFCs from the Button Board as shown.

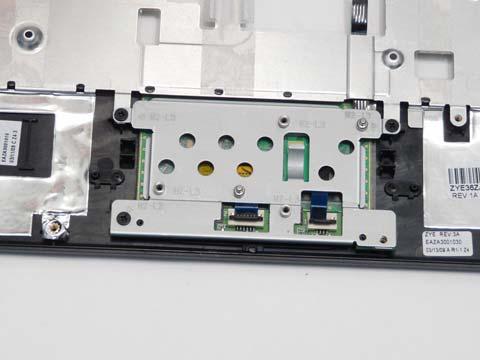

3. Remove the three screws securing the TouchPad Bracket to the Upper Cover.
Step
TouchPad Bracket
Size
M2*3 3
Quantity Screw Type

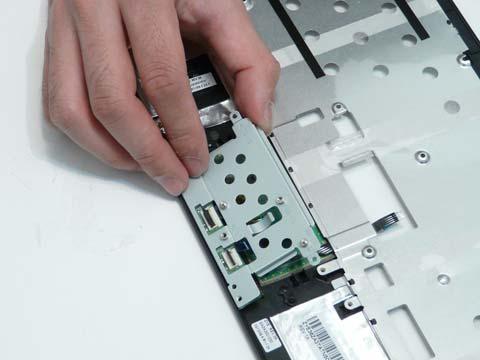

IMPORTANT: Ensure that the FFCs are disconnected before attempting to remove the TouchPad Bracket. 4. Lift the TouchPad Bracket away from the Upper Cover as shown.

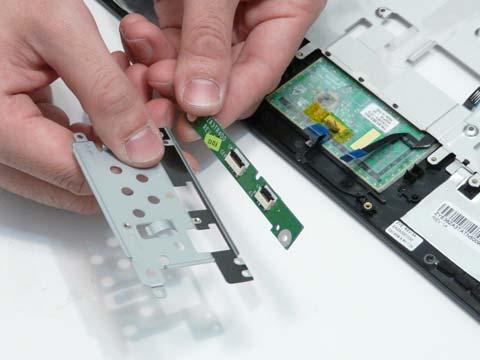

5. Turn the TouchPad Bracket over and remove the Button Board from the bracket.

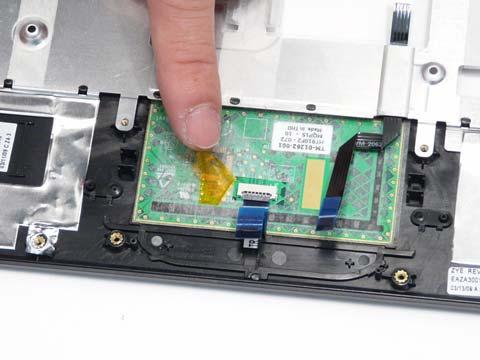

6. Remove the adhesive strip securing the TouchPad FFC in place.

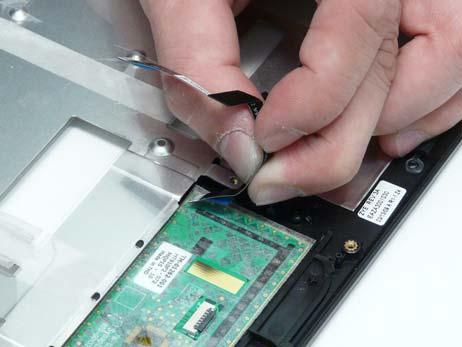

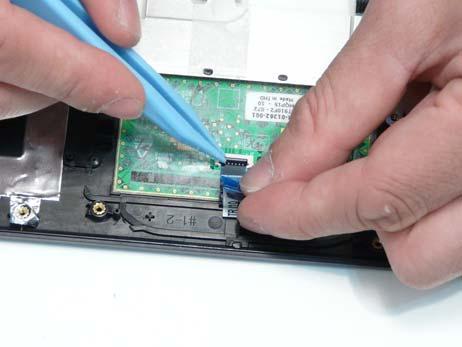

8. Turn the Upper Cover over and push the FFC through the cover as shown.

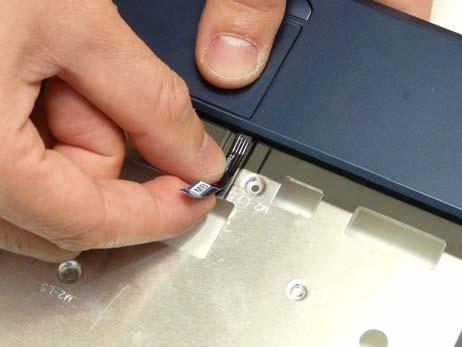

9. Turn the Upper Cover over and pull the FFC through the cover as shown. IMPORTANT: Ensure that the FFC pull tab is not torn off during removal.
