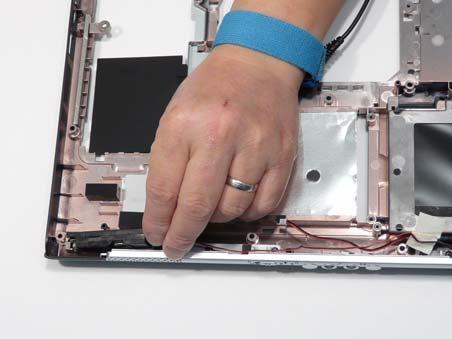

Replacing the Speaker Modules

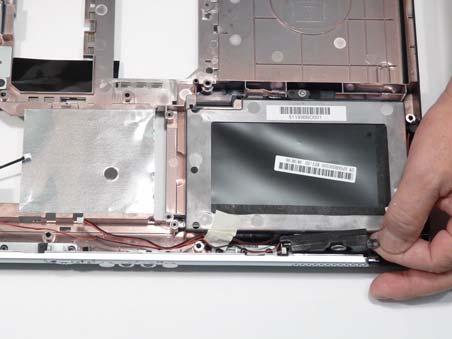

1. Place the left and right speaker modules in the chassis as shown.

2. Replace the two securing screws.

NOTE: The left and right speaker module securing screws differ slightly in length. Ensure the correct screw is used for each speaker. • Left Speaker Module (red callout): M2.5*3 • Right Speaker Module (green callout): M2.5*6

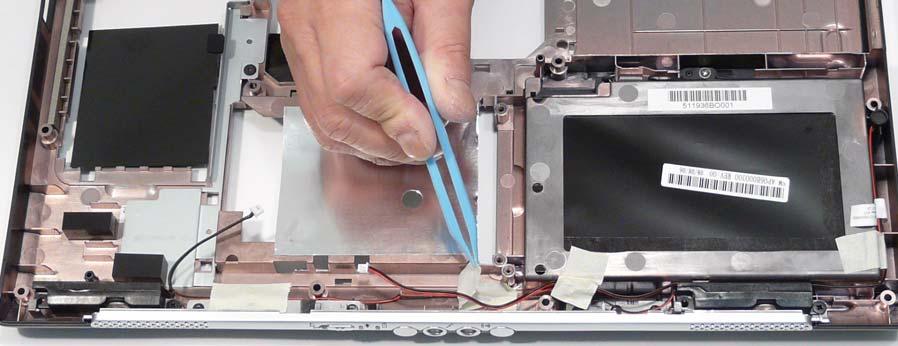

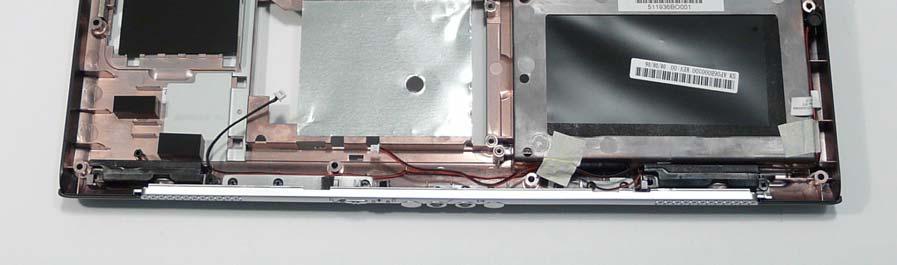

3. Run the speaker cabling along the front of the casing as shown and replace the adhesive strips.
