Top View

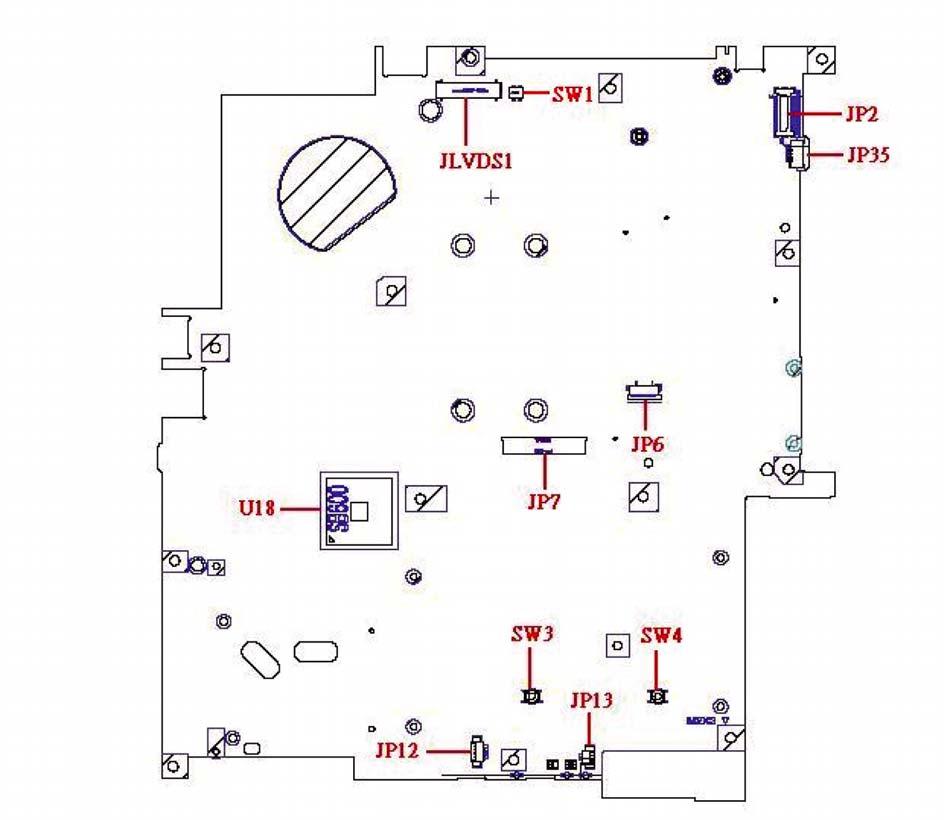

Jumper and Connector Locations

Top View

Item Description Item Description

JLVDS1 LCD Connector JP35 Camera Connector JP2 SW/B Connector SW1 LID Switch JP6 TouchPad Connector SW3 TouchPad (left) Button JP7 Internal Keyboard Connector SW4 TouchPad (right) Button JP12 Speaker Connector U18 South Bridge JP13 MIC-IN Jack
