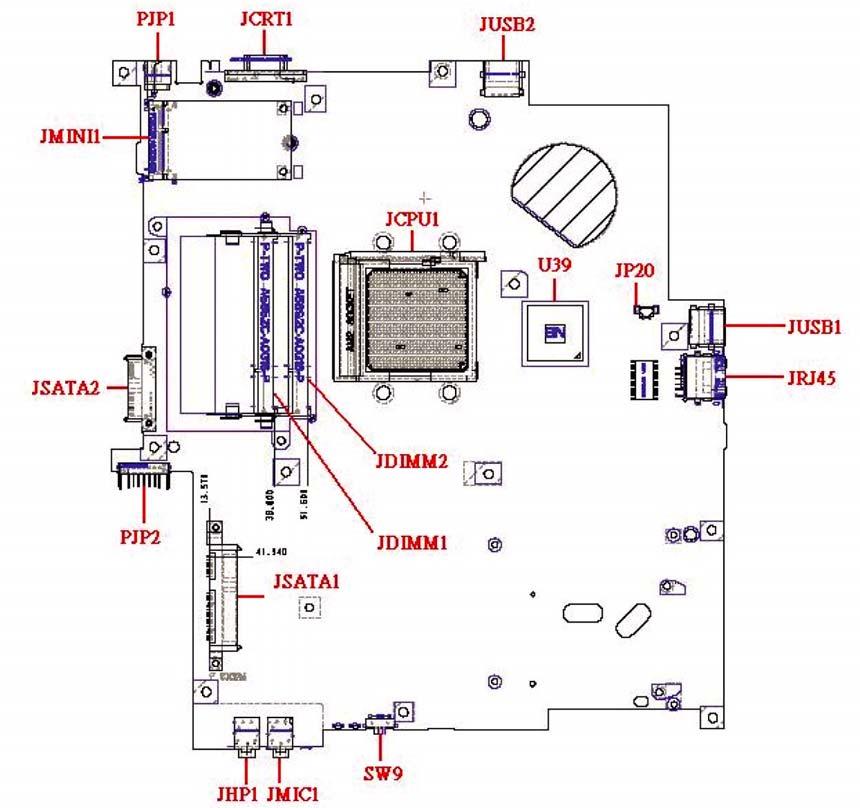

Bottom View

Item Description Item Description

JCPU1 CPU Socket JSATA1 HDD Connector JCRT1 CRT Connector JSATA2 ODD Connector JDIMM1 Memory DIMM1 Connector PJP1 AC-IN Connector JDIMM2 Memory DIMM2 Connector PJP2 Battery Connector JHP1 Head-Phone Connector SW9 Wireless SWITCH JMIC1 MIC-In Jack U39 North Bridge JMINI1 Wireless Card Connector JUSB1 USB Connector JP20 FAN1 Connector JUSB2 USB Connector JRJ-45 RJ45 Connector
