DOS Flash Utility

Perform the following steps to use the DOS Flash Utility: 1. Press F2 during boot to enter the Setup Menu. 2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move

USB HDD to position 1.

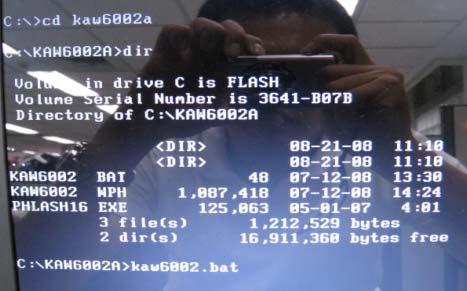

3. Execute the KAW6xxx.BAT batch file to update BIOS.

The flash process begins as shown. PhoenixBIOS Setup Utility Information Main Advanced Security Power Boot Exit

Item Specific Help

Boot priority order: 1. IDE0 : WDC WD1600BEVT-22ZCT0-(S1) 2. IDE1 : HL-DT-STDVDRAM GT10N-(S3) 3. Network Boot : Realtek Boot Agent 4. USB HDD : ABC 5. USB FDD : Use <↑> or <↓> to select a device, then press <F6> to move it up the list, or <F5> to move it down the

6. USB KEY : 7. USB CD/DVD ROM : list. Press <Esc> to escape the menu.

F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit

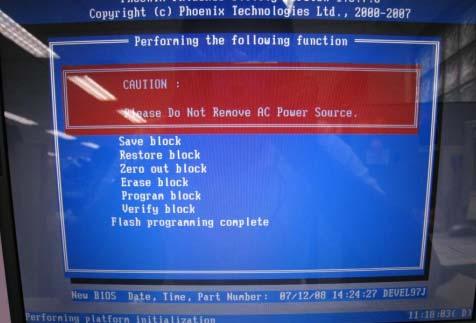

4. In flash BIOS, the message Please do not remove AC Power Source displays. NOTE: If the AC power is not connected, the following message displays.

Plug in the AC power to continue. 5. Flash is complete when the message Flash programming complete displays.
