Replacing the Bluetooth Board

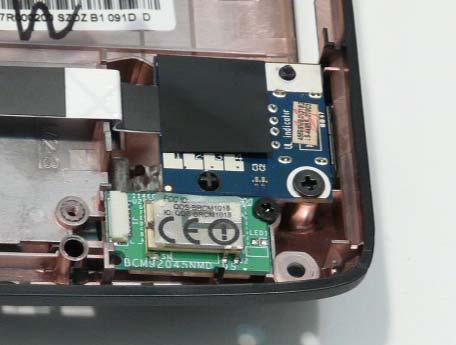

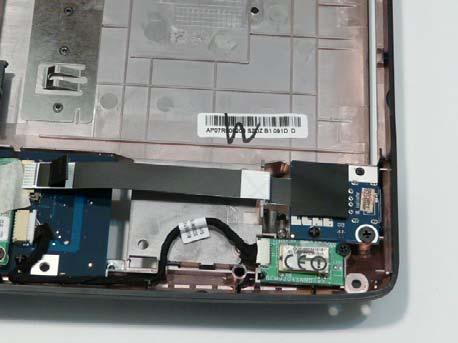

4. Ensure the locating pins is correctly seated and replace the single securing screw.

USB Board M2.5*3 1

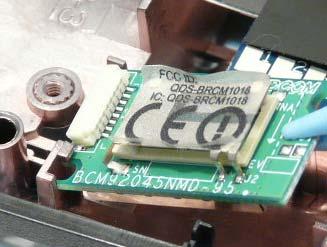

1. Insert the Bluetooth Module left side first so the board slides under the securing flange and lower it into place.

Bluetooth Module M2*3 1

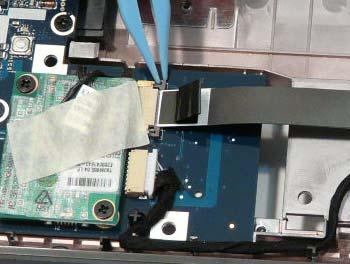

3. Reconnect the Bluetooth cable to the Mainboard and insert the cable into the cable channel on the Front

Cover.

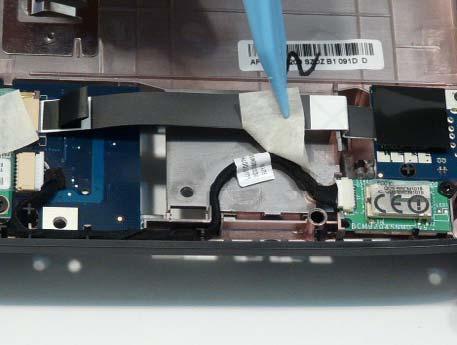

4. Reconnect the Bluetooth cable to the Bluetooth Module and secure the cable in place with the tape.
